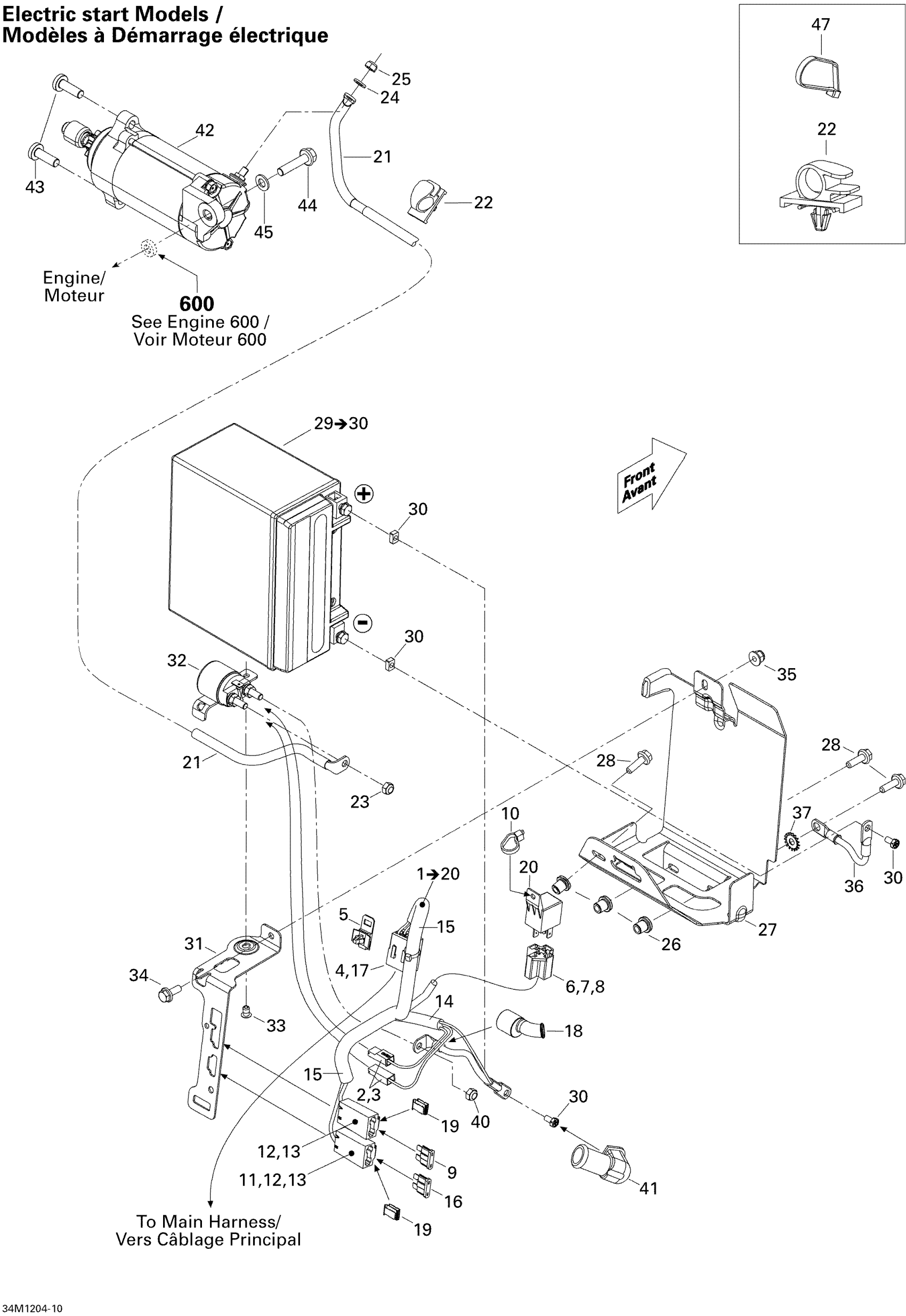

Ski-Doo Grand Touring Sport 600 XP, 2012 Battery And Starter Diagram

#

Description
Price

1

Electric Start Harness

515177102

Unavailable

2

Female Terminal

409010100

$5.46

3

Female Terminal Housing, 1 Circuit

409010400

$7.48

4

Male Terminal

515175232

$1.49

5

Housing Support

515175283

$8.43

6

Female Housing, 5 Circuits

409209900

$8.98

7

Female Terminal

561503100

Unavailable

8

Female Terminal

561503100

Unavailable

9

Fuse, 30 Amperes

410917200

$3.22

10

Tie Wrap 142 mm

293750002

$0.88

11

Female Terminal

409011600

$5.11

12

Female Terminal

409004200

$4.42

13

Fuse Holder

409004000

$7.00

14

Tubing 6 Mm 3000Mm Long

219704425

$13.14

15

Was 409901700 Tubing (9 mm)

219704399

$79.97

16

Fuse, 5 Amperes | CE

278000344

$3.22

17

Male Terminal Housing, 8 Circuits

515175817

$8.57

18

Protector Cap | XT

515175919

$16.89

19

Clip

710000992

$4.00

20

Relay | DS 650 X

710010053

Unavailable

21

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

22

Clip

515177066

$4.00

23

Elastic Stop Nut M6

232561414

$1.55

24

Flat Washer 6 mm

234061410

$1.04

25

Elastic Stop Nut M6

232561414

$1.55

26

Insert

293450275

$9.89

27

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

28

Hex. Flange Screw M6 X 20

207662044

$1.66

29

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

30

Battery Bolt Kit

250000282

$2.95

31

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

32

Starter Relay

515176501

$93.82

33

Pop Rivet 3/16"

390402200

$0.26

34

Hex. Flange Screw M6 X 16

207661644

$0.61

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Ground Wire

515176358

$26.12

37

Lock Washer Serrated M6

250200041

$0.92

40

Elastic Stop Nut M6

232561414

$1.55

41

Protector Cap

710000495

$10.14

42

Starter

515178473

$319.49

43

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

44

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

45

Flat Washer With Teflon 8 mm

250200008

$3.12

47

Tie Wrap 94 mm | 4X4

293750001

$0.83

47

Tie Wrap 142 mm

293750002

$0.88

47

Tie-Rap 173 mm

293750009

$0.85

47

Tie-Rap 180 mm

414115200

$0.09

47

Tie Wrap 368 mm

293750008

$0.85
