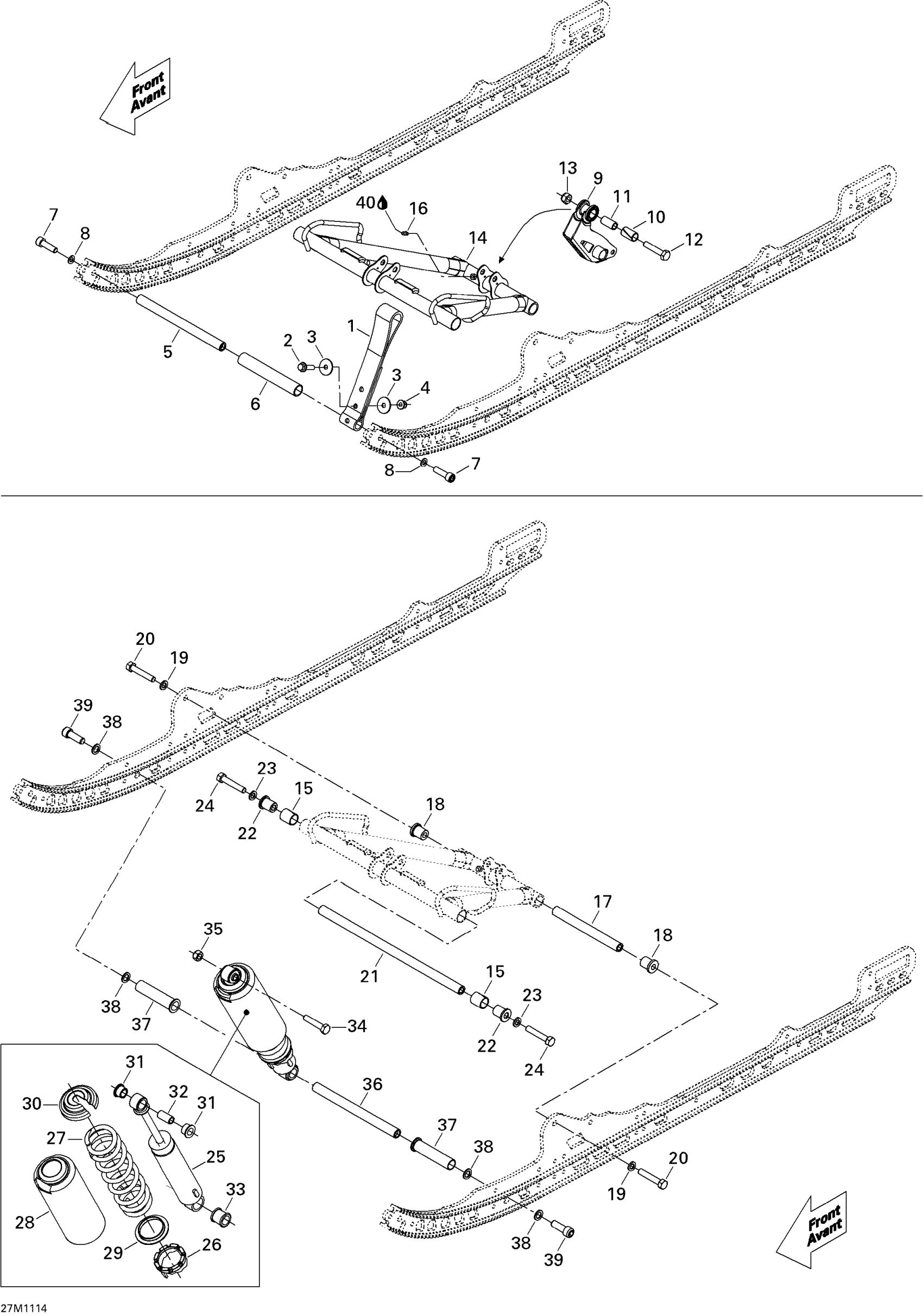

Ski-Doo Grand Touring Sport 600 XP, 2011 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.97

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

3

Flat Washer

224081301

$0.86

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Axle Strap

503191260

$29.20

6

Spacer

503196943

$7.58

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

8

Washer

503189564

$0.72

9

Rocker

503192211

$78.43

10

Bushing

503193037

$15.35

11

Bushing | Includes 240d to 240d1

503189282

$4.18

12

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Front Arm | Includes 2000a to 2000b

503191752

$359.97

15

Extended Bushing

503191556

$5.71

16

Grease Fitting

408200700

$2.80

17

Lower Shaft

503191279

$27.66

18

Bushing

503189324

$11.17

19

Washer

503192496

$0.75

20

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

21

Upper Shaft

503191215

$36.12

22

Bushing

503191262

$13.60

23

Washer

503189564

$0.72

24

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

25

Center Shock

503192266

$157.66

26

Adjustment Cam

505073625

$12.18

27

Black, Spring

503191882

$59.97

28

Protector

503193663

$35.35

29

Spring Guide

503191872

$2.18

30

Spring Stopper

706200881

$10.30

31

Urethane Bushing

503189117

$6.88

32

Bushing | Includes 240d to 240d1

503189282

$4.18

33

Bushing

503189271

$10.46

34

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

35

Elastic Locking Nut M10 X 1.5

233601416

$1.68

36

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

37

Center Bushing

503191259

$8.97

38

Washer

503189276

$3.20

39

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

40

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
