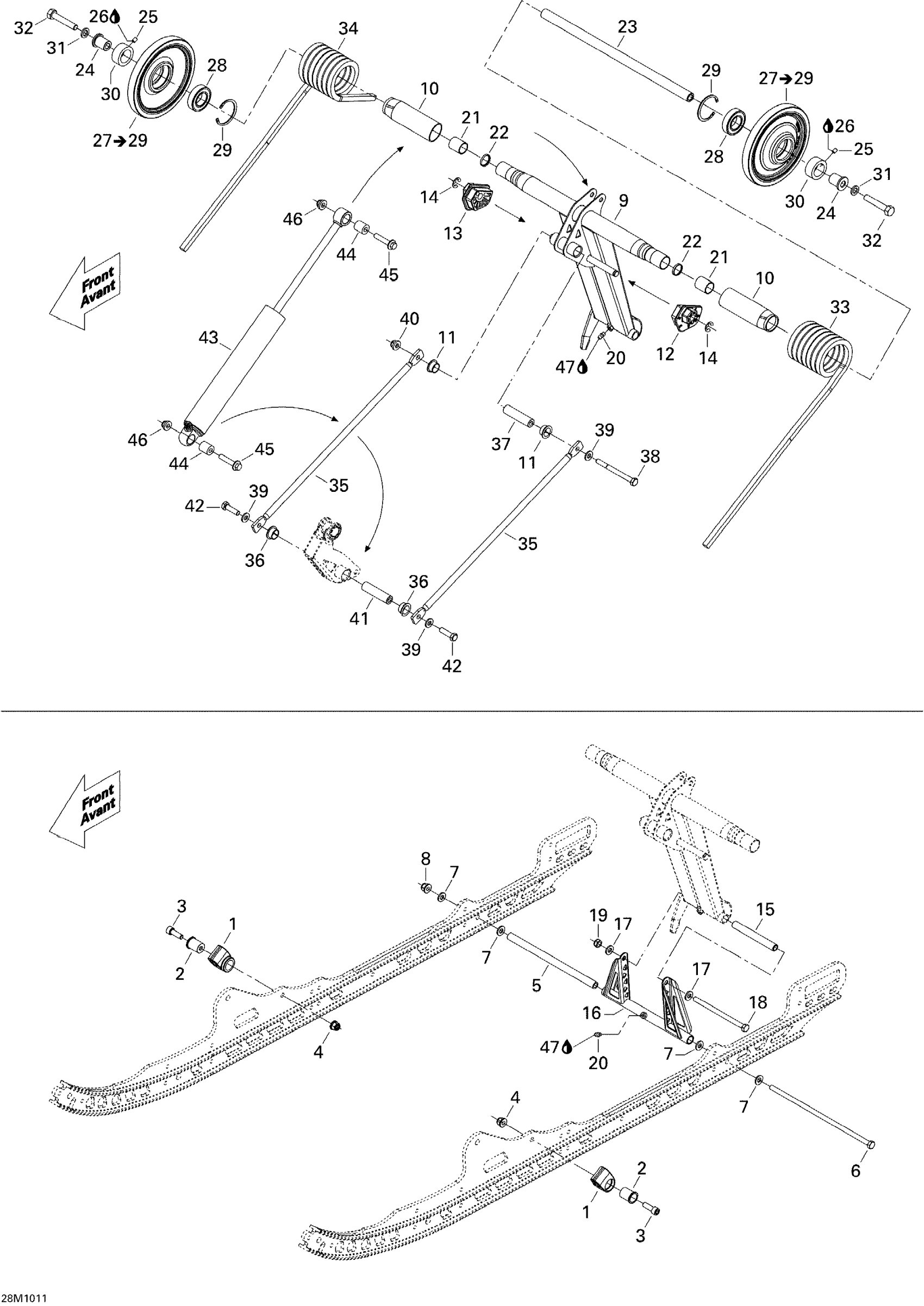

Ski-Doo Grand-Touring Sport 600, 2010 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Pivot Arm Axle

503189156

$20.74

6

Bolt M8 X 248mm

503192440

$29.97

7

Washer

503189157

$3.20

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$96.89

10

Bushing

572080700

$15.26

11

Swivel Bushing

503191555

$5.71

12

LH Cam Adjuster

503191565

$13.95

13

RH Cam Adjuster

503191566

$13.95

14

E-Circlip

293370013

$0.62

15

Upper Axle, Pivot Arm

503144300

$11.98

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

17

Washer

503189157

$3.20

18

Bolt M8, Short

732601197

$15.06

19

Hex. Elastic Stop Nut M8

232581414

$0.47

20

Grease Fitting

408200700

$2.80

21

Extended Bushing

503191556

$5.71

22

Washer

503191651

$7.49

23

UPPER SHAFT - Call your local BRP dealership

503192222

Unavailable

24

BUSHING - Call your local BRP dealership

503192223

Unavailable

25

Socket Set Screw M6 X 8

206260844

$1.25

26

Loctite 243, 10 ml

293800060

$20.77

27

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

28

Ball Bearing

503193548

$16.89

29

Retaining Ring

415129780

$13.88

30

Retaining Ring

503168800

$12.65

31

Washer

503189276

$3.20

32

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

33

Black, LH Spring Square

503192271

$78.43

34

Black, RH Spring Square

503192270

$78.43

35

Linkage Rod

503192255

$41.51

36

Swivel Bushing

503191555

$5.71

37

Axle Bar (Long)

503190643

$15.35

38

Hex. Screw M8 X 90

207089044

$2.82

39

Washer

503189157

$3.20

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

BAR AXLE - Call your local BRP dealership

503192139

Unavailable

42

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

43

Rear Shock HPG Seal

503193190

$238.43

44

Bushing

414936000

$11.55

45

Hex. Flange Screw M8 X 40

207684044

$1.25

46

Hex. Flange Elastic Nut M8

233281414

$1.14

47

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
