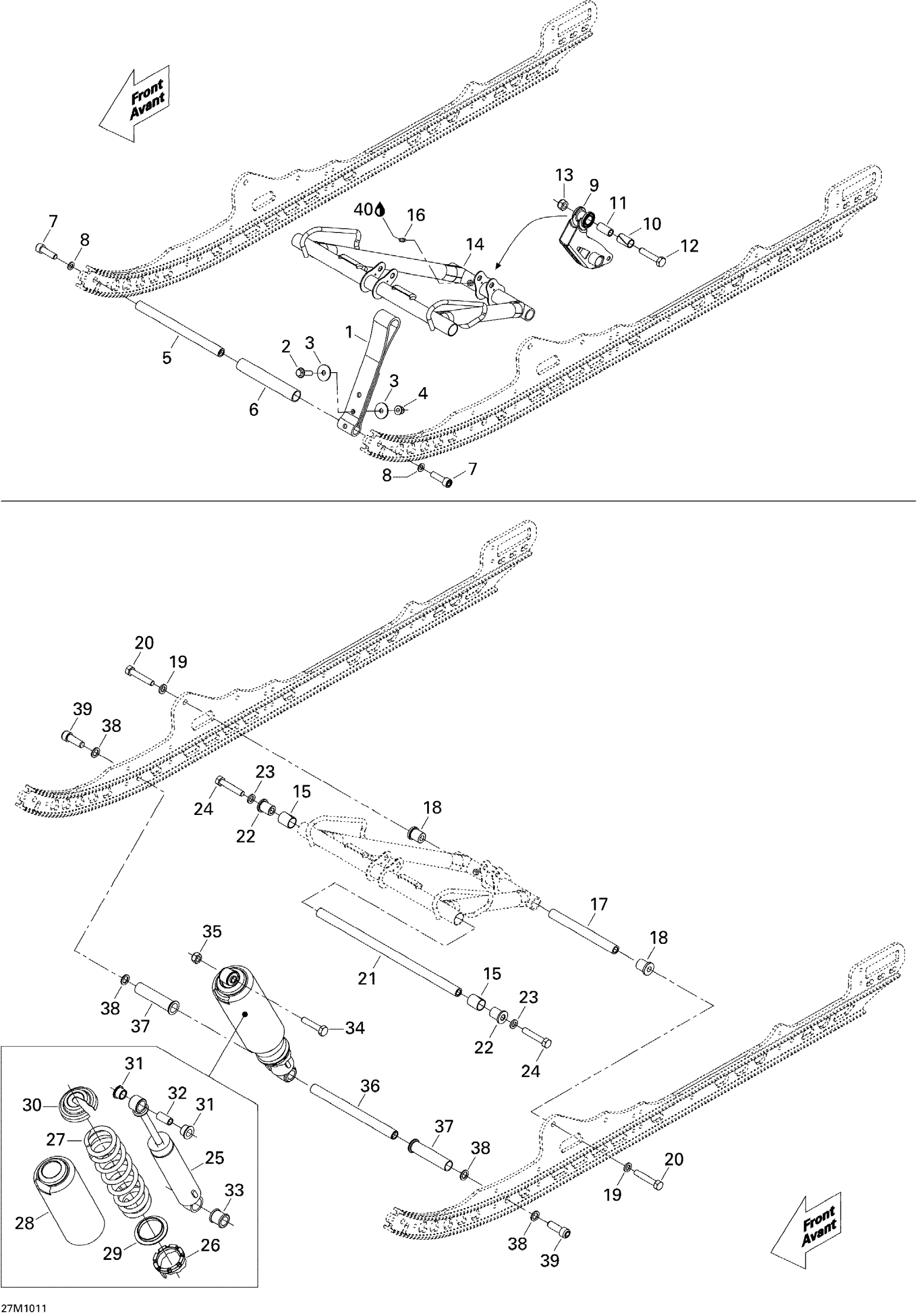

Ski-Doo Grand-Touring Sport 600, 2010 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$21.99

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Flat Washer

224081301

$1.49

4

Hex. Flange Elastic Nut M8

233281414

$1.49

5

Axle Strap

503191260

$31.99

6

Spacer

503191448

$12.49

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

Washer

503189564

$1.49

9

Rocker

503192211

$85.99

10

Bushing

503193037

$16.18

11

Bushing | Includes 240d to 240d1

503189282

$4.34

12

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

13

Elastic Locking Nut M10 X 1.5

233601416

$1.69

14

Front Arm | Includes 2000a to 2000b

503191752

$370.99

15

Extended Bushing

503191556

$7.83

16

Grease Fitting

408200700

$3.59

17

Lower Shaft

503191279

$29.99

18

Bushing

503189324

$14.15

19

Washer

503189564

$1.49

20

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

21

Upper Shaft

503191215

$39.99

22

Bushing

503191262

$15.79

23

Washer

503189564

$1.49

24

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

25

Center Shock

503192266

$164.49

26

Adjustment Cam

505073625

$13.49

27

Black, Spring

503191882

$63.99

28

Protector

503193663

$38.99

29

Spring Guide

503191872

$2.39

30

Spring Stopper

706200881

$13.49

31

Urethane Bushing

503189117

$8.19

32

Bushing | Includes 240d to 240d1

503189282

$4.34

33

Bushing

503189271

$13.99

34

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

37

Center Bushing

503191259

$11.99

38

Washer

503189276

$3.39

39

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.99

40

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
