Description

Price

11

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$1.49

13

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.49

15

Flat Washer

224061201

$1.49

21

Torx Truss Screw M6 X 16

250000721

$1.69

24

Hex Torx Truss M8 X30

250000745

$3.29

29

Flat Washer 8 mm

250200128

$4.49

31

Nut Welded, M6

293100003

$9.29

34

Pop Rivet 3/16"

293150100

$1.49

38

Tie Wrap 368 mm

293750008

$1.49

41

Pop Rivet 3/16”

390410100

$1.49

44

Black, Dart

414644300

$1.49

47

Upper Backrest Axle

510004377

$45.99

48

Rubber Shim

510004378

$11.49

49

Washer

510004379

$10.99

53

Passenger Handle Trim

510006602

$13.99

57

Foam Support

510004423

$39.99

59

Handle Grip

510004449

$12.99

65

Front Seat Base

510004775

$95.99

66

Front Seat Foam

510004777

$224.99

69a

Backrest Foam

510004782

$129.99

69b

Backrest Cover | Not Shown

510005309

$179.99

71

Rear Seat Foam

510004791

$299.99

90

Seat Cover

510005181

$224.99

126

Rear Seat Cover

510005399

$234.99

134

Seat Base Ass'y | Includes 20a to 20a3

510005535

$429.99

150

LH Arm, Black

510005538

$28.99

148

RH Arm, Black

510005539

$28.99

145

RH Handle Ass'y | Includes 140 to 140,02

510005851

$294.99

146

LH Handle Ass'y | Includes 150a to 150a4

510006713

$294.99

214

Rubber Stopper

708000759

$4.29

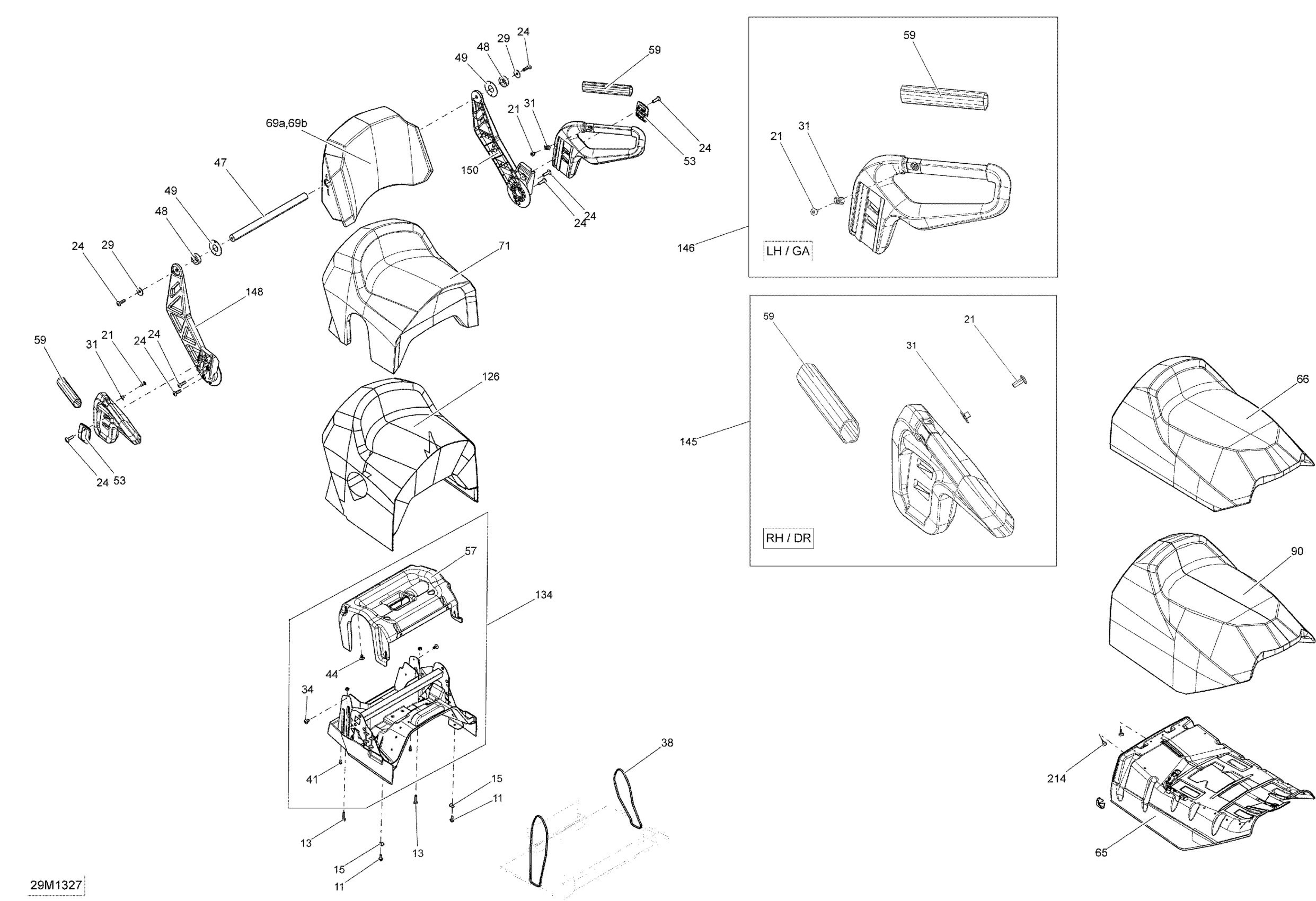

Ski-Doo GRAND TOURING SPORT 550F XP, 2013 Seat Diagram

Hex. Screw M6 X 16, Scotch Grip | Europe

Hex. Flange Screw M6 X 30, Scotch Grip

Flat Washer

Torx Truss Screw M6 X 16

Hex Torx Truss M8 X30

Flat Washer 8 mm

Nut Welded, M6

Pop Rivet 3/16"

Tie Wrap 368 mm

Pop Rivet 3/16”

Black, Dart

Upper Backrest Axle

Rubber Shim

Washer

Passenger Handle Trim

Foam Support

Handle Grip

Front Seat Base

Front Seat Foam

Backrest Foam

Backrest Cover | Not Shown

Rear Seat Foam

Seat Cover

Rear Seat Cover

Seat Base Ass'y | Includes 20a to 20a3

LH Arm, Black

RH Arm, Black

RH Handle Ass'y | Includes 140 to 140,02

LH Handle Ass'y | Includes 150a to 150a4

Rubber Stopper
