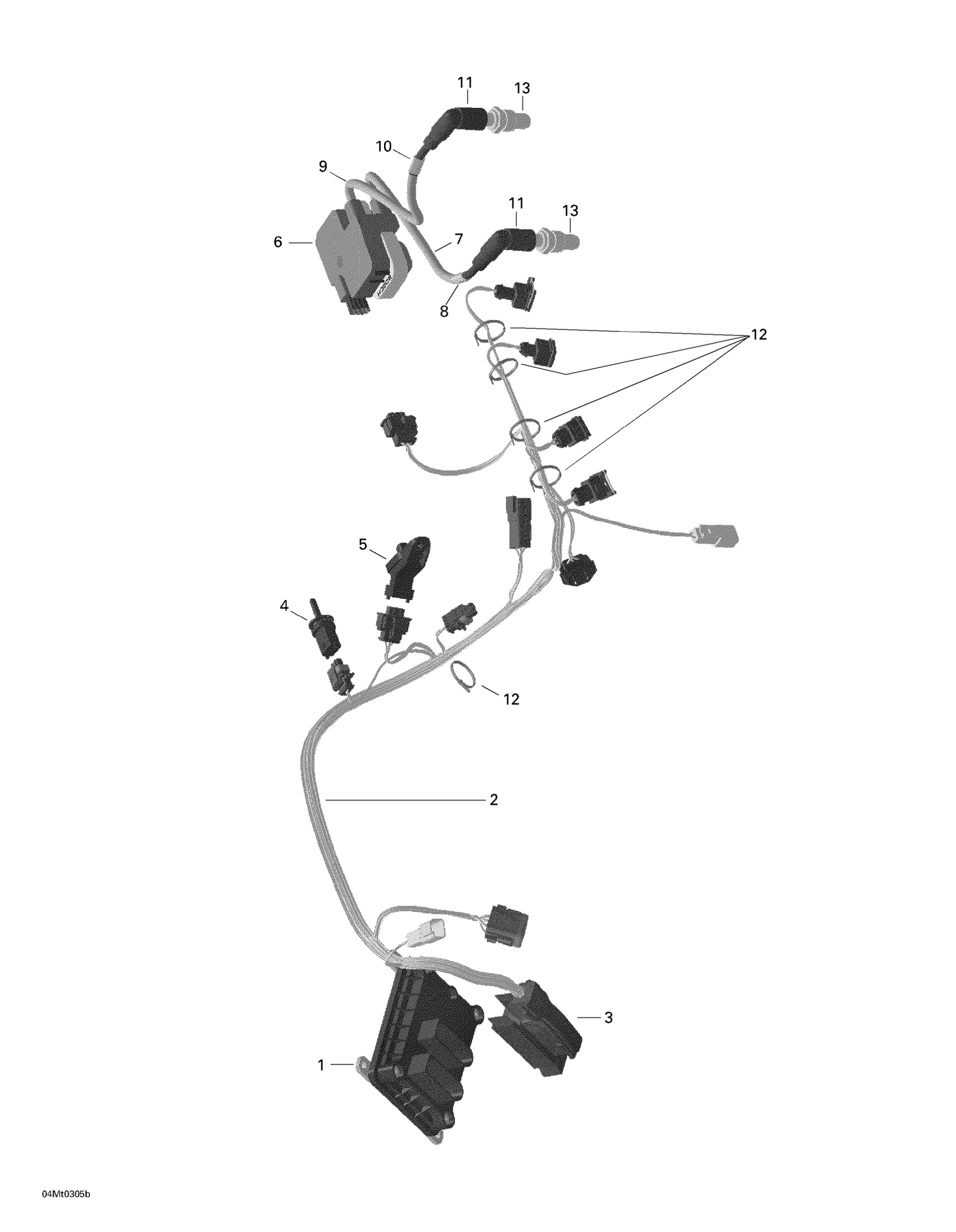

Ski-Doo Grand Touring SE 800 SDI, 2003 Engine Harness, Electronic Box, Ignition Coil Diagram

#

Description

Price

1

Electronic Box | 800 SDI

420664572

Unavailable

2

Engine Wiring Harness

420664310

Unavailable

3

ECM Connector

420664450

$26.09

4

TEMPERATURE SENSOR - Call your local BRP dealership

420966970

Unavailable

5

Pressure Sensor

270600040

$181.31

6

Ignition Coil

278001546

$148.48

7

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

8

SLEEVE, MAG SIDE - Call your local BRP dealership

420660632

Unavailable

9

CABLE ASS?Y 245 MM PTO - Call your local BRP dealership

420664305

Unavailable

10

SLEEVE, PTO SIDE - Call your local BRP dealership

420660630

Unavailable

11

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

12

Tie Rap

420866714

$1.79

13

Spark Plug NGK BR9ECS

415128524

$11.13
