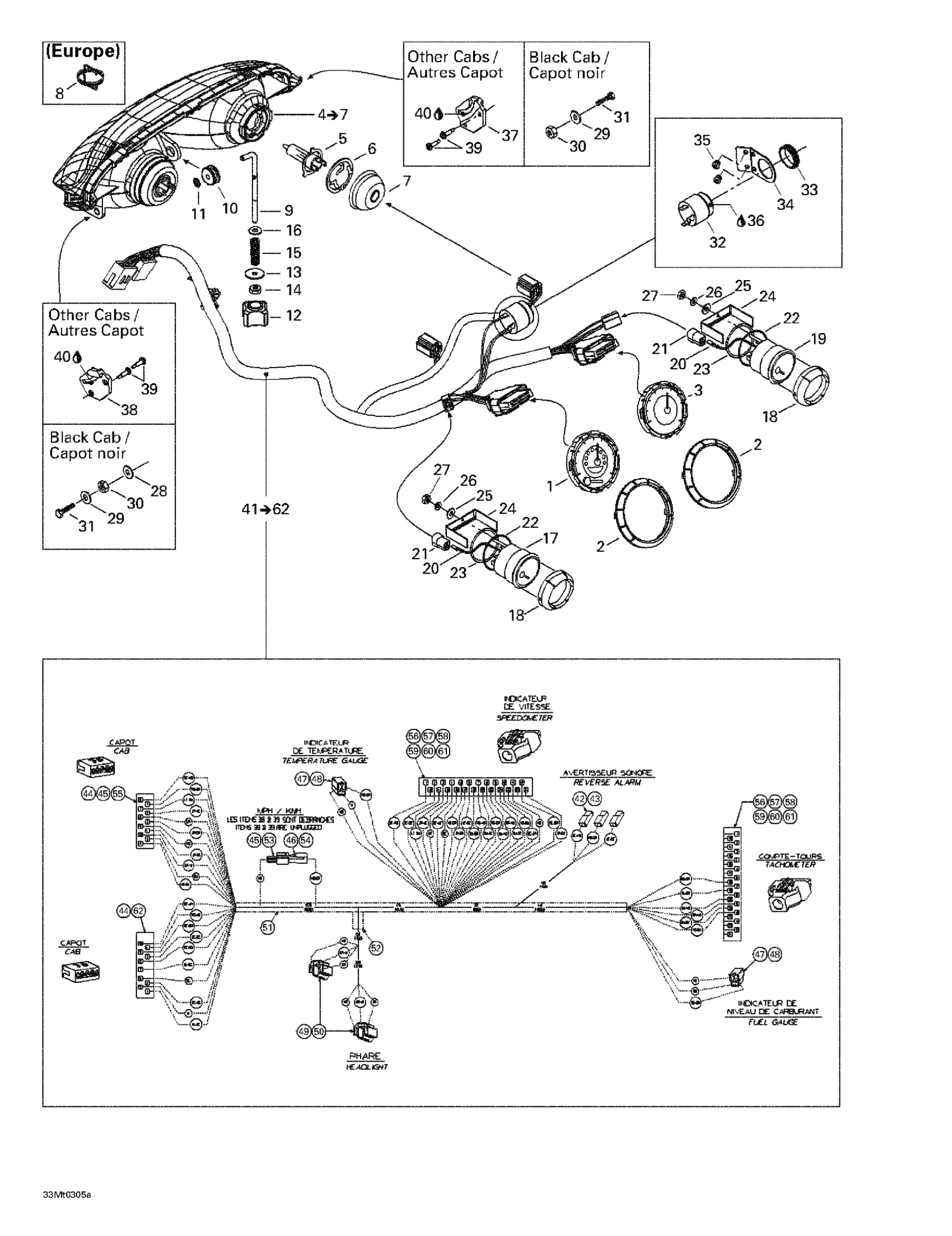

Ski-Doo Grand Touring SE 800 SDI, 2003 Electrical System - Hood Diagram

#

Description
Price

1

Speedometer

515175828

Unavailable

1

Speedometer, Se-Air

515175747

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

Tachometer

515175943

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

9

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

10

Grommet - Call your local BRP dealership

415100800

Unavailable

11

Push Nut

732610072

$1.97

12

Handle - Call your local BRP dealership

515175548

Unavailable

13

Washer

224060251

$0.55

14

Elastic Stop Nut M6

232561414

$1.78

15

SPRING - Call your local BRP dealership

415100600

Unavailable

16

Flat Washer 6 mm

234061410

$1.19

17

Temperature Gauge

515175601

Unavailable

18

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

19

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

20

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

21

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

22

O-RING - Call your local BRP dealership

414807200

Unavailable

23

WASHER - Call your local BRP dealership

517258600

Unavailable

24

Case Holder

415099800

Unavailable

25

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

26

Lock Washer | SE Models

414833700

Unavailable

27

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

28

Flat Washer 10 mm

234001410

$1.12

29

Flat Washer M5

234051410

$0.51

30

NUT M5 - Call your local BRP dealership

250100018

$6.25

31

Hex. Screw M5 X 35

207053544

$1.06

32

HORN - Call your local BRP dealership

515176035

Unavailable

33

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

34

PLATE - Call your local BRP dealership

515175688

Unavailable

35

Pop Rivet 3/16"

390402200

$0.30

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

RH Support

517289300

Unavailable

38

LH Support

517289400

Unavailable

39

Headlamp Screw

732601315

Unavailable

40

Grease Tube Lmz, 400 G

413707500

Unavailable

41

Hood Harness | Includes 41 - 62.

515175614

Unavailable

42

Female Terminal

409010100

$5.30

43

Female Terminal Housing, 1 Circuit

409010400

$7.25

44

Male Terminal

515175232

$1.45

45

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

46

Female Terminal

515175282

$6.24

47

Female Terminal

561503100

Unavailable

48

Female Housing

409204300

Unavailable

49

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

50

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

51

Tubing 16 Mm 1000Mm Long

219704408

$7.15

52

Tubing 10 MM 1000MM Long

219704407

$2.52

53

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

54

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

55

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

56

Plug

515175812

$1.96

57

Female Housing, 24 Circuits

515175801

$8.73

58

Retainer Block

515175802

$10.34

59

Wire Seal

515175803

$2.76

60

BLOCK - Call your local BRP dealership

515175804

Unavailable

61

Female Terminal

515175806

$0.93

62

Male Terminal Housing, 10 Circuits

415128526

Unavailable
