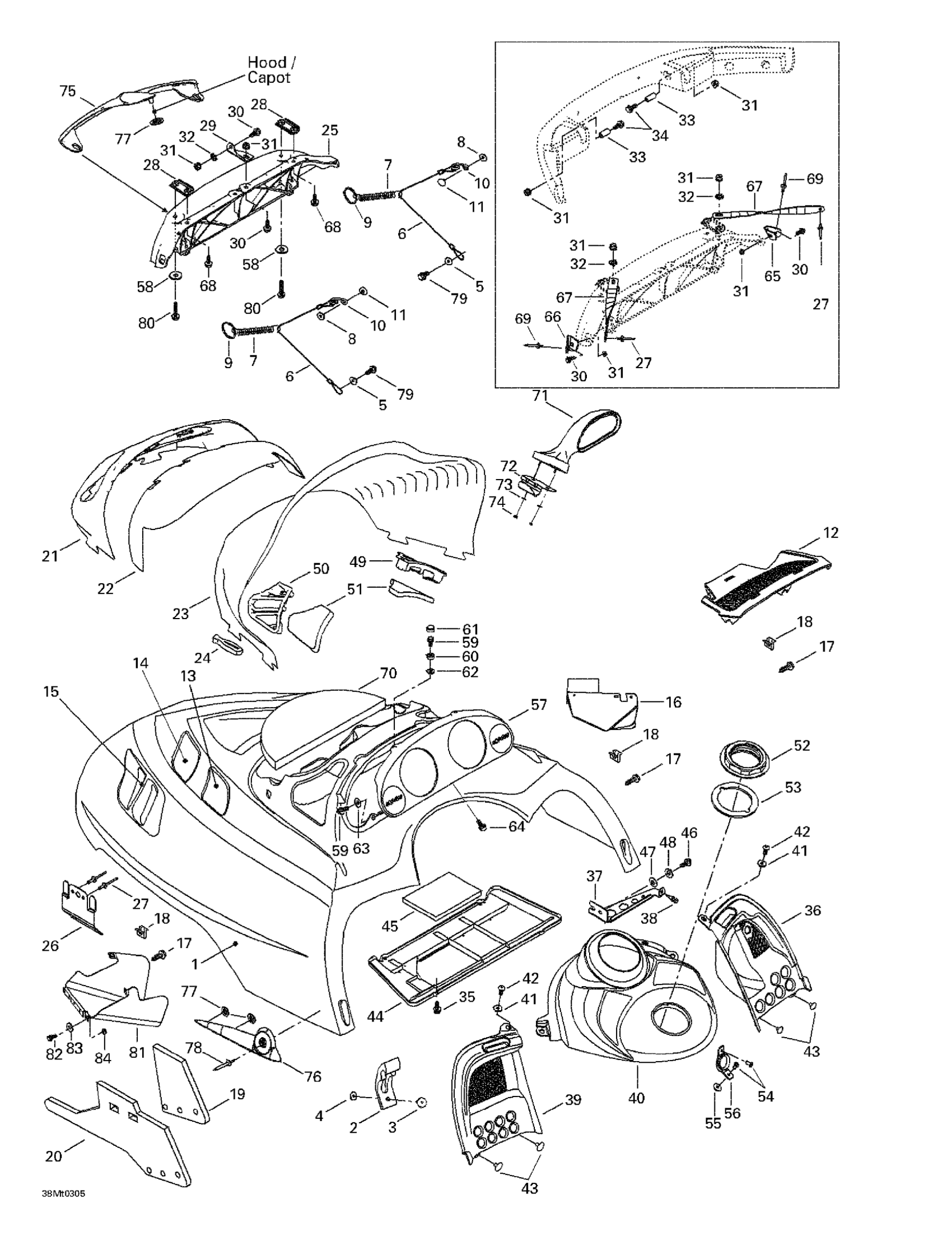

Ski-Doo Grand Touring SE 800 SDI, 2003 Cab, Console Diagram

#

Description
Price

1

Hood, Autumn Red M-549

517302732

Unavailable

HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)

517302740

Unavailable

Hood, 2 Tones Blue B-234/B-225 | Legend SE 800 SDI.

517302834

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16”

293150108

$1.23

4

Washer

517124300

Unavailable

5

Washer | DS 650 X

391301600

Unavailable

6

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

7

Spring

415043300

Unavailable

8

Washer

517124300

Unavailable

9

RING - Call your local BRP dealership

415058300

Unavailable

10

Bracket

517262800

Unavailable

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

12

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

13

RH Intermediate Grille

517303032

Unavailable

LH Intermediate Grille

517303033

Unavailable

14

RH Side Grille

517303034

Unavailable

LH Side Grille

517303036

Unavailable

15

RH Grille

517302978

Unavailable

LH Side Grille

517302036

Unavailable

16

Air Deflector

517302979

Unavailable

17

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

18

Edge Clip

517302785

Unavailable

19

RH Side Foam

517302675

Unavailable

20

LH Side Foam

517302630

Unavailable

21

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

Headlamp Moulding

517302835

Unavailable

22

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

23

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

Unavailable

WINDSHIELD - Call your local BRP dealership

517302356

Unavailable

24

Windshield Latch

570023800

Unavailable

25

Hinge

517302631

Unavailable

26

Hood Guide

517302615

Unavailable

27

Pop Rivet 3/16”

390910000

$0.48

28

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

29

Hinge Center Plate

517302045

Unavailable

30

Hex. Flange Screw M6 X 16

207661654

$1.74

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Lock Washer Serrated M6

250200041

Unavailable

33

BUSHING - Call your local BRP dealership

517302179

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.74

35

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

36

RH CONSOLE - Call your local BRP dealership

517302027

Unavailable

37

RH Console Support

517302621

Unavailable

38

Rubber Stopper

517302624

Unavailable

39

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

40

Center Console

517302944

Unavailable

41

Washer | DS 650 X

391301600

Unavailable

42

Forming Screw M5 x 16

250000676

$0.83

43

Pop Rivet 3/16"

293150103

Unavailable

44

AIR INTAKE PLATE - Call your local BRP dealership

517302836

Unavailable

45

Secondary Foam

517302425

Unavailable

46

Hex. Flange Screw M6 X 12

210261250

$1.56

47

Flat Washer 6 mm

234061410

Unavailable

48

Lock Washer M6, Black

234161471

$0.52

49

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

50

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

51

Air Intake Foam

517302151

Unavailable

52

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

53

Gasket

293250029

Unavailable

54

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

55

Rubber Stopper

517302286

Unavailable

56

Rope Guide

517302129

Unavailable

57

Indicator Support | SE

517302761

Unavailable

58

Flat Washer M6, Stainless

234062600

Unavailable

59

Screw K40 X 10

241140060

$1.25

60

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

61

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

62

Flat Washer 4 mm, Stainless

234042600

Unavailable

63

Washer

517124300

Unavailable

64

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

65

RH Corner Support

517302254

Unavailable

66

LH Corner Support

517302255

Unavailable

67

HOOD CLAMP - Call your local BRP dealership

517302837

Unavailable

68

Hex. Flange Screw M6 X 25

207662544

Unavailable

69

Pop Rivet 3/16"

390406500

Unavailable

70

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

71

RH Mirror

517302679

Unavailable

LH Mirror

517302681

Unavailable

72

Retainer Plate

517302539

Unavailable

73

Washer

517124300

Unavailable

74

Elastic Stop Nut M4

232541414

$0.48

75

Front Hood Moulding

517302780

Unavailable

76

RH Hood Moulding

517302781

Unavailable

LH Hood Moulding

517302782

Unavailable

77

Push Nut

732610072

Unavailable

78

Pop Rivet 3/16”

293150092

Unavailable

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Hex. Forming Screw M6 X 20

207162060

Unavailable

81

Air Deflector

517303038

Unavailable

82

HEX. SCREW M4 X 12 - Call your local BRP dealership

207141244

Unavailable

83

WASHER - Call your local BRP dealership

391301000

$0.65

84

Elastic Stop Nut M4

232541484

Unavailable
