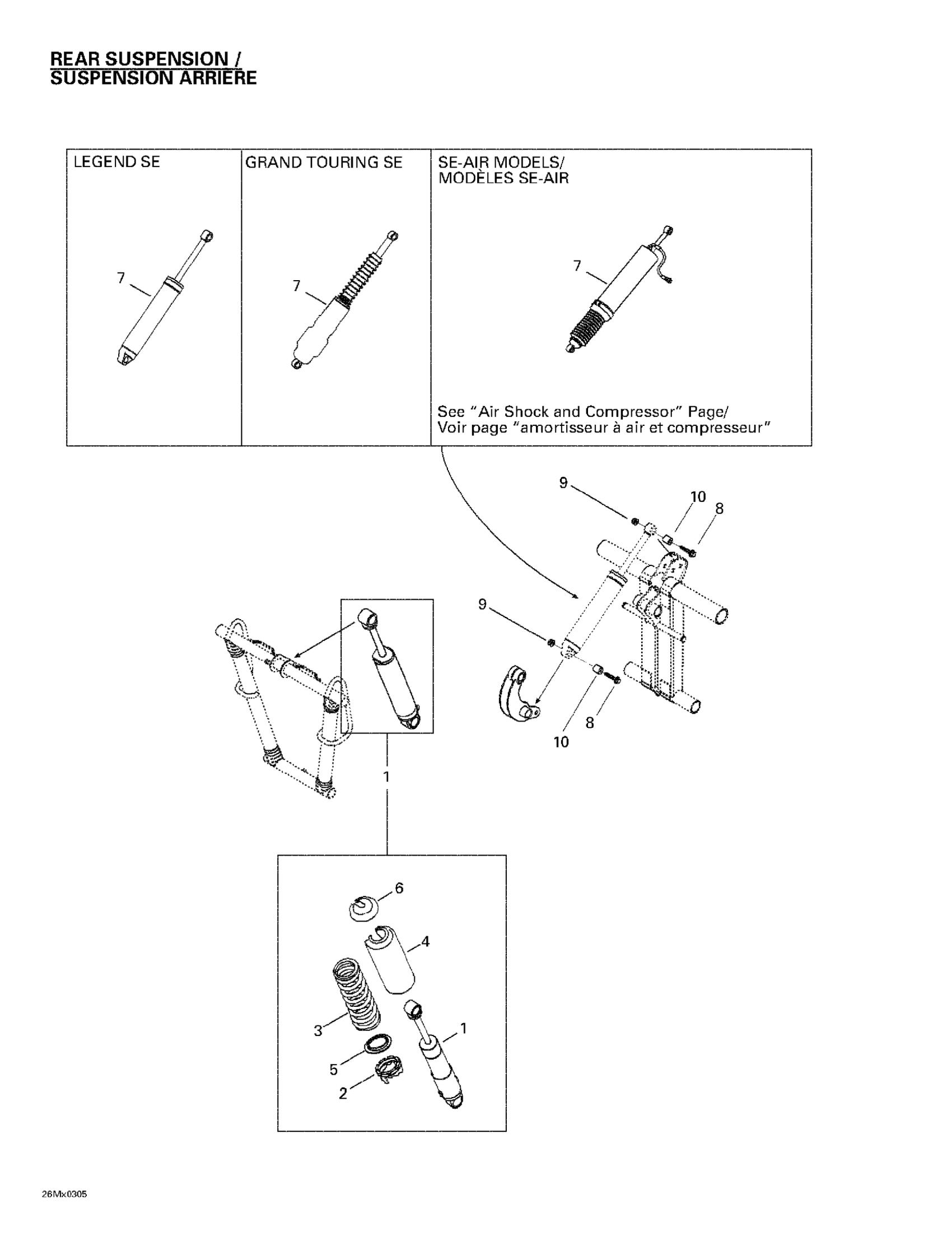

Ski-Doo Grand Touring SE 800 SDI, 2003 Rear Shocks Diagram

#

Description

Price

1

Center Shock

503190026

Unavailable

Center Shock

503189804

Unavailable

2

Adjustment Cam

505073625

Unavailable

3

SPRING - Call your local BRP dealership

503189659

Unavailable

SPRING - Call your local BRP dealership

503189325

Unavailable

4

Protector

503193663

Unavailable

5

Spring Guide

503191872

Unavailable

6

Spring Stopper

706200881

$10.30

7

Rear Shock | GTX Sport Europe

503190005

Unavailable

Rear Shock | Legend SE 800 SDI.

503190260

Unavailable

Rear Air Shock, Se-Air | Includes 21 - 25. Grand Touring 600. Grand Touring 700.

415128448

Unavailable

Air Shock | Includes 27 - 31. Legend SE 800 SDI.

415128449

Unavailable

8

Hex. Flange Screw M8 X 40

207684044

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

Bushing

414936000

Unavailable
