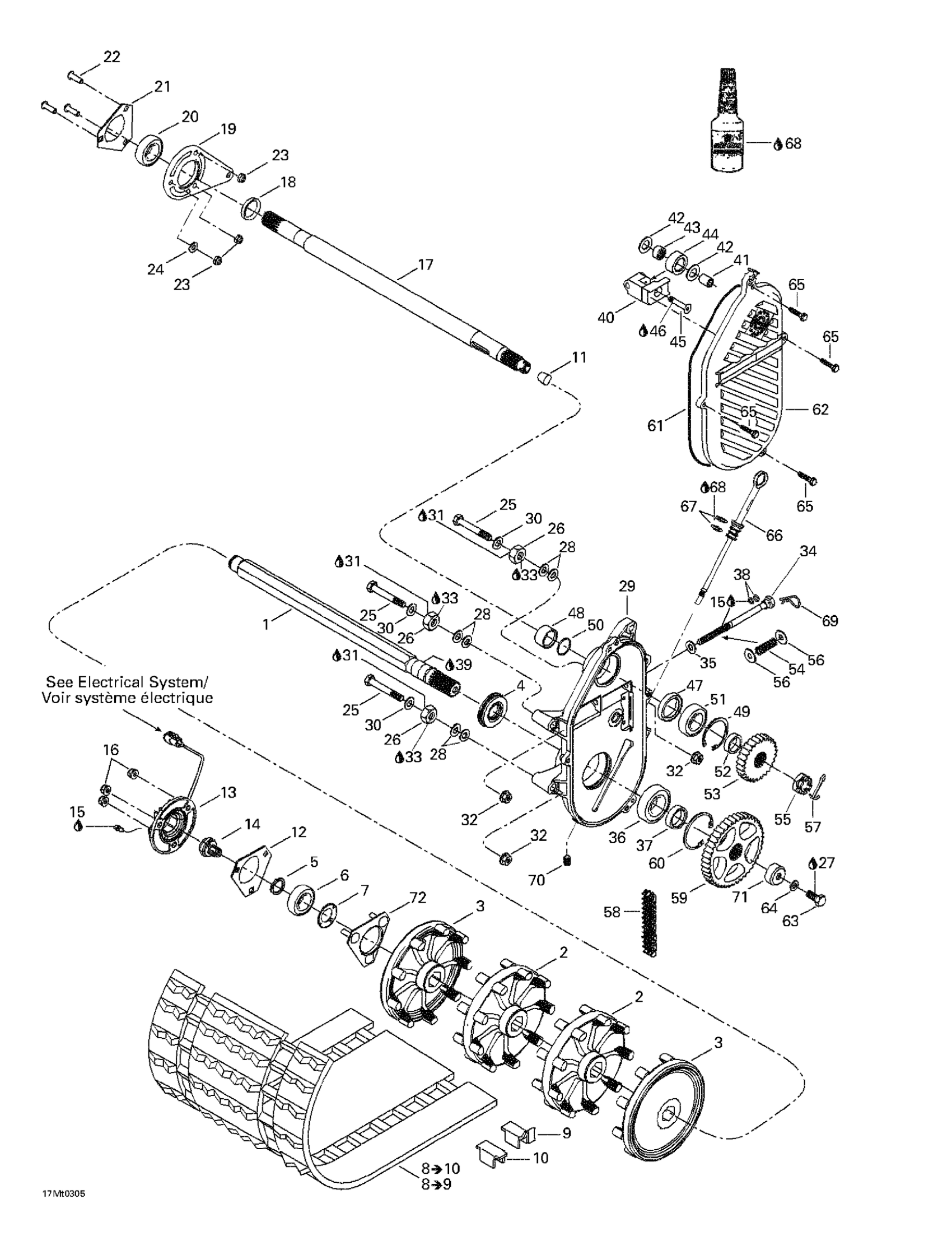

Ski-Doo Grand Touring SE 800 SDI, 2003 Chaincase And Countershaft Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

Unavailable

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

Unavailable

8

Track Ass’Y (15”X136"X 1.250") | Includes 8 to 9 / Legend Sport GT (Europe)

504152028

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.12

Track Guide | Track Width 16''

415129528

$3.12

10

Cleat

504152651

Unavailable

11

CORK - Call your local BRP dealership

414784800

$2.28

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Flange, Speedo

504152173

Unavailable

14

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

15

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

Unavailable

17

COUNTER SHAFT - Call your local BRP dealership

501026300

$428.43

18

Spacer

504149100

$11.20

19

Spacer (Casting)

080044200

Unavailable

20

Ball Bearing Kit This part replaces 504152535.

415129555

Unavailable

21

FLANGE - Call your local BRP dealership

501025000

Unavailable

22

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

23

Hex. Elastic Stop Nut M8

232581414

Unavailable

24

Flat Washer 8 mm

234081410

Unavailable

25

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

26

Spacer

504083800

Unavailable

27

Loctite 271, 10 ml

293800005

Unavailable

28

WASHER - Call your local BRP dealership

504073700

Unavailable

29

Chaincase

504152062

Unavailable

30

Washer

503183800

$3.20

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

Hex. Flange Elastic Nut M10

233201414

$1.26

33

Loctite 243, 10 ml

293800060

$20.77

34

Adjustment Screw

504151946

Unavailable

35

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

36

Ball Bearing

504152005

Unavailable

37

Shim

504152058

Unavailable

38

O-RING - Call your local BRP dealership

504151954

Unavailable

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

40

Chain Tensioner

504151940

Unavailable

41

SPACER - Call your local BRP dealership

504080200

Unavailable

42

WASHER - Call your local BRP dealership

504080300

Unavailable

43

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

44

ROLLER - Call your local BRP dealership

414531300

Unavailable

45

SCREW - Call your local BRP dealership

732601144

Unavailable

46

Loctite 271, 10 ml

293800005

Unavailable

47

Oil Seal

293200158

Unavailable

48

SPACER - Call your local BRP dealership

507031500

Unavailable

49

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

50

O-RING - Call your local BRP dealership

414876700

Unavailable

51

Ball Bearing

293350115

Unavailable

52

SHIM - Call your local BRP dealership

504147200

Unavailable

53

SPROCKET, 24 TEETH - Call your local BRP dealership

504139700

Unavailable

SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership | GSX 800 HO

504085300

Unavailable

54

SPRING - Call your local BRP dealership

504151945

Unavailable

55

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

56

HARD WASHER - Call your local BRP dealership | LTD

503125900

$2.48

57

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

58

DRIVE CHAIN LARGE, 76 LINKS - Call your local BRP dealership

504151856

Unavailable

59

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

60

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

61

O-Ring

415046400

$24.58

62

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

63

Hex. Screw M10 X 25

207102544

Unavailable

64

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

65

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

66

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

67

O-RING - Call your local BRP dealership

414969400

Unavailable

68

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

69

Hair Pin

414575600

Unavailable

70

Plug 1/8”-27

504151921

Unavailable

71

CAP - Call your local BRP dealership

504152104

Unavailable

72

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable
