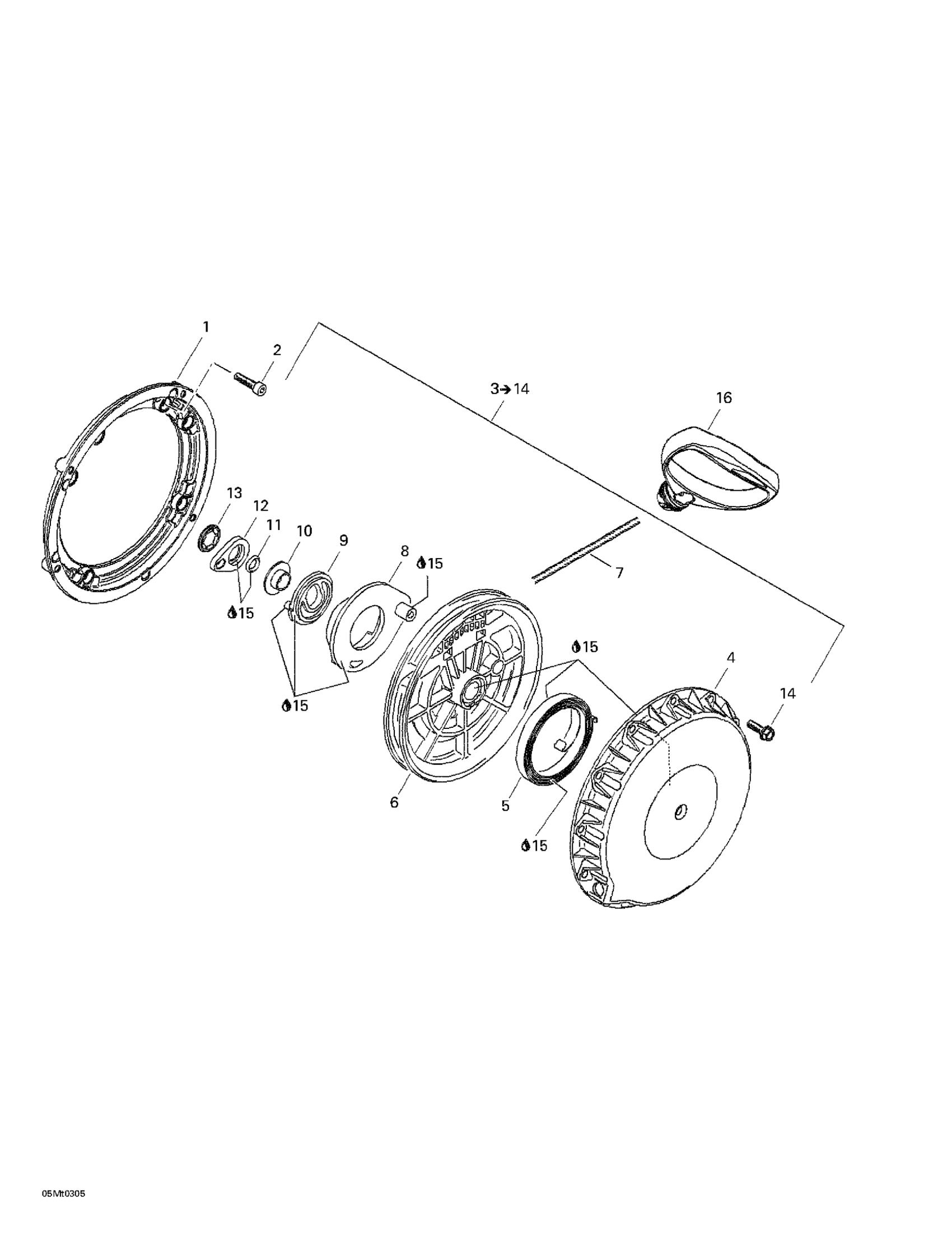

Ski-Doo Grand Touring SE 800 SDI, 2003 Rewind Starter Diagram

Description

Price

Flange Connector

420810868

$86.12

Socket Head Screw M6 x 16

420241237

Unavailable

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

Starter Housing

420910256

$89.20

Rewind Spring

420939115

$25.32

ROPE SHEAVE - Call your local BRP dealership | SUV 600

420852286

Unavailable

Was 412500100 Rope-Starter

219704403

Unavailable

Pawl

420852633

$32.28

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

Stage Sleeve

420847926

Unavailable

O-Ring

420250400

Unavailable

Lock Ring

420852520

Unavailable

Locking Element

420845560

Unavailable

Torx Flange Screw M6 X 20

420441386

Unavailable

Molykote PG 54, 10 g

420899763

Unavailable

Starter Grip

572084400

Unavailable
