Description

Price

1

FUEL TANK - Call your local BRP dealership

513033005

$189.20

2

Fuel Tank Cap

513033025

$19.47

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

Fuel Pump Module | Includes 7 - 12.

513033006

Unavailable

8

Fuel Hose Kit

861301700

Unavailable

9

Resistor Card Kit

861301800

Unavailable

10

Float Lever Kit

861301900

Unavailable

11

Pump Kit

861302000

Unavailable

12

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

13

Nut, Fuel Pump Module

513033040

$27.66

14

Fuel Filter Ass’Y

513033004

Unavailable

14b

Locking Clip

513033135

$5.11

15

Filter Support

513033057

Unavailable

16

Open Clamp

513033047

$4.88

17

Hex. Screw M6 X 14

207161444

$0.48

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

Flat Washer 8 mm

234082410

$1.11

20

Hex. Elastic Stop Nut M8

232581414

Unavailable

21

SPRING - Call your local BRP dealership

414818200

Unavailable

22

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

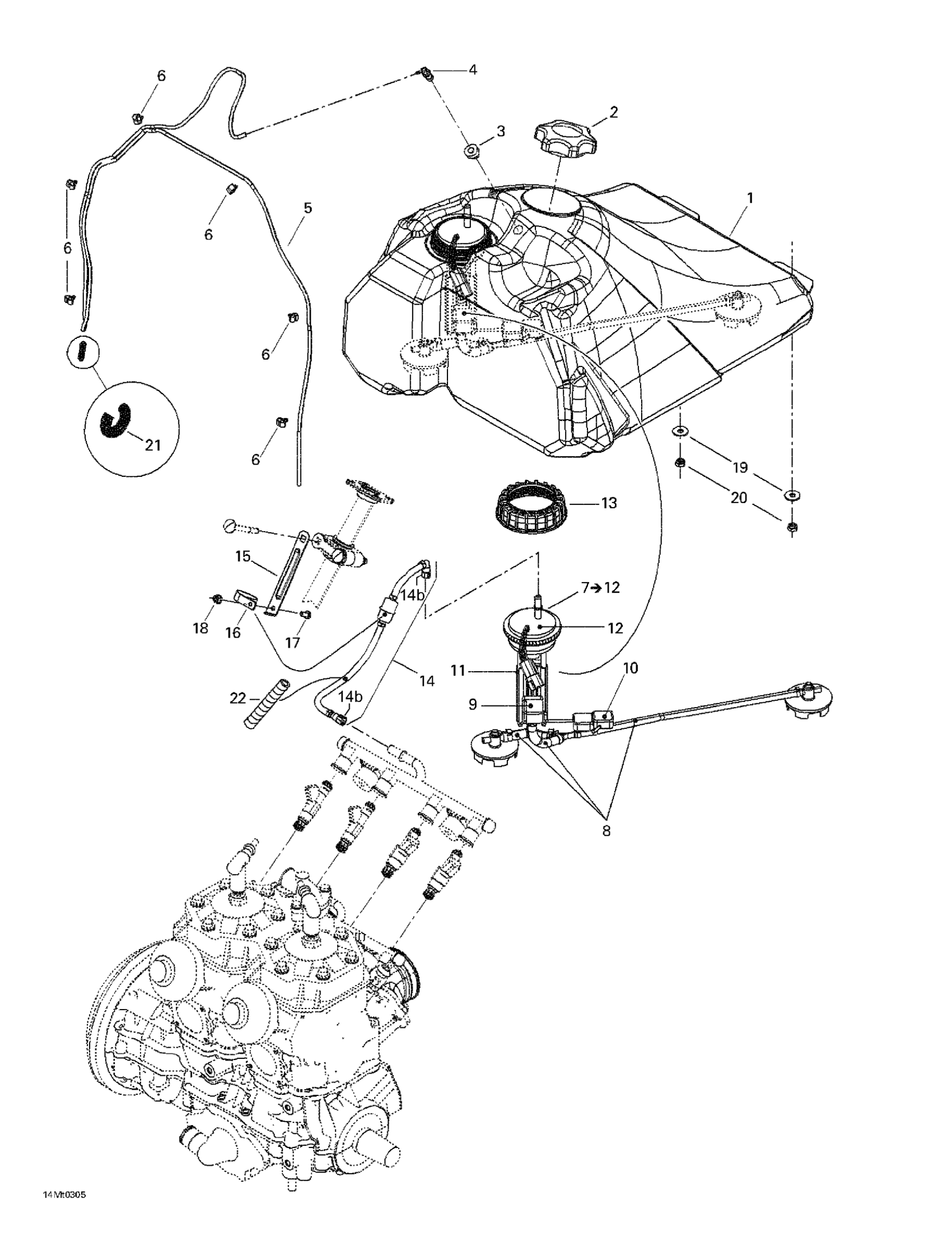

Ski-Doo Grand Touring SE 800 SDI, 2003 Fuel System Diagram
