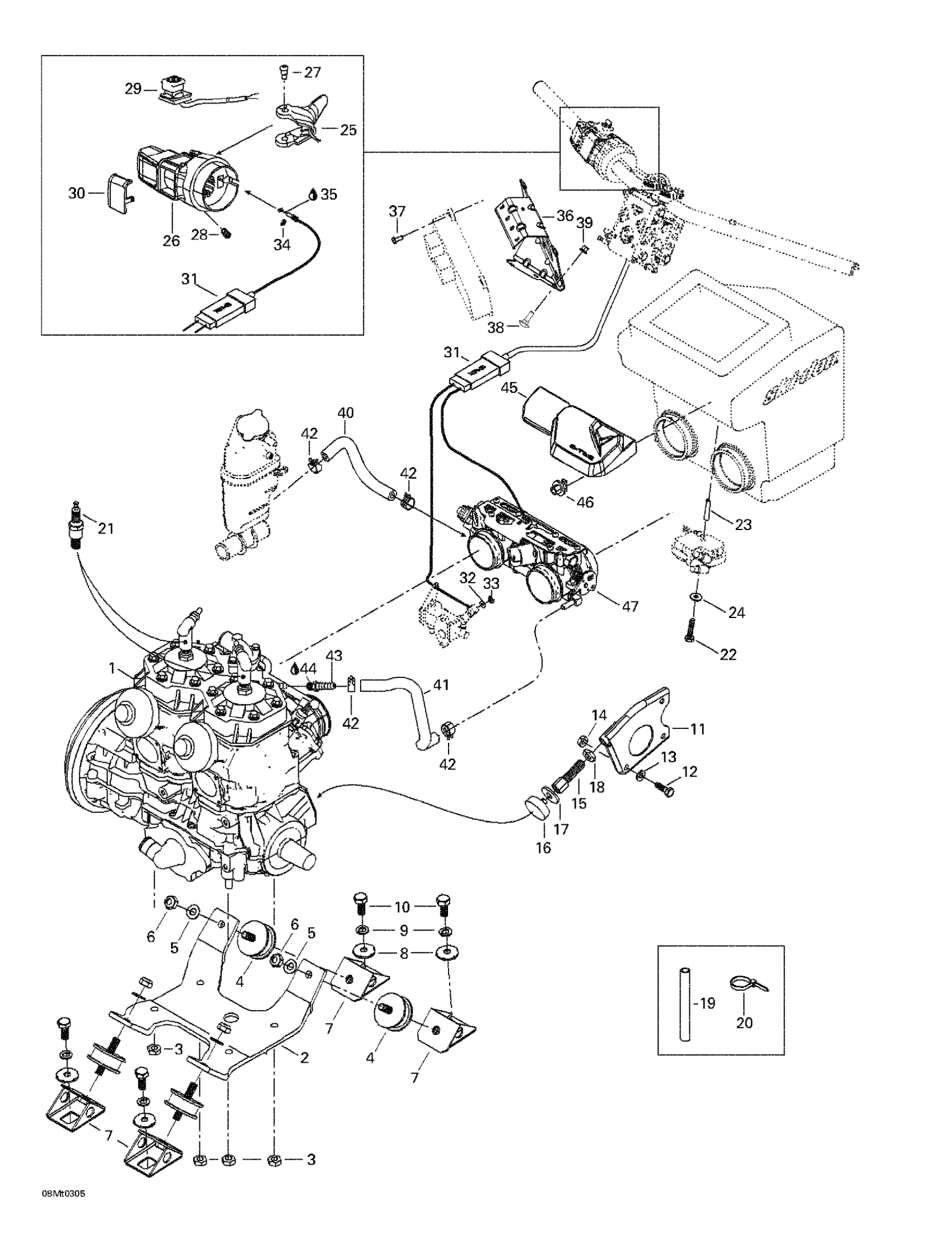

Ski-Doo Grand Touring SE 800 SDI, 2003 Engine Support, Dpm, Throttle Handle Diagram

#

Description
Price

1

Engine 793 SDI

400702606

Unavailable

2

Engine Support

512059173

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.26

4

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

5

Flat Washer 10 mm

234001410

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Engine Support

512050900

Unavailable

8

Lock Washer

512056700

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Screw M10 X 25

207102544

Unavailable

11

Support Plate

512058500

Unavailable

12

Hex. Screw M8 X 20

207182044

$0.61

13

Flat Washer 8 mm

234081410

Unavailable

14

Hex. Elastic Stop Nut M8

232581414

Unavailable

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Stopper

512059056

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Nut Hexagonal RH.

232026414

Unavailable

19

Tubing 6 Mm 3000Mm Long

219704425

$13.14

20

Tie Wrap 142 mm

293750002

Unavailable

21

Spark Plug NGK BR9ECS

415128524

Unavailable

22

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

23

SPACER - Call your local BRP dealership

512059812

Unavailable

24

Lock Washer M6, Black

234161471

$0.52

25

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

26

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

27

Flange Screw

732601143

$4.02

28

Socket Set Screw M8 X 10

414440800

$4.00

29

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

30

Switch Cover

572100901

Unavailable

31

THROTTLE CABLE - Call your local BRP dealership

512059362

Unavailable

32

Flat Washer 8 mm, Nylon

234081100

$1.00

33

Circlip

414753500

$0.59

34

Circlip

414274500

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

36

Electronic Control Unit Support

512059613

Unavailable

37

Hex. Flange Screw M6 X 12

210261250

$1.56

38

Carriage Bolt

207751644

Unavailable

39

Hex. Flange Elastic Nut M5

233251414

Unavailable

40

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

41

Formed Hose

512059562

Unavailable

42

Spring Clamp

414655700

Unavailable

43

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

44

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

45

Moulding

512059666

Unavailable

46

Lock

512059786

Unavailable

47

Throttle Body | 800 SDI

420889190

Unavailable
