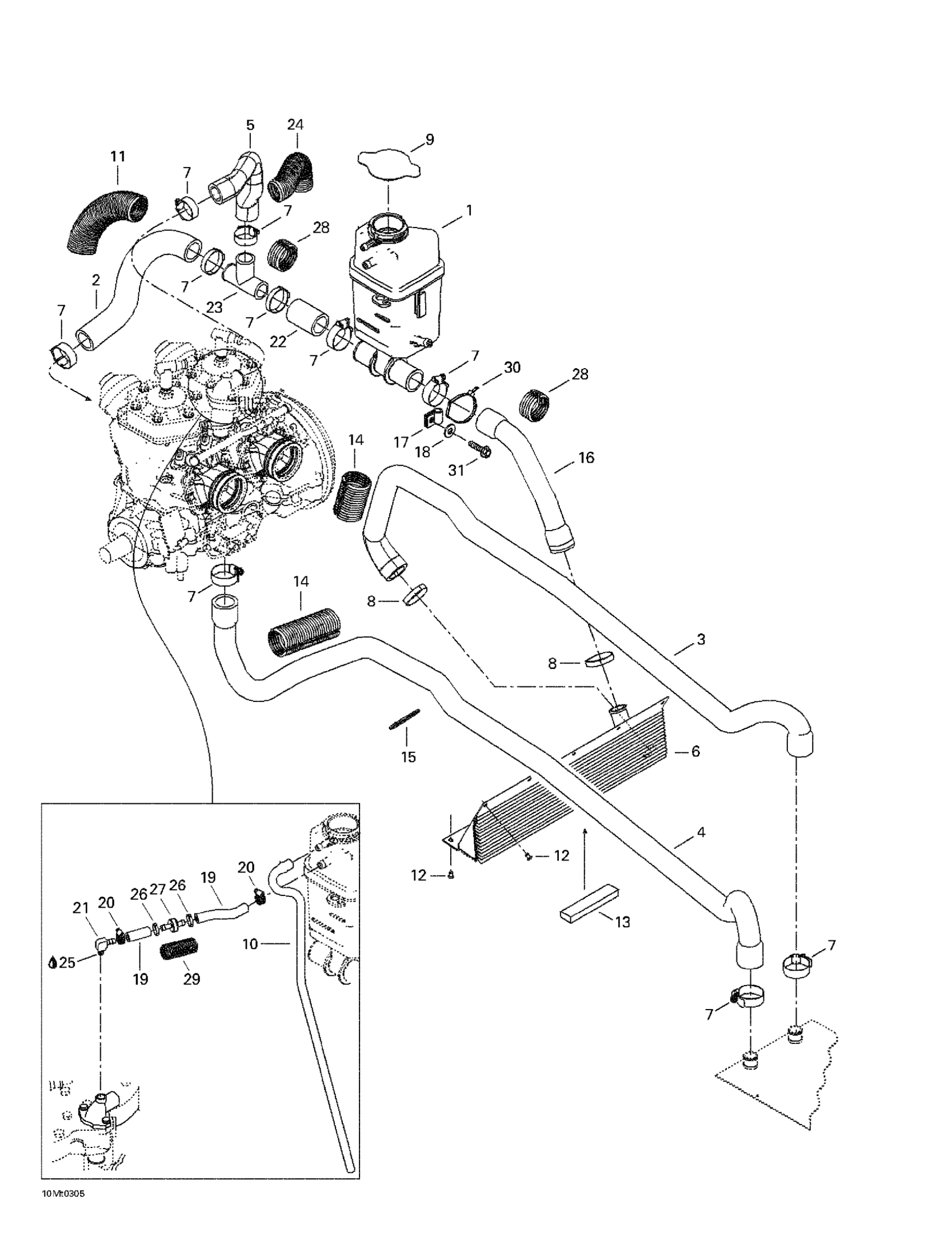

Ski-Doo Grand Touring SE 800 SDI, 2003 Cooling System Diagram

#

Description
Price

1

Tank Coolant

509000167

$89.20

2

ENGINE INLET HOSE - Call your local BRP dealership

509000141

Unavailable

3

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

4

Radiator Outlet Hose

509000145

Unavailable

5

Hose

509000142

Unavailable

6

Front Radiator

509000146

Unavailable

7

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

8

Oetiker Gear Clamp 36.1MM

509000045

$3.55

9

Pressure Cap

509000187

$27.66

10

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

11

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

12

Pop Rivet 3/16"

390402200

$0.26

13

Neoprene Seal (1PAC=3M)

219704364

$22.72

14

Tubing 25 MM 1000MM Long

219704402

$12.69

15

Tie Wrap 368 mm

293750008

$0.85

16

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000144

Unavailable

17

Bracket

415052400

$4.12

18

Washer | DS 650 X

391301600

$0.48

19

Hose 8 mm

509000093

Unavailable

20

Tridon Gear Clamp

293650170

$1.74

21

Elbow Fitting 90°

293700020

Unavailable

22

Hose

509000143

Unavailable

23

T-Fitting

509000219

$15.35

24

Tubing 25 MM 1000MM Long

219704402

$12.69

25

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

26

Crimp Clamp

293650053

$2.42

27

Check Valve

509000153

$16.89

28

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

29

Tubing 16 Mm 1000Mm Long

219704408

$6.23

30

Tie Rap

509000165

$2.31

31

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.64
