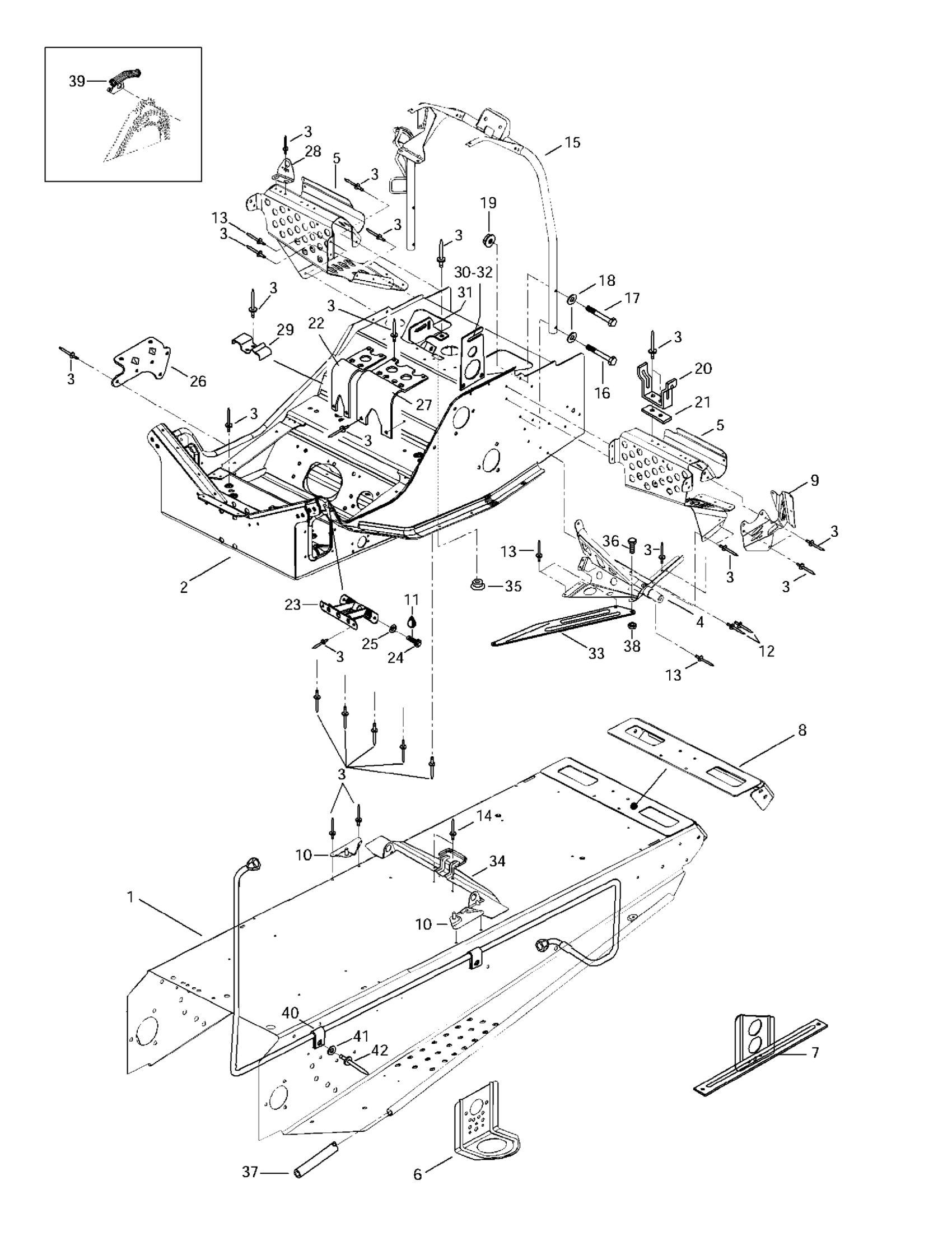

Ski-Doo Grand Touring SE, 1997 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 42.

518316544

Unavailable

1

Forming Frame | Grand Touring SE.

518321668

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Pop Rivet 3/16"

390402200

$0.26

4

RH Support

518316703

Unavailable

LH Support

518316702

$104.58

5

RH Front Footrest

518312906

Unavailable

LH Front Footrest

518312907

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket | Formula III-LT.

518316733

Unavailable

RH Rear Bracket | Formula III-LT.

518316734

Unavailable

8

Cap-End

518308717

Unavailable

9

Side Plate R.H

518312909

Unavailable

Side Plate L.H

518312908

Unavailable

10

RH Tank Bracket

518304735

Unavailable

LH Tank Bracket

518304736

Unavailable

11

Loctite 271, 10 ml

293800005

Unavailable

12

Avex Rivet

390909200

Unavailable

13

Avex Rivet

390909100

$0.29

14

Pop Rivet 3/16"

390402400

Unavailable

15

Handle Steering Support

518304743

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.35

18

Flat Washer 6 mm

234061410

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Belt Guard Bracket

518202100

$16.12

21

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

22

Air Silencer Support

518310800

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.61

25

Lock Washer 8 mm

234181401

Unavailable

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

29

Protector

518207800

Unavailable

30

External Bracket

517252000

Unavailable

31

Internal Bracket

518313900

Unavailable

32

Avex Rivet

390909200

Unavailable

33

RH Reinf. Plate

518316772

Unavailable

LH Reinf. Plate

518316773

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

CAP - Call your local BRP dealership

414859400

$2.78

36

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

37

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

38

Hex. Flange Elastic Nut M5

233251414

Unavailable

39

Rope Guide

517276000

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Washer

517124300

Unavailable

42

Pop Rivet 3/16”

390407200

$0.66
