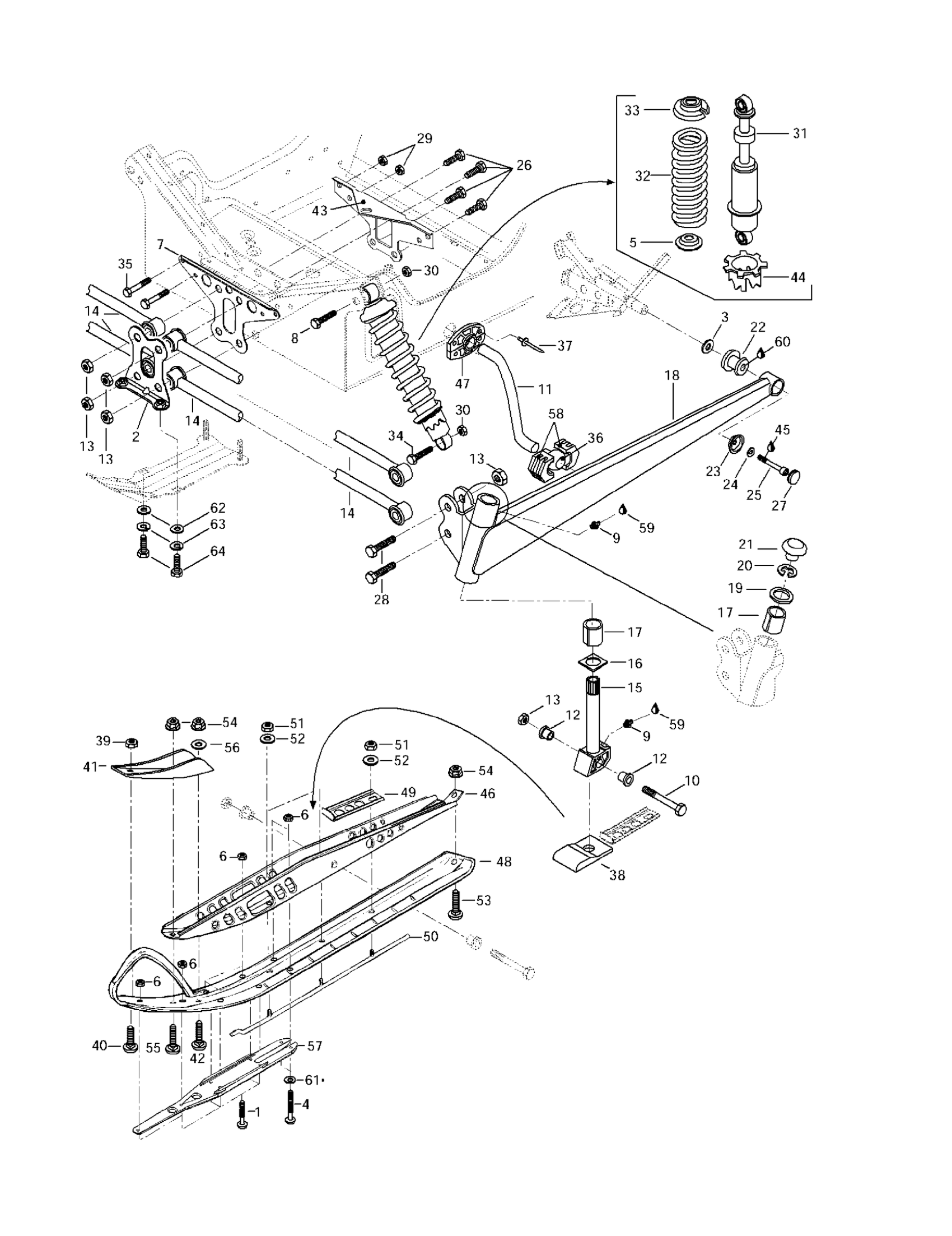

Ski-Doo Grand Touring SE, 1997 Front Suspension And Ski Diagram

#

Description
Price

1

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

2

Link Plate

506122900

Unavailable

3

WASHER - Call your local BRP dealership

503146700

$4.42

4

Allen Screw M5 x 40 | Formula 500 Deluxe. Formula 583 Deluxe.

732601274

Unavailable

5

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

6

Elastic Stop Nut M5

232551414

Unavailable

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

Unavailable

10

Hex. Screw M12

732601176

Unavailable

11

Stabilisator

506131800

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Arm Ass'y (42")

580649700

Unavailable

15

Ski Leg

506139200

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

RH Swing Arm

506135110

Unavailable

LH Swing Arm

506135210

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$8.97

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

Unavailable

24

Lock Washer 8 mm

234181401

Unavailable

25

Socket Head Screw M8 X 25

205082544

Unavailable

26

Hex. Screw M12 x 90

222029065

Unavailable

27

CAP - Call your local BRP dealership

572045900

Unavailable

28

Hex. Screw M12 x 50

222025075

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

Front Shock

415040200

Unavailable

32

Shock Spring (Blue)

415035700

Unavailable

33

Spring Stopper

706200881

$10.30

34

Hex. Screw M10 X 55

207005544

$1.85

35

Hex. Screw M6 X 55

207065544

Unavailable

36

Ball Joint

503142200

Unavailable

37

Pop Rivet 3/16"

390402300

Unavailable

38

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

40

Carriage Bolt M6 X 25

207762544

Unavailable

41

Ski Reinforcement | Formula 500 Deluxe.

505068000

Unavailable

42

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable

43

Rear Link Plate

517254900

Unavailable

44

Cam

503169000

Unavailable

45

Loctite 243, 10 ml

293800060

$20.77

46

Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505068100

Unavailable

47

Half-Bushing

572029900

Unavailable

48

Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

572085700

Unavailable

49

Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067509

Unavailable

50

Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067320

Unavailable

51

Elastic Locking Nut M10 X 1.5

233601416

$1.68

52

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

53

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

54

Hex. Flange Elastic Nut M8

233281414

Unavailable

55

Carriage Bolt M8 X 30

207783044

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Corrector | Formula 500 Deluxe. Formula 583 Deluxe.

572095200

Unavailable

58

Block Sliding

572069800

Unavailable

59

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

60

Grease, Super Lube

293550030

Unavailable

61

Flat Washer 6 mm

234061410

Unavailable

62

Flat Washer 8 mm

234081410

Unavailable

63

Lock Washer 8 mm

234181401

Unavailable

64

Hex. Screw M8 X 20

207182044

$0.61
