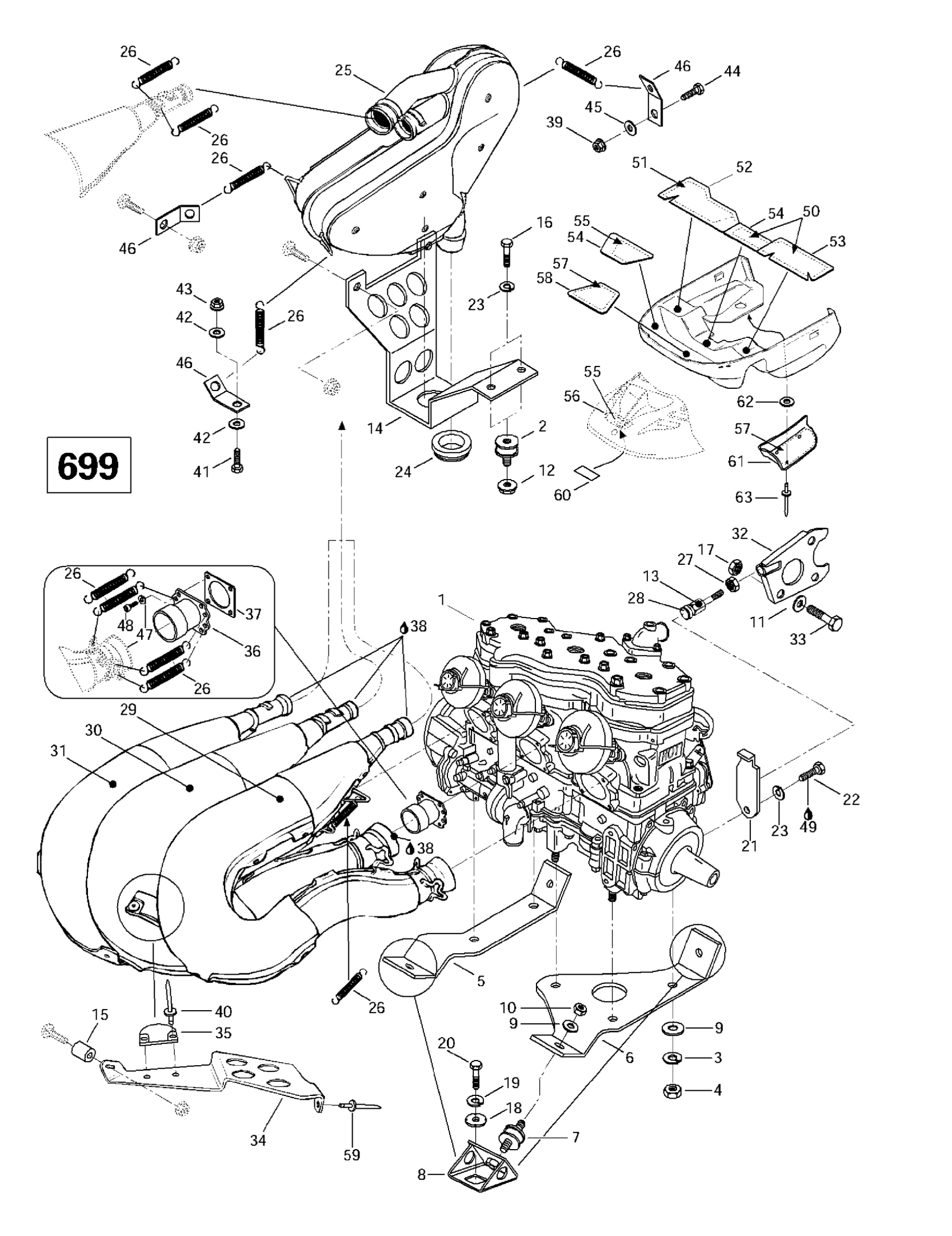

Ski-Doo Grand Touring SE, 1997 Engine Support And Muffler (699) Diagram

#

Description
Price

1

Engine (699)

400603000

Unavailable

2

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

3

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

4

Hex. Nut M10 X 1.5

232006414

$1.11

5

Engine Support (MAG)

512052800

Unavailable

6

Engine Support (PTO)

512052700

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Engine Support

512050900

Unavailable

Support

512053200

Unavailable

9

Flat Washer 10 mm

234001410

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.68

11

Flat Washer 8 mm

234081410

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

Unavailable

13

Stopper Screw

512056900

Unavailable

14

Support (Muffler)

514031900

Unavailable

15

Spacer

517277700

Unavailable

16

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

17

Hex. Elastic Stop Nut M8

232581414

Unavailable

18

Lock Washer

512056700

Unavailable

19

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

20

Hex. Screw M10 X 25

207102544

Unavailable

21

Stopper Plate

512053300

Unavailable

22

Hex. Screw M8 x 16

207181644

$0.87

23

Lock Washer 8 mm

234181401

Unavailable

24

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

25

Muffler

514049500

Unavailable

26

Spring

415107100

$6.20

27

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

28

Stopper | Formula III 600.

570049500

Unavailable

29

Tuned Pipe (PTO)

514047900

Unavailable

30

Tuned Pipe (Central)

514048000

Unavailable

31

Tuned Pipe (MAG)

514048100

Unavailable

32

Plate

512056800

Unavailable

33

Hex. Screw M8 X 25

207182544

Unavailable

34

Support,Tuned Pipe

514043000

Unavailable

35

Rubber Pad

570044100

Unavailable

36

Exhaust Socket | Formula III 600.

420978816

Unavailable

37

Gasket

420850552

$7.92

38

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

41

Hex. Screw M5 X 20

207152044

$0.88

42

Flat Washer

224061201

Unavailable

43

Hex. Flange Elastic Nut M5

233251414

Unavailable

44

Hex. Screw M6 X 16

207161644

Unavailable

45

Flat Washer

224060201

Unavailable

46

Spring Bracket

514054522

$6.28

47

Lock Washer M6, Black

234161471

$0.52

48

Socket Head Screw M6 X 20

205062044

$1.07

49

Loctite 271, 10 ml

293800005

Unavailable

50

Insulator

514043700

Unavailable

51

Insulator

514043600

Unavailable

52

Sheet-Reflective

414917100

Unavailable

53

Sheet-Reflective

414918300

Unavailable

54

Sheet-Reflective

414918400

Unavailable

55

Insulator

514039000

Unavailable

56

Sheet-Reflective

415049700

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Sheet-Reflective

414930900

Unavailable

59

Pop Rivet 3/16"

390906800

Unavailable

60

Sheet-Reflective

415076700

Unavailable

61

Protector

517297200

Unavailable

62

Washer

517124300

Unavailable

63

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
