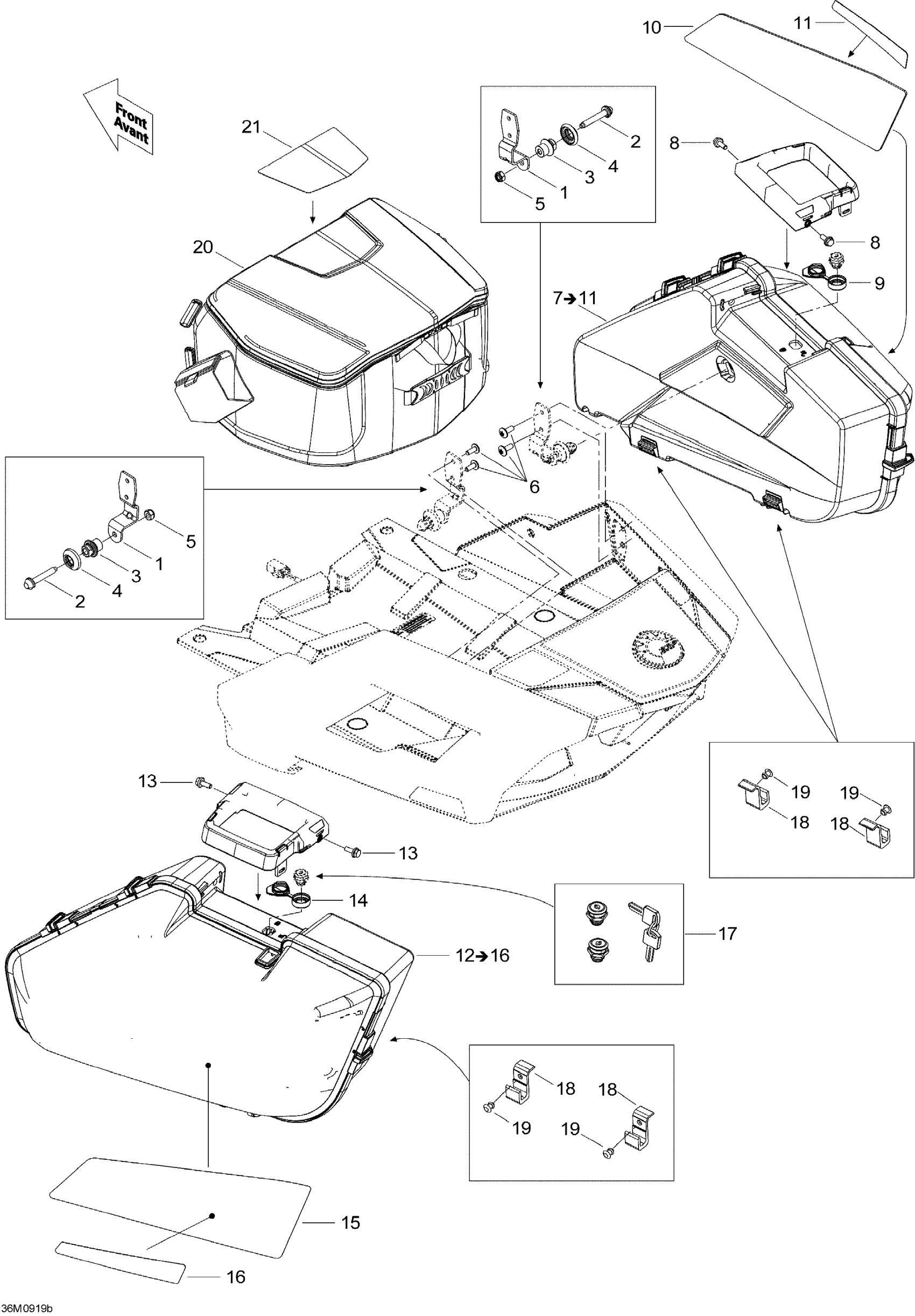

Ski-Doo Grand-Touring SE 1200, 2010 Luggage Rack SE Diagram

#

Description
Price

1

SADDLE BAG LUG SUPPORT - Call your local BRP dealership | Package SE

511000580

Unavailable

2

SUITCASE STUD - Call your local BRP dealership | Package SE

511000337

Unavailable

3

STUD NUT - Call your local BRP dealership | Package SE

511000423

Unavailable

4

Rubber Bumper | Package SE

511000358

Unavailable

5

Hex. Elastic Nut M8 Brass

232581200

$1.29

6

Torx Truss Screw M6 X 16

250000721

$1.39

7

RH SUITCASE ASS'Y - Call your local BRP dealership | Includes 6 to 10

511000689

Unavailable

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

9

Black Sealing Cap | Package SE

511000639

$12.67

10

RH BAG DECAL - Call your local BRP dealership

516003766

Unavailable

11

Red RH Rear Reflector | Package SE

520000757

$12.99

12

LH SUITCASE ASS'Y - Call your local BRP dealership | Includes 11 to 15

511000690

Unavailable

13

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

14

Black Sealing Cap | Package SE

511000639

$12.67

15

LH BAG DECAL - Call your local BRP dealership

516003765

Unavailable

16

Red LH Rear Reflector | Package SE

520000756

$13.36

17

LOCK - Call your local BRP dealership | Package SE

511000599

Unavailable

18

Support Plate | Package SE

518325618

$17.88

19

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

REAR TRAVEL BAG - Call your local BRP dealership | Package SE

860200174

Unavailable

21

BAG DECAL - Call your local BRP dealership

516003817

Unavailable
