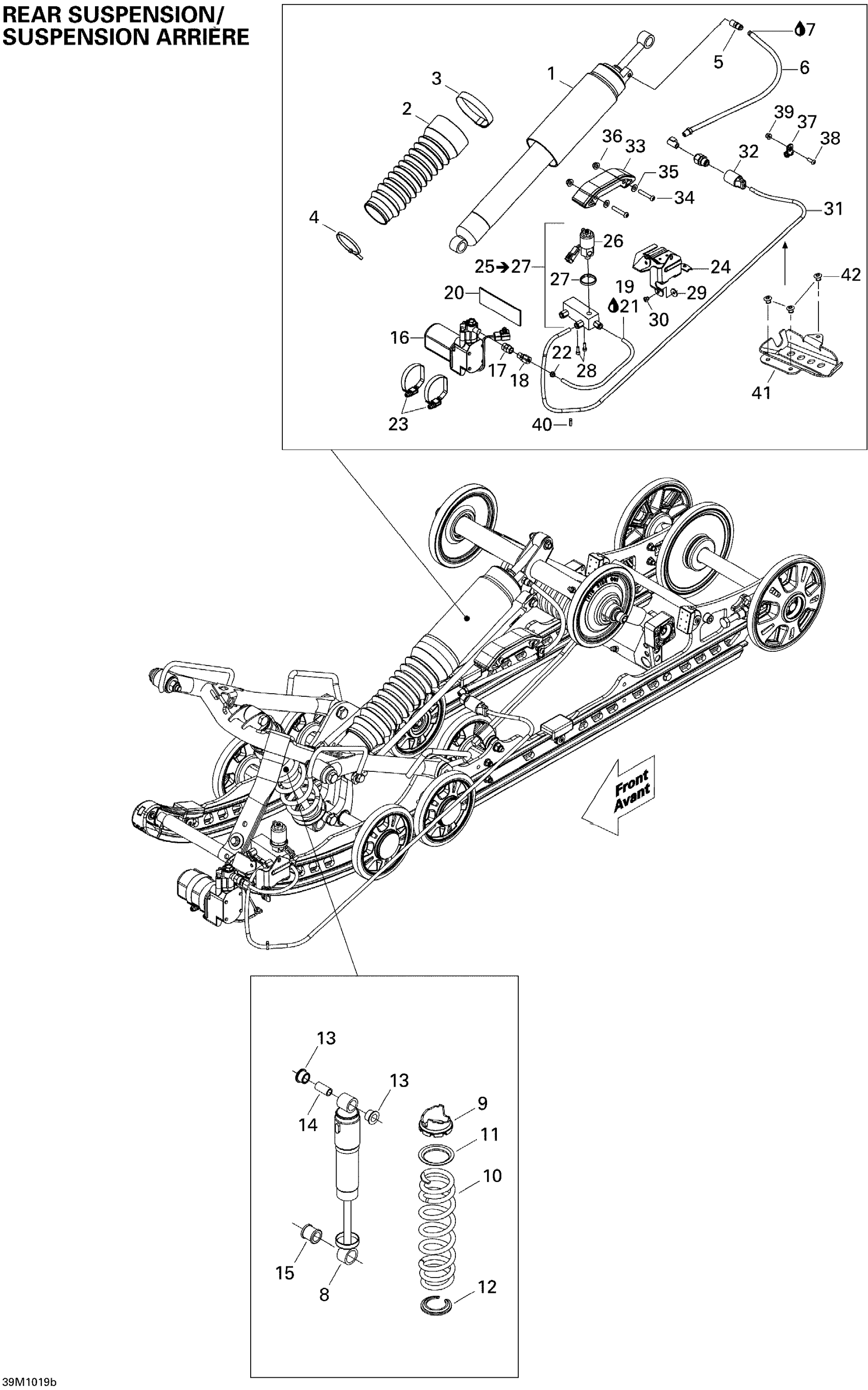

Ski-Doo Grand-Touring SE 1200, 2010 Rear Suspension Shocks 2, SE Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership

503192648

Unavailable

2

Protection Boot

570278300

$59.97

3

Tridon Clamp

293650064

$7.80

4

Tie Wrap 368 mm

293750008

$0.85

5

Male Pneumatic Connector

503191939

$45.99

6

PNEUMATIC HOSE ASS'Y - Call your local BRP dealership

503191933

$126.89

7

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

8

Center Shock

503192988

Unavailable

9

Adjustment Cam

505073625

$12.18

10

Black, Spring

503191882

$59.97

11

Spring Guide

503191872

$2.18

12

Spring Stopper

503194270

$16.89

13

Urethane Bushing

503189117

$6.88

14

Bushing | Includes 240d to 240d1

503189282

$4.18

15

Bushing

503189271

$10.46

16

Compressor

706001349

$436.89

17

FEMALE NIPPLE 1/8 NPT - Call your local BRP dealership

503191825

$6.49

18

CKECK VALVE - Call your local BRP dealership

503191903

$21.51

19

Hose 4.32Mm 3000Mm Long

219704415

$44.17

20

Rubber Damper

503191940

$8.72

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

INSERT BUSHING - Call your local BRP dealership

503192028

$2.42

23

Norma Gear Clamp

293650090

$4.38

24

PRESSURE COLLECTOR BRACKET - Call your local BRP dealership

503191932

Unavailable

25

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership | Includes 25 to 27

503191928

$251.51

26

VALVE - Call your local BRP dealership

503189097

$248.43

27

Tie-Rap 180 mm

414115200

$0.09

28

Socket Head Screw M4 X 12

205041254

$2.02

29

Washer

517124300

$0.16

30

Pop Rivet 3/16"

390402200

$0.26

31

Hose 4.32Mm 3000Mm Long

219704415

$44.17

32

CAP - Call your local BRP dealership

503191826

Unavailable

33

Sliding Pad

503192731

Unavailable

34

SOCKET SCREW HEAD FLANGE M6 X 35 - Call your local BRP dealership

250000406

$5.80

35

Flat Washer

224061121

$0.44

36

Elastic Stop Nut M6

232561414

$1.55

37

Clamp

293650256

$4.36

38

Torx Screw M5 X 14

235551494

$7.31

39

Hex. Flange Elastic Nut M5

233251414

$1.66

40

Tie-Rap 180 mm

414115200

$0.09

41

AIR SUSPENSION BRACKET - Call your local BRP dealership

518326391

$15.35

42

Rivet 3/16"

293150102

$0.71
