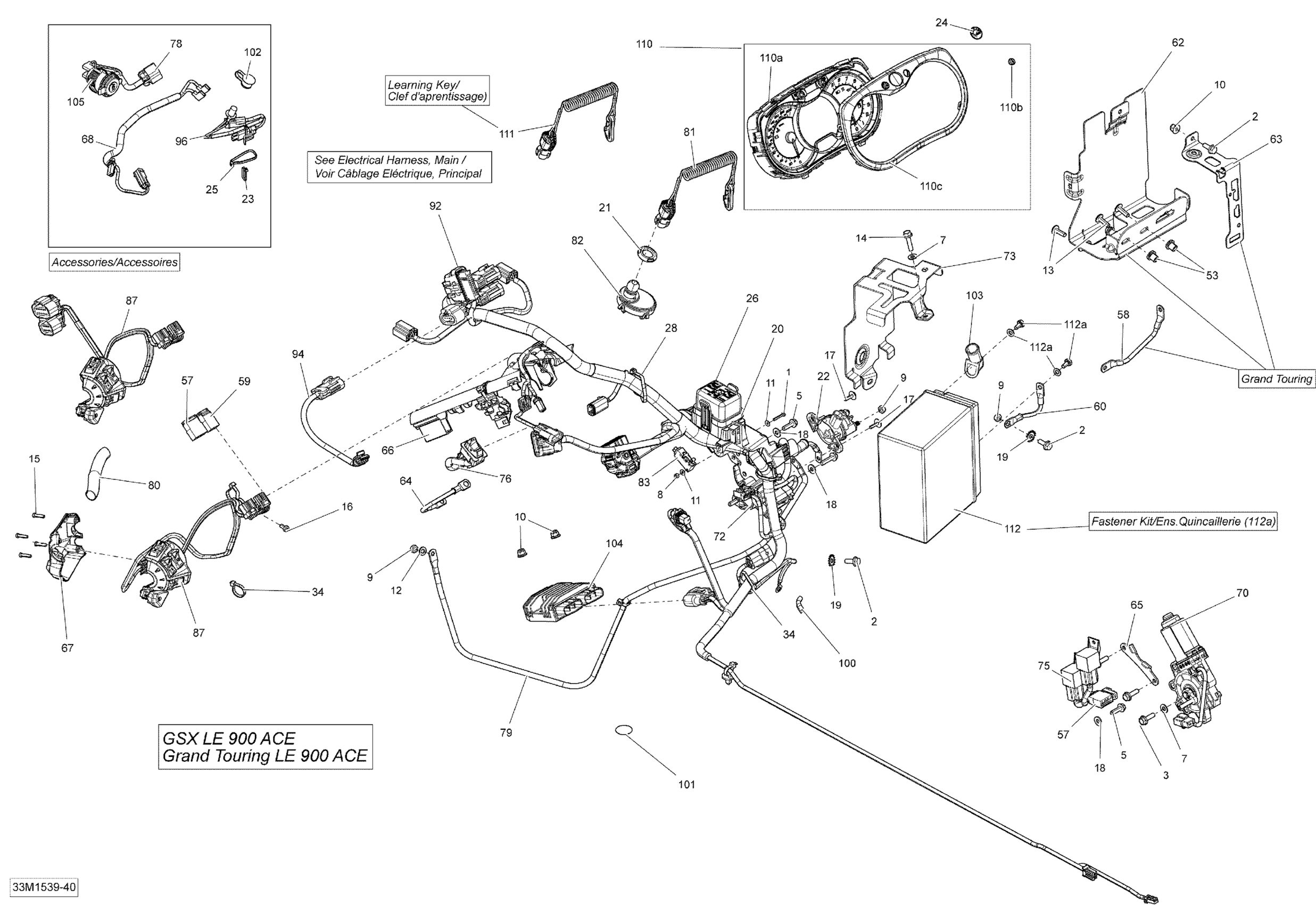

Ski-Doo Grand Touring LE 900ACE XR137, 2015 Electrical System _33M1540 Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.06

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

5

Hex. Flange Screw M6 X 20

210262040

Unavailable

7

Flat Washer

224061121

$0.44

8

Elastic Stop Nut M3

232531423

$0.54

9

Elastic Stop Nut M6

232561434

$1.55

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Flat Washer M3, Stainless

234032600

$0.54

12

Flat Washer 6 mm

234061410

Unavailable

13

Hex. Socket Screw M6 X 20

250000770

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Torx Screw

250000671

Unavailable

16

Pan Screw Forming, 7500C

250000690

Unavailable

17

Screw M4 X 16

250000725

Unavailable

18

Flat Washer

250200039

Unavailable

19

Lock Washer Serrated M6

250200041

Unavailable

20

Case Ass'y with seal, 24 positions

278002824

$29.22

21

Safety Nut (DESS Switch)

278002963

$2.72

22

Starter Relay

278003012

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

25

Tie Wrap 142 mm

293750002

Unavailable

26

Fuse Box Cover

515177671

$10.88

28

Tie Wrap 368 mm

293750008

$0.85

34

Tie-Rap 180 mm

414115200

$0.09

53

Insert

293450275

Unavailable

57

Male Terminal Housing, 6 Circuits

515175662

Unavailable

58

Ground Wire

515175749

$19.20

59

Male Terminal Housing, 4 Circuits

515175846

$8.57

60

Not Available As Spare Parts

XXX

Unavailable

62

BATTERY SUPPORT - Call your local BRP dealership

515176970

$61.51

63

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

64

Ground Wire

515177014

$15.35

65

PLATE - Call your local BRP dealership

515177039

$13.95

66

Not Available As Spare Parts

XXX

Unavailable

67

Housing Plate

515177147

$17.66

68

Harness Accessories

515177188

$35.35

70

Electrical Motor Ass'y

515178574

Unavailable

72

Plate

515177347

$13.82

73

Not Available As Spare Parts

XXX

Unavailable

75

Reverse Harness | Reverse Harness

515177350

$58.43

76

Switch

515177394

$75.35

78

Not Available As Spare Parts

XXX

Unavailable

79

Battery Wire

515177427

$29.20

80

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

81

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

82

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

83

Switch Ass'y

515177460

$47.99

87

LH Switch Housing

515178197

$259.20

92

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To VSS

515177753

Unavailable

94

WIRING HARNESS MAIN - Call your local BRP dealership

515177803

$26.89

96

Visor Harness

515177837

$32.28

100

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

101

Adhesive Patch

518325560

Unavailable

102

Cap

572103300

$9.65

103

Protector Cap

710000495

Unavailable

104

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

105

DC Outlet

710001248

$31.17

110

Indicator | Except Package SWT

515177913

$535.35

110a

Speedometer Button | XTP

415129355

Unavailable

110b

Gauge Ring

415129348

Unavailable

110c

Lens | XTP

415129349

Unavailable

111

Key

860201162

$69.20

112

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

112a

Battery Bolt Kit

250000282

$2.95
