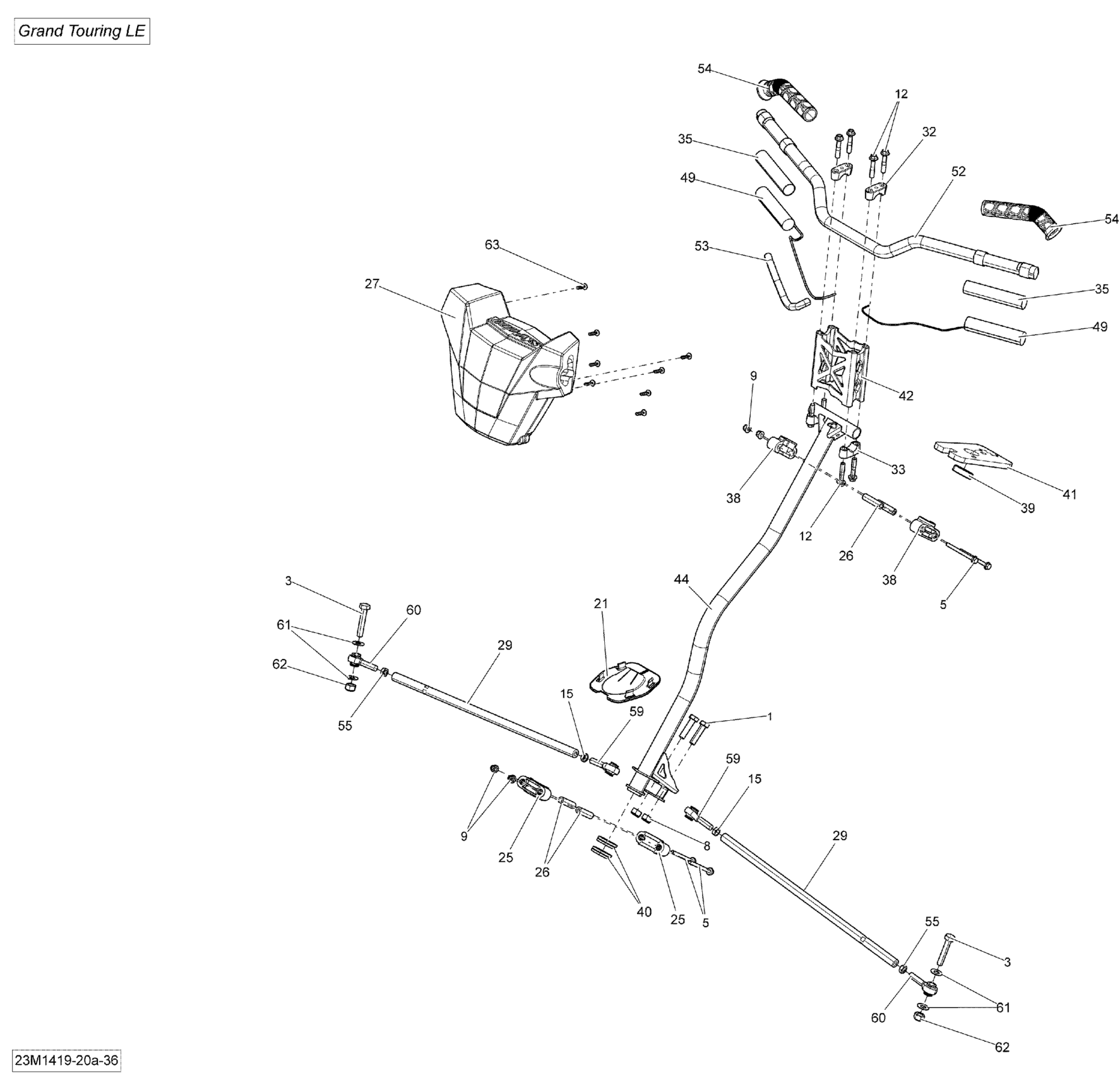

Ski-Doo GRAND TOURING LE 900 ACE XR, 2014 Steering Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

3

Hex Screw M10 X 1.5 X 55

207005554

$7.09

5

Hex. Flange Screw M6 X 70

207667056

$4.15

8

Elastic Stop Nut M10

232500416

$1.79

9

Elastic Flange Nut M6 X 1.0

233261416

$2.00

12

Hex. Flange Screw M8 X 40

250000352

$3.16

15

LH Threaded Hex. Jam Nut M10

250100016

$0.70

21

Plate

506152163

$9.93

25

Lower Half-Housing

506152217

$5.40

26

Housing Bushing

506152297

$9.93

27

STEERING PAD (ADJUSTABLE) - Call your local BRP dealership This part replaces 506152307.

506152679

Unavailable

29

Tie-Rod Ass'y

506152496

$58.18

32

Steering Support | Includes 40 to 40a

506152751

$11.58

33

Steering Support | Includes 40 to 40a

506152751

$11.58

35

Insulant

506153178

$9.93

38

Upper Half-Housing

506152508

$7.18

39

Upper Anti-Vibration Gasket

506152509

$4.39

40

Lower Vibration Ring

506152518

$4.39

41

Bushing

506152521

$13.19

42

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

44

Steering Column

506152964

$183.55

49

HEATED FILM - Call your local BRP dealership

506152681

Unavailable

52

Black Handle Bar

506152711

$99.97

53

Not Available As Spare Parts

XXX

Unavailable

54

Grip

506152501

$9.88

55

RH Threaded Hex. Jam Nut M10

732610010

$0.70

59

LH Thread Ball Joint

506152081

$38.78

60

RH Threaded Ball Joint

506152019

$38.78

61

Washer

506152582

$4.28

62

Elastic Locking Nut M10

233601466

$2.00

63

Screw PT Type K-50 X 16

250000959

$2.00
