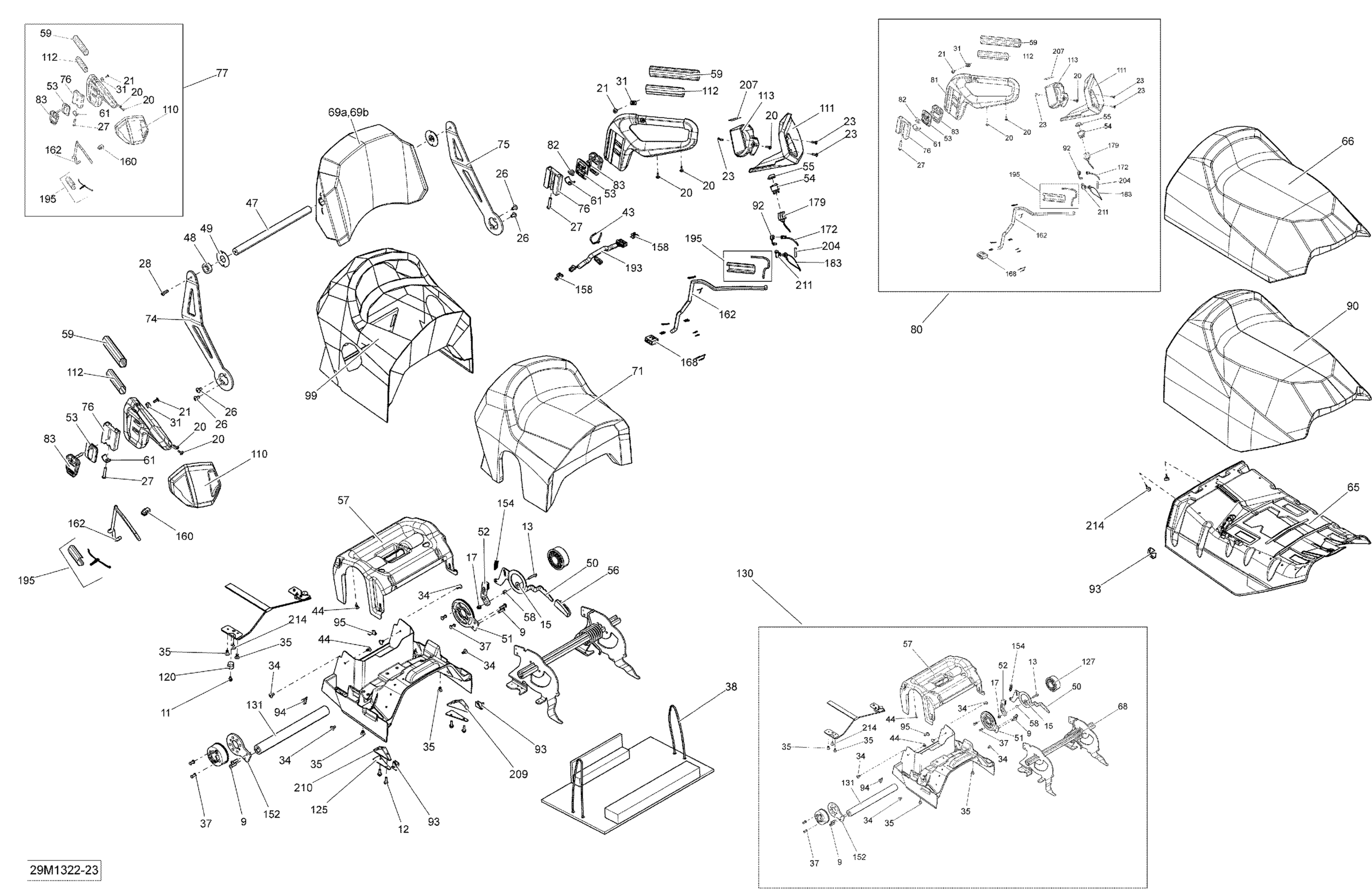

Ski-Doo GRAND TOURING LE 600HOE XR, 2013 Seat Diagram

#

Description
Price

9

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

11

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

12

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

13

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

15

Flat Washer

224061201

$1.27

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

20

Screw M4 X 16

250000725

$3.30

21

Torx Truss Screw M6 X 16

250000721

$1.60

23

Torx Screw K50 X 16

250000720

$1.60

26

Torx Truss Screw M8 X 16

250000746

$3.19

27

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

28

Torx Truss Screw M8 X 16

250000746

$3.19

31

Nut Welded, M6

293100003

$7.25

34

Pop Rivet 3/16"

293150100

$1.04

35

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

37

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

38

Tie Wrap 368 mm

293750008

$0.97

43

Tie-Rap 180 mm

414115200

$0.10

44

Black, Dart

414644300

$0.90

47

Upper Backrest Axle

510004377

$44.00

48

Rubber Shim

510004378

$8.36

49

Washer

510004379

$8.69

50

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

51

Sprocket

510004391

$27.58

52

Adjustment Pivot

510006338

$20.12

53

Passenger Handle Trim

510006602

$11.36

54

Rocker Switch

510004413

$8.31

55

Switch Protector

510004414

$7.15

56

GRIP - Call your local BRP dealership

510004419

Unavailable

57

Foam Support

510004423

$35.04

58

BUSHING - Call your local BRP dealership

510004425

Unavailable

59

Handle Grip

510004449

$10.33

61

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

65

Front Seat Base

510004775

$85.79

66

Front Seat Foam

510004777

$224.99

69a

Backrest Foam

510004782

$129.99

69b

BACKREST COVER - Call your local BRP dealership

510005353

$164.99

71

Rear Seat Foam

510004791

$299.99

74

RH Arm

510005464

$85.79

75

LH Arm

510005465

$85.79

76

HANDLE LINK - Call your local BRP dealership

510004798

$29.07

77

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 140 to 140,051

510005854

Unavailable

80

LH Handle Ass'y | Includes 150a to 150a16

510006709

$244.99

82

Stopper Block

510004804

$17.88

83

Lever Lock Ass'y

510004806

$29.07

90

Front Seat Cover

510005685

$219.99

92

Cap

510004950

$12.67

93

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

94

RH REAR CORNER SEAT - Call your local BRP dealership

510004964

Unavailable

95

LH REAR CORNER SEAT - Call your local BRP dealership

510004965

Unavailable

99

REAR SEAT COVER - Call your local BRP dealership

510005694

Unavailable

110

RH Air Deflector

510005009

$26.84

111

LH Air Deflector

510005010

$26.84

112

Handle Reinforcement

510005011

$17.88

113

Switch Housing

510005036

$17.13

120

SEAT STUD - Call your local BRP dealership

510005095

$23.85

125

SPACER - Call your local BRP dealership

510005216

Unavailable

130

Seat Base Ass'y | Includes 20,001 to 20,001u

510005688

$429.99

131

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

152

LINK PLATE - Call your local BRP dealership

510005568

Unavailable

154

Spring

514053643

$6.01

158

Housing Support

515175283

$8.18

160

Male Housing, 3 Circuits

515175494

$14.90

162

Was 515175506 Tubing

219704426

$132.06

168

Male Connector

515176033

$14.90

172

WIRING HARNESS_HEATED SOLE - Call your local BRP dealership

515177018

$24.60

179

Handle Harness

515176697

$27.58

183

Visor Connector Harness

515176698

$27.58

193

Seat Harness

515176766

$37.28

195

Heated Element

515176999

$66.39

204

VISOR AND LINER DECAL - Call your local BRP dealership

516003612

Unavailable

207

Heated Handle Decal

516003816

$10.04

209

LH Seat Anchor

518325709

$34.30

210

RH Seat Anchor

518325710

$34.30

211

Cap

572103300

$9.36

214

Rubber Stopper

708000759

$4.15
