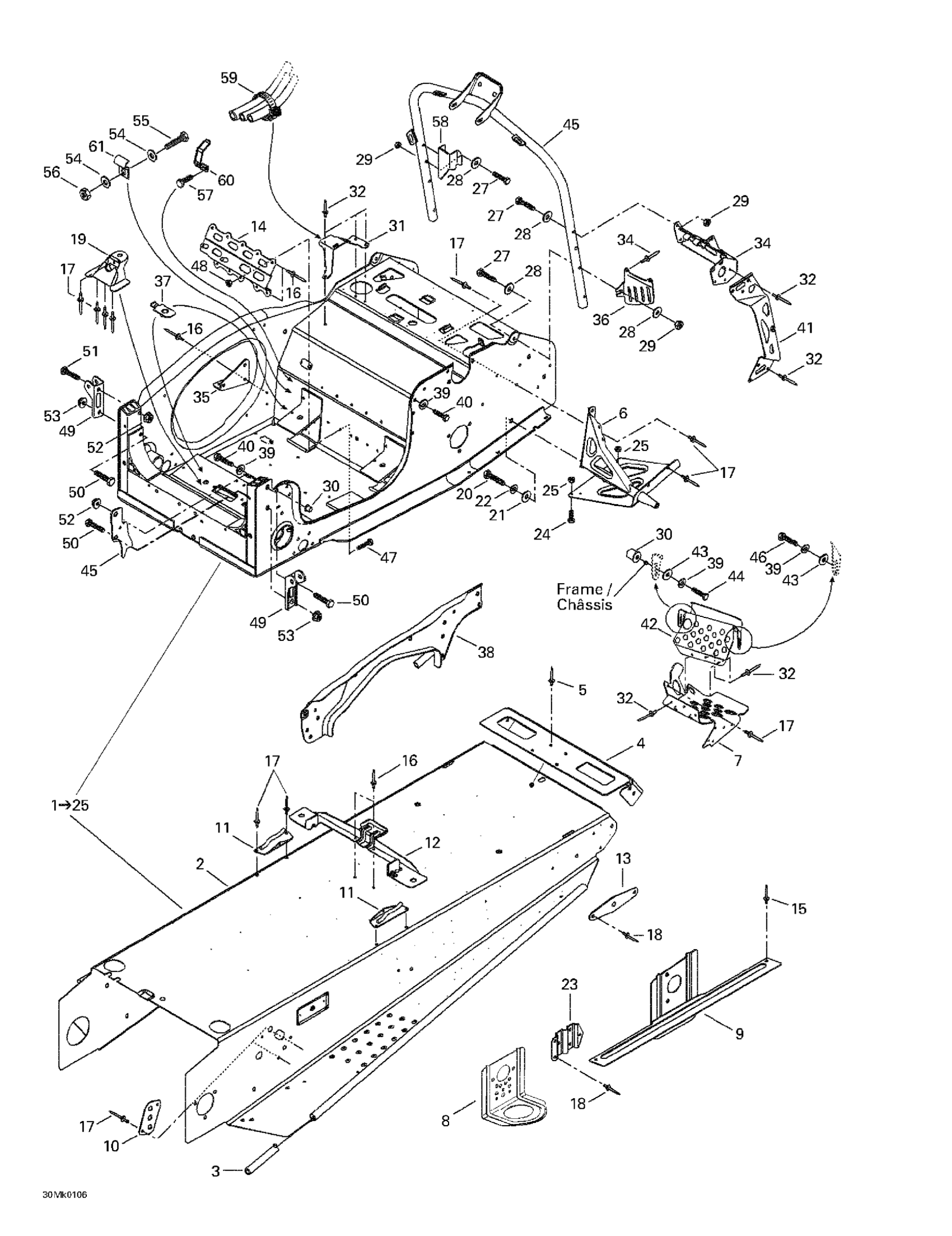

Ski-Doo Grand Touring 800 SE, 2001 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 25. (Radiator Included)

518322495

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518321302

Unavailable

5

Pop Rivet 3/16"

390402200

$0.26

6

RH Footrest Support

518317522

Unavailable

LH Footrest Support

518317523

Unavailable

7

RH Footrest

518321433

Unavailable

LH Footrest

518321434

Unavailable

8

Front Bracket

518321495

Unavailable

9

RHRear Bracket

518322134

Unavailable

LH Rear Bracket

518322138

Unavailable

10

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

11

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

12

Seat Bracket

518317506

Unavailable

13

Rear Reinforcement

518316767

Unavailable

14

Steering Support

518322282

Unavailable

15

Rivet Avex

309909200

Unavailable

16

Avex Rivet

390909100

$0.29

17

Pop Rivet 3/16"

390402200

$0.26

18

Pop Rivet 3/16"

390402400

Unavailable

19

Pivot Arm Support

518317509

Unavailable

20

Hex. Screw M10 X 35

207103544

Unavailable

21

Flat Washer 10 mm

234001410

Unavailable

22

Lock Washer M10

234101402

Unavailable

23

Protector Guide

518317562

Unavailable

24

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Handle Steering Support

518321511

Unavailable

27

Hex. Flange Screw M6 X 35

207063544

$1.35

28

Flat Washer

224061121

$0.44

29

Elastic Stop Nut M6

232561414

Unavailable

30

Insert

293450275

Unavailable

31

Guide

518317556

Unavailable

32

Pop Rivet 3/16"

390402200

$0.26

33

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

34

RH Upper Bracket

518321572

Unavailable

LH Upper Bracket

518317543

Unavailable

35

Muffler Support

518317553

Unavailable

36

Belt Protector

518317572

Unavailable

37

Plate

518317507

Unavailable

38

Strap

518317515

Unavailable

39

Lock Washer M6, Black

234161471

$0.52

40

Hex. Screw M6 X 18

207161844

Unavailable

41

RH Vertical Bracket

518317520

Unavailable

LH Vertical Bracket

518317521

Unavailable

42

RH Holding Toe

518317531

Unavailable

LH Holding Toe

518317532

Unavailable

43

Flat Washer

224061201

Unavailable

44

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

45

Heat Shield

518321421

Unavailable

46

Hex. Screw M6 X 16

207161644

Unavailable

47

Hex. Screw M5 X 14

207151444

Unavailable

48

Elastic Stop Nut M5

232551414

Unavailable

49

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

50

Hex. Screw M8 X 50

207085044

Unavailable

51

Hex. Screw M8 X 55

207085544

$1.62

52

Hex. Flange Elastic Nut M8

233281414

Unavailable

53

Hex. Elastic Stop Nut M8

232581414

Unavailable

54

Washer | DS 650 X

391301600

Unavailable

55

Hex. Screw M5 X 14

207151444

Unavailable

56

Elastic Stop Nut M5

232551414

Unavailable

57

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

58

Cable Support

515175149

Unavailable

59

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

60

Tubing 6 mm

515175422

Unavailable
