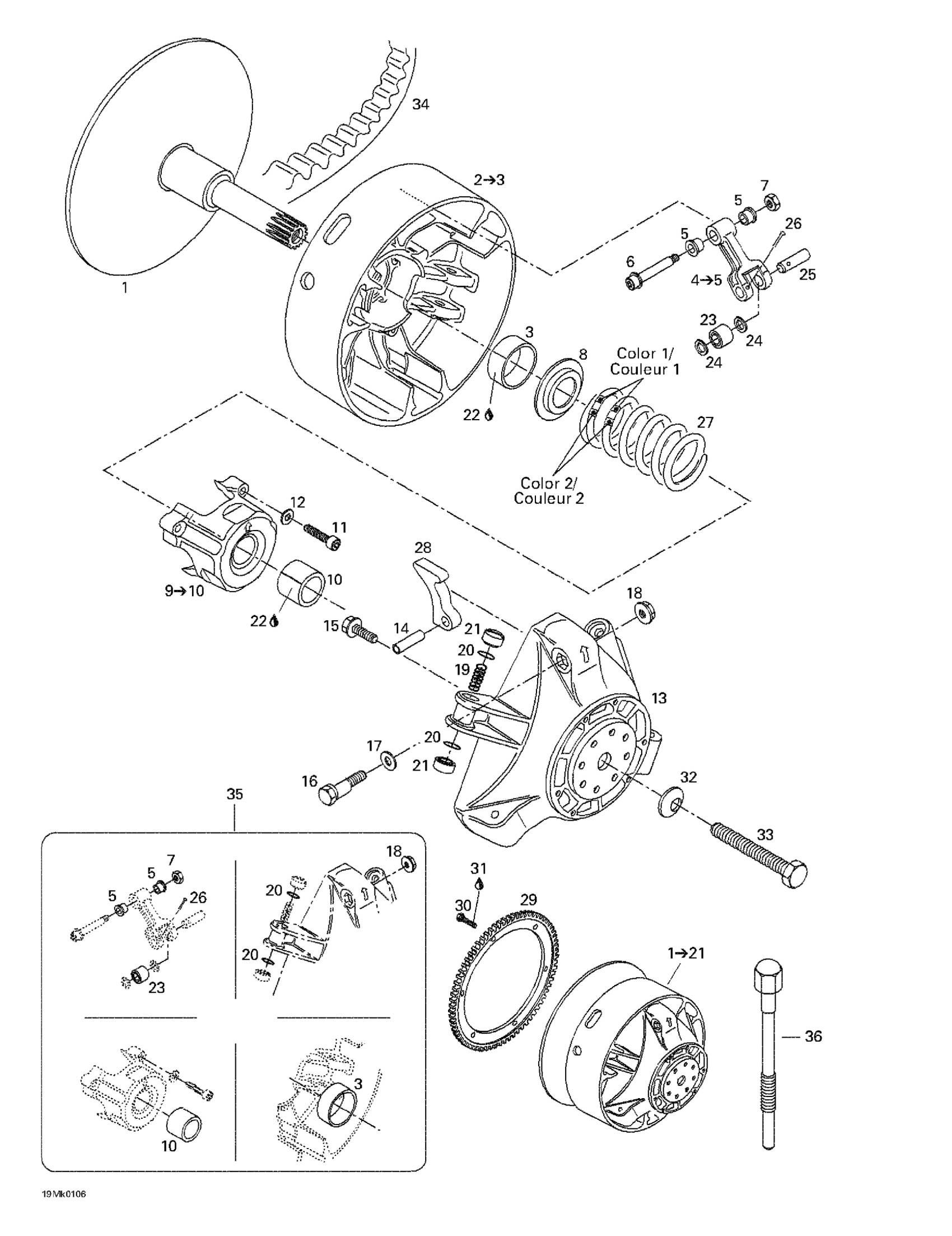

Ski-Doo Grand Touring 800 SE, 2001 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 21.

417222365

Unavailable

1

Fixed Flange

417222411

Unavailable

2

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

3

Bushing

417004201

Unavailable

4

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

10

Bushing

417004501

Unavailable

11

Socket Screw M6 X 40

205064086

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Governor Cup

417222059

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.86

18

Hex. Flange Nut M6

233061414

Unavailable

19

Spring

417005700

Unavailable

20

O-Ring

732401030

$0.95

21

Slider Shoe This part replaces 420460045.

417223021

$6.09

22

Loctite 609, 10 ml

413703100

$24.58

23

Roller

417222947

$19.97

24

Stopper Washer

417004302

$15.99

25

Pin

417004308

Unavailable

26

Cotter Pin

250400060

$1.60

27

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

28

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

29

Ring Gear 86Th

417009400

Unavailable

30

Hex. Screw M8 X 16

236281684

Unavailable

31

Loctite 271, 10 ml

293800005

Unavailable

32

Spring Washer 14 mm

250200006

Unavailable

33

Drive Pulley Bolt

417120000

$63.82

34

Drive Belt

417300066

Unavailable

35

Clutch Repair Kit

417006100

Unavailable

36

Puller This part replaces 529022400.

529000064

Unavailable
