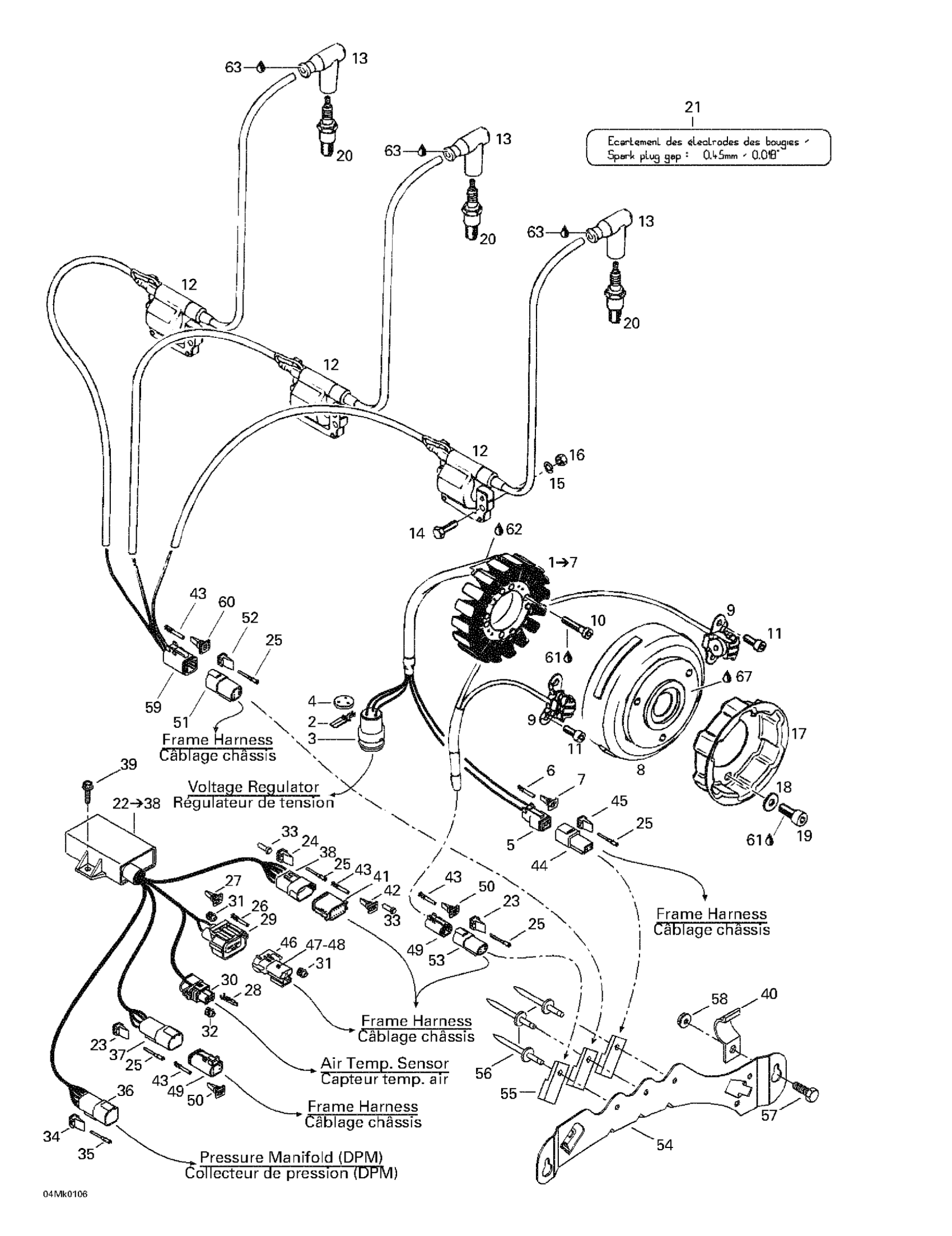

Ski-Doo Grand Touring 800 SE, 2001 Magneto 12V 360W Diagram

#

Description
Price

1

STATOR PLATE ASS'Y - Call your local BRP dealership | Includes 1 - 7.

410922907

Unavailable

2

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

3

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

Female Terminal Housing (4 circuits)

515175245

Unavailable

6

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

7

Female Lock (4 circuits)

515175246

Unavailable

8

Flywheel

410922908

Unavailable

9

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

10

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

11

Allen Screw M6 X 14

420840391

Unavailable

12

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

13

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

14

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Hex. Nut M6

232061414

$0.44

17

Starting Pulley

420852418

Unavailable

18

Flat Washer

420827405

$1.66

19

Socket Head Screw M8 X 12

420841520

$1.68

20

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

21

Spark Plug Decal

516000986

Unavailable

22

Calibration Module | Includes 22 - 38.

512059288

Unavailable

23

Female Wedge, 4 Circuits

278000636

$4.12

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Male Terminal

278000631

$4.12

26

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Female Terminal

278000998

$3.48

29

Female Connector Housing (2 Circuits)

409206500

Unavailable

30

Male Housing, 2 Circuits

278001005

$15.57

31

Seal

409208300

Unavailable

32

Wire Seal

278000999

$2.55

33

Sealing Cap

293000052

Unavailable

34

Male Lock, 6 Circuits

409014600

Unavailable

35

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

40

Bracket

517274400

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Female Terminal

278000632

Unavailable

44

Male Housing, 2 Circuits

409206900

Unavailable

45

Male Lock, 2 Circuits

409207500

$3.02

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Male Terminal

409010900

Unavailable

49

Male Connector, 4 Circuits | CE

278000739

$14.92

50

Male Lock, 4 Circuits | CE

278000738

$2.91

51

Fuse Holder 8 Amp

278000137

Unavailable

52

Female Lock, 6 Circuits

278000735

$3.02

53

Female Housing, 4 Circuits

278000635

$14.02

54

Housing Support

515175148

Unavailable

55

Clip

270000141

$8.33

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Hex. Screw M5 X 14

207151444

Unavailable

58

Hex. Flange Elastic Nut M5

233251414

Unavailable

59

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

60

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

61

Loctite 243, 10 ml

293800060

$20.77

62

Silicone Sealant 51388, 300 ml

296000309

Unavailable

63

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
