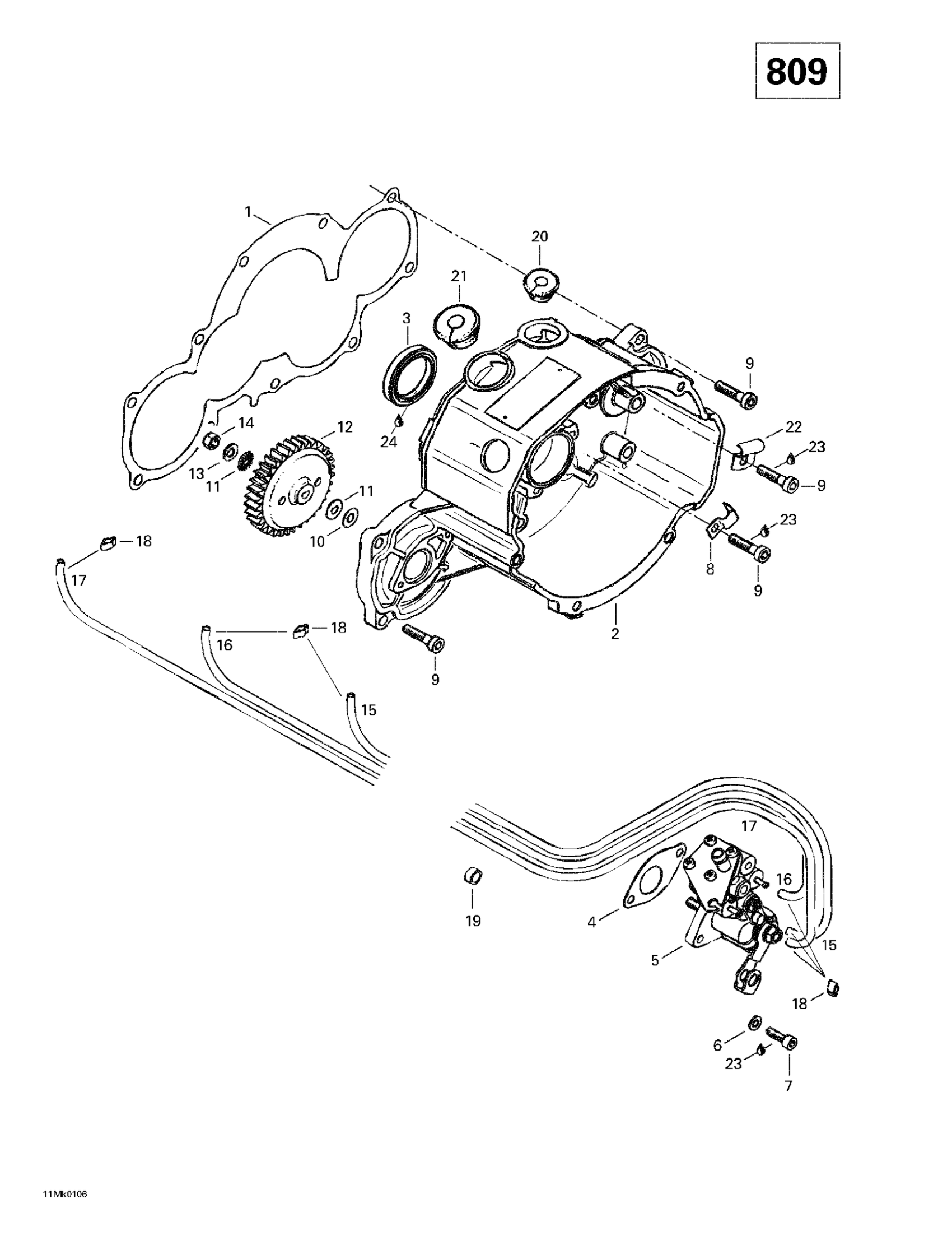

Ski-Doo Grand Touring 800 SE, 2001 Ignition Housing Oil Pump Diagram

#

Description

Price

1

GASKET 0.8 MM - Call your local BRP dealership

420950284

Unavailable

2

Ignition Housing

420811510

Unavailable

3

OIL SEAL - Call your local BRP dealership

420931290

Unavailable

4

Gasket

420950460

Unavailable

5

Oil Pump Ass'y

420887935

Unavailable

6

Lock Washer

420945750

Unavailable

7

Allen Screw M5 x 16

420640071

Unavailable

8

Cable Clamp

420953387

Unavailable

9

Allen Screw M6 x 25

420941691

Unavailable

10

Flat Washer

420244215

Unavailable

11

Washer

420227150

Unavailable

12

Oil Pump Gear (36 Tooth)

420834270

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Elastic Stop Nut M6

232561414

Unavailable

15

Oil Hose 1500Mm Long

219704404

Unavailable

16

Oil Hose 1500Mm Long

219704404

Unavailable

17

Oil Hose 1500Mm Long

219704404

Unavailable

18

Clamp

420256408

Unavailable

19

Rubber Ring

420960700

Unavailable

20

Cable Grommet

420860967

Unavailable

21

Cable Grommet

420860965

$13.58

22

Clamp

420953382

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Dow Corning 111, 150 g

413707000

$57.82
