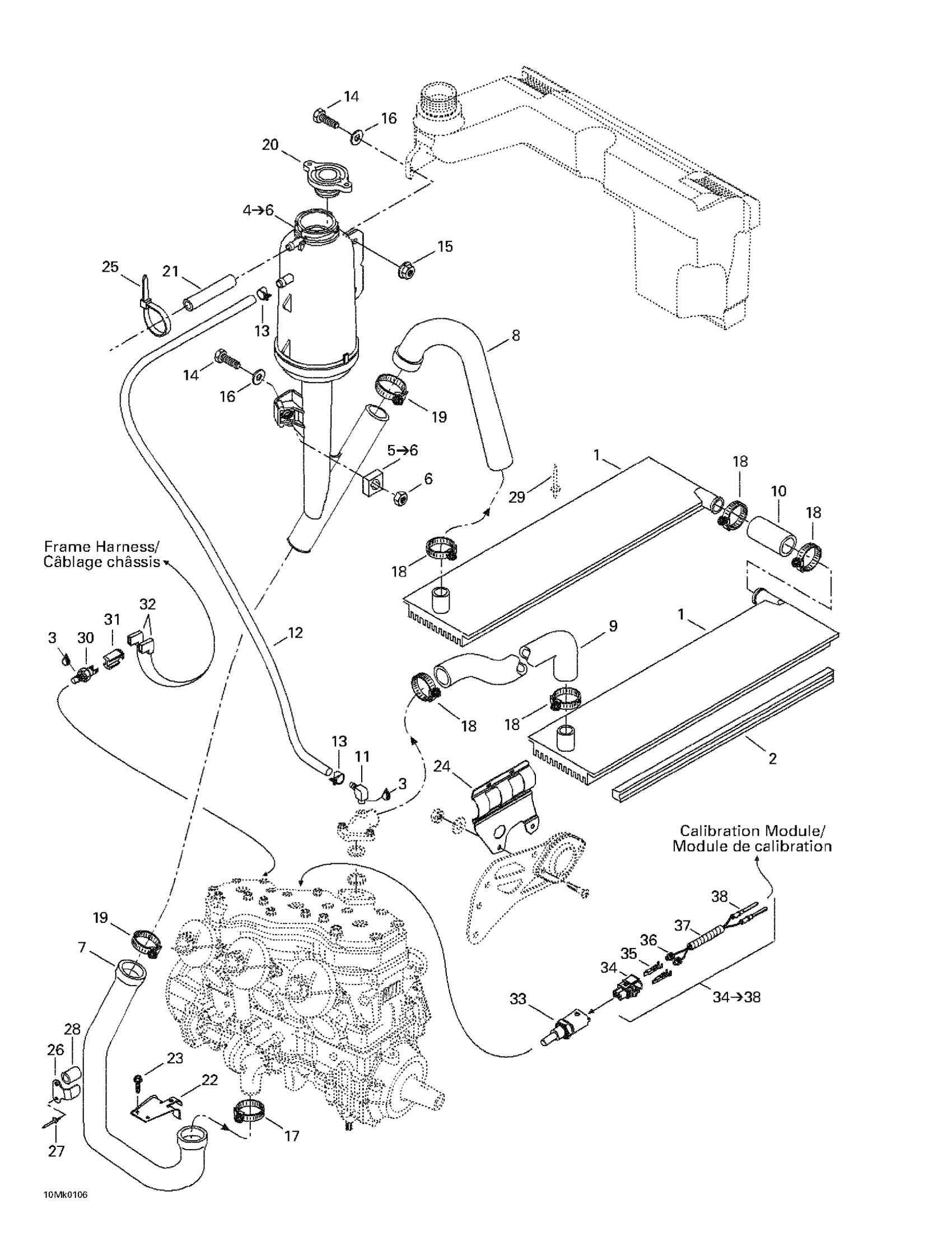

Ski-Doo Grand Touring 800 SE, 2001 Cooling System Diagram

#

Description
Price

1

RH Radiator

518322340

Unavailable

LH Radiator

518322345

Unavailable

2

Protector

518322344

Unavailable

3

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

4

Coolant Tank Ass'y | Includes 4 - 6.

509000079

Unavailable

5

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

6

Hex. Nut M6

232061600

Unavailable

7

Engine Inlet Hose

509000026

Unavailable

8

Radiator Outlet Hose

415047000

Unavailable

9

RADIATOR INLET HOSE - Call your local BRP dealership

415047100

Unavailable

10

Radiator Connecting Hose

509000109

Unavailable

11

Elbow Fitting 90°

293700020

Unavailable

12

Hose 8 mm

509000093

Unavailable

13

Spring Clamp

414655700

Unavailable

14

Hex. Screw M6 X 25

207162544

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Flat Washer

224061121

$0.44

17

Norma Gear Clamp

293650098

Unavailable

18

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

19

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

20

Pressure Cap

509000187

Unavailable

21

Polyurethane Hose 10000Mm Long

219704410

Unavailable

22

Hose Protector

509000037

Unavailable

23

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

24

HOSE PROTECTOR - Call your local BRP dealership

509000042

Unavailable

25

Tie-Rap 180 mm

414115200

$0.09

26

Bracket

509000101

Unavailable

27

Avex Rivet

390909100

$0.29

28

Protector

509000113

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

31

Connector Plug | Grand Touring 500.

515175297

Unavailable

32

Female Terminal

409010300

$4.12

33

Temperature Sensor

278002895

$31.82

34

Engine/DPM Temperature Harness | Includes 34 - 38.

515175587

Unavailable

34

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

35

Female Terminal

278000998

$3.48

36

Wire Seal

278000999

$2.55

37

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

38

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97
