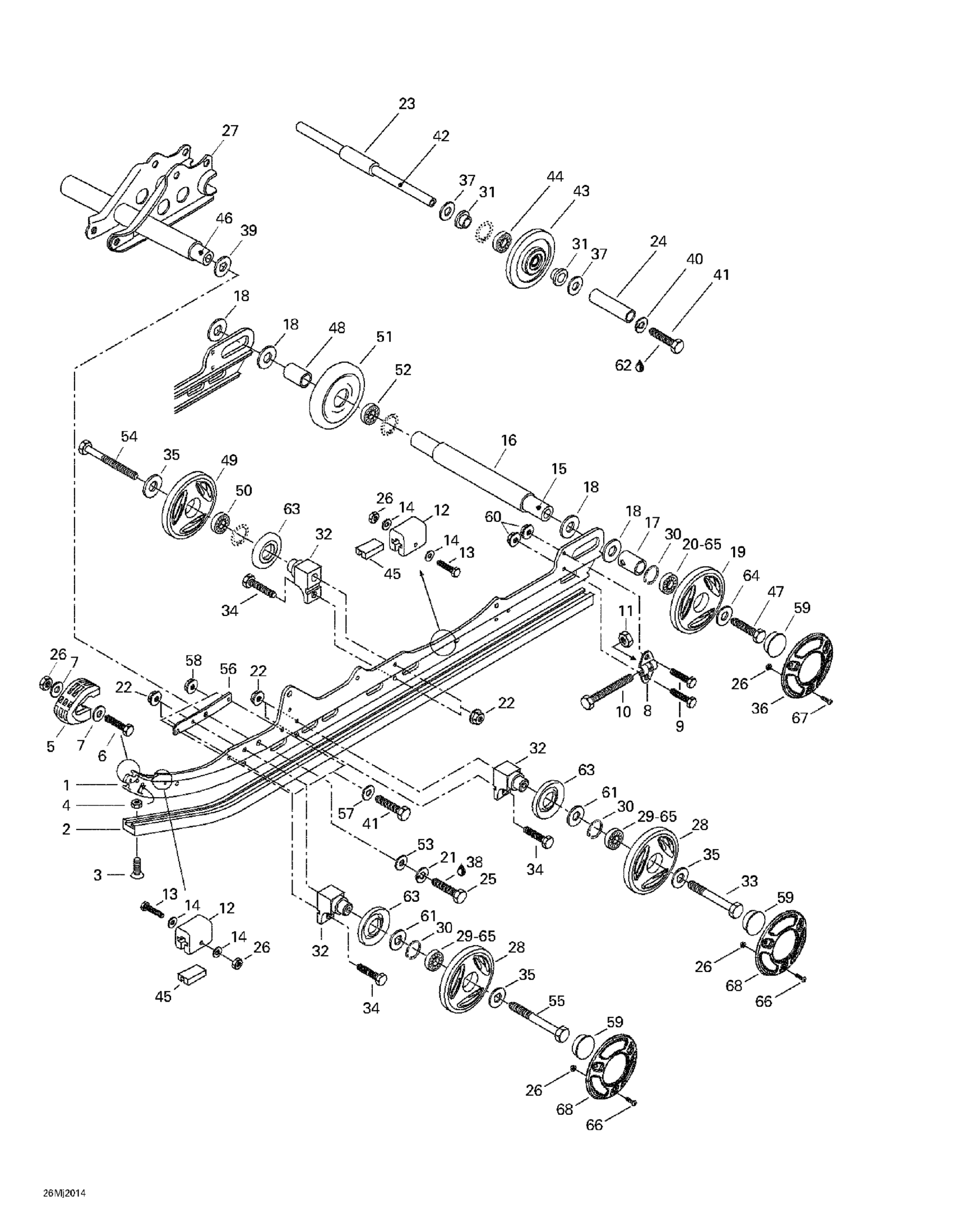

Ski-Doo Grand Touring 700, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner

503188979

Unavailable

2

RUNNER SHOE - Call your local BRP dealership

560103500

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$129.20

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$15.35

18

Washer

503180400

$3.37

19

Wheel 165 mm

503190856

Unavailable

19

Wheel 165 | Includes 19 - 20. GT SE Millennium Edition.

503189508

Unavailable

19

Wheel 165 (Red) | GT SE.

503188948

Unavailable

20

Ball Bearing

293350115

Unavailable

21

Lock Washer 12 mm

234120602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

Hex. Screw M12 x 40

207124044

Unavailable

26

Elastic Stop Nut M5

232551414

Unavailable

27

Welded Shock Support

503188976

Unavailable

28

Wheel 139 (Full Moon) | Includes 30 - 31.

503189375

Unavailable

28

Cap Wheel 139 mm | (Full Moon) B-211 (SE) Grand Touring 600. Grand Touring 800.

503189507

Unavailable

28

Wheel 139 (Red) | GT SE.

503188947

Unavailable

29

Ball Bearing

293350115

Unavailable

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

34

Hex. Screw M8 X 25

207182544

Unavailable

35

Washer

503183100

$3.08

36

Chrome Cap

503189510

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Loctite 271, 10 ml

293800005

Unavailable

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

Unavailable

45

Reinforcement Stopper

572084800

$5.25

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Inner Spacer

503182900

$10.18

49

Wheel 139 mm Ass'y

503190798

Unavailable

50

Ball Bearing

293350115

Unavailable

51

Wheel 165" | Includes 670 to 670b

503194127

$49.97

52

Ball Bearing

293350115

Unavailable

53

Flat Washer 12 mm

234021410

$0.68

54

Hex. Screw M8 X 80

207088044

Unavailable

55

Hex. Screw M8 X 90

207089044

$2.82

56

Reinforcement Plate

503189060

Unavailable

57

Flat Washer 8 mm

234081410

Unavailable

58

Hex. Flange Elastic Nut M8

233281414

Unavailable

59

Wheel Cap

570063600

Unavailable

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

61

WASHER - Call your local BRP dealership

503173700

Unavailable

62

Loctite 243, 10 ml

293800060

$20.77

63

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

64

Washer

503183300

$5.68

65

Ball Bearing

293350115

Unavailable

66

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership | Grand Touring 600. Grand Touring 800.

208652060

Unavailable

67

Phillips Screw M5 X 25

208652560

Unavailable

68

Chrome Cap

503189509

Unavailable
