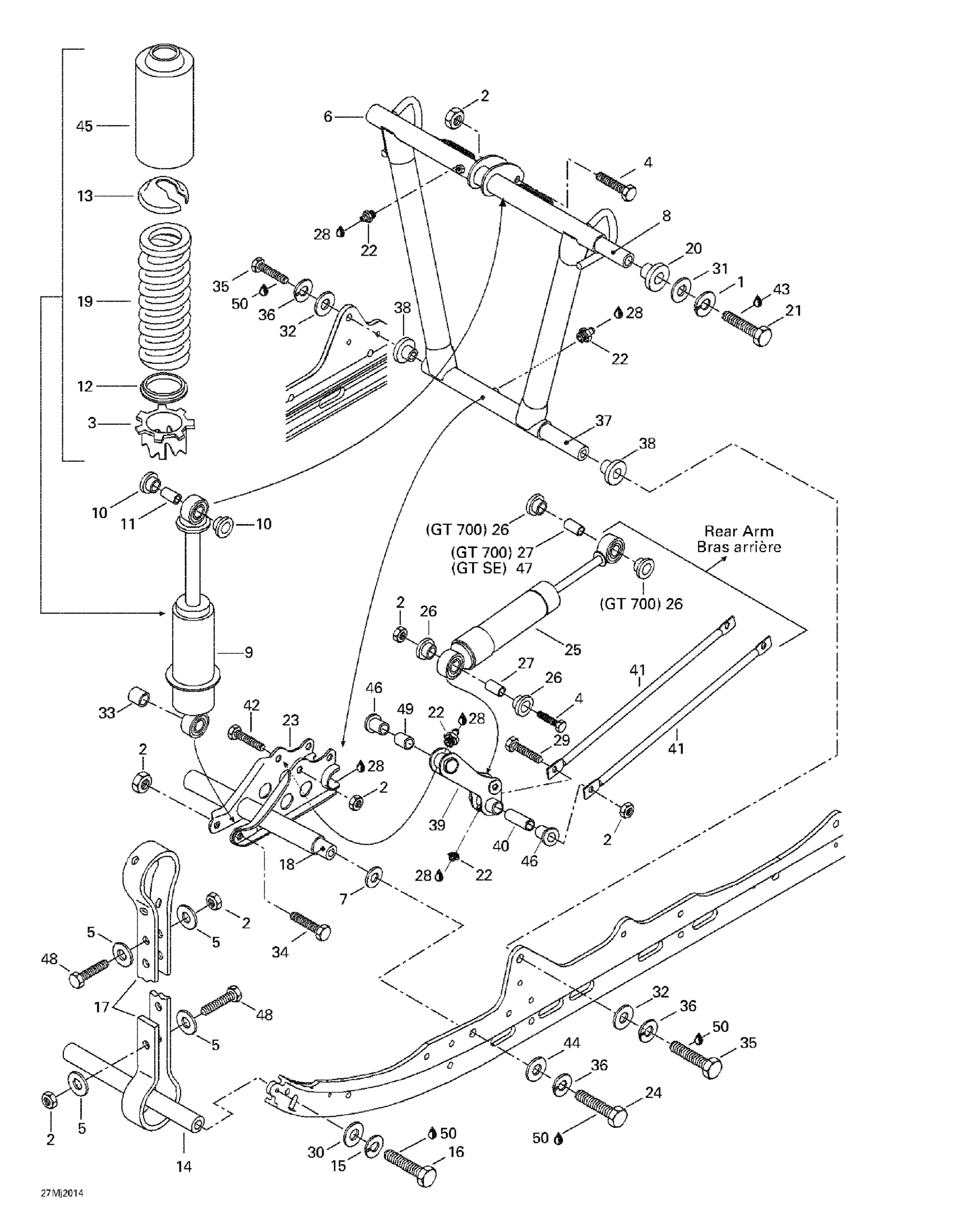

Ski-Doo Grand Touring 700, 2000 Front Arm Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
Cam
503169000
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503171100
Unavailable
7
Hardened Washer
503175400
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock | Includes 9 - 11.
415102300
Unavailable
10
Bushing
503189364
Unavailable
11
Bushing
503189363
Unavailable
12
Spring Guide
572092600
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
STOPPER STRAP - Call your local BRP dealership
503190782
Unavailable
18
Lower Axle
503174900
Unavailable
19
Spring
415057600
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support
503188976
Unavailable
24
Hex. Screw M12 x 40
207124044
Unavailable
25
Rear Shock
415102400
Unavailable
Shock | GT SE. GT SE Millennium Edition.
503189095
Unavailable
26
Bushing
503189364
Unavailable
27
Bushing
503189363
Unavailable
28
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
30
Flat Washer 8 mm
234081410
Unavailable
31
Flat Washer 10 mm
234001410
Unavailable
33
Cushion
414917900
Unavailable
35
HEX. SCREW M12 X 60 - Call your local BRP dealership
207026044
Unavailable
36
Lock Washer 12 mm
234120602
Unavailable
37
SHAFT - Call your local BRP dealership
503189313
Unavailable
38
CUSHION - Call your local BRP dealership
503189323
Unavailable
39
Lever
503171400
Unavailable
40
Tie Rod Shaft
503171600
Unavailable
41
Tie Rod
503184900
Unavailable
42
Hex. Screw M8 X 50
207085044
Unavailable
45
Protector
503193663
Unavailable
46
Plastic Cushion
415052300
Unavailable
47
Bushing
414936000
Unavailable
48
Hex. Screw M8 X 25
207182544
Unavailable
49
Pivot Axle
503171700
Unavailable
50
Loctite 271, 10 ml
293800005
Unavailable
