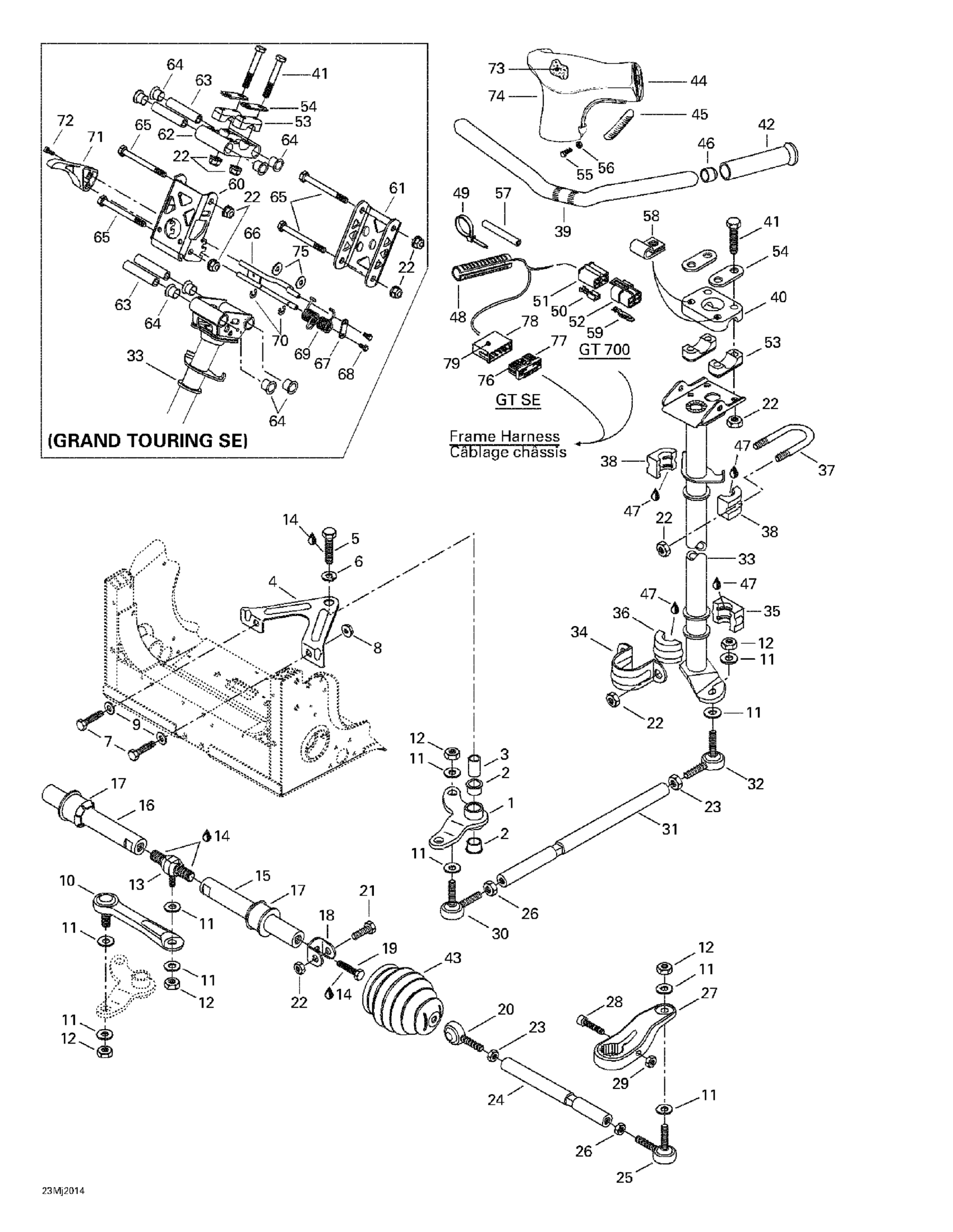

Ski-Doo Grand Touring 700, 2000 Steering System Diagram

#

Description
Price

1

Pivot Arm

506129500

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

Pivot

506131500

Unavailable

4

PIVOT SUPPORT - Call your local BRP dealership

506138400

Unavailable

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Lock Washer Helical M10

234101411

Unavailable

7

Hex. Screw M6 X 60

207066044

$0.56

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Flat Washer

224061121

$0.44

10

Ball Stud Lever

415059800

Unavailable

11

Washer

503175800

$3.26

12

Elastic Flange Nut M10

232501416

Unavailable

13

Ball Joint (Double)

415053300

Unavailable

14

Loctite 271, 10 ml

293800005

Unavailable

15

Sliding Bar (Short)

506129400

Unavailable

16

Sliding Bar (Long)

506129402

Unavailable

17

Cushion

572108500

Unavailable

18

Bracket

506138300

Unavailable

19

Hex. Screw M10 X 25

207102544

Unavailable

20

LH Ball Joint

415048600

Unavailable

21

Hex. Screw M8 X 40

207084044

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

24

Tie-Rod

506129600

Unavailable

25

Ball Joint

506151491

Unavailable

26

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

27

RH Steering Arm

506151320

Unavailable

RH Steering Arm | GT SE Millennium Edition.

506151300

Unavailable

LH Steering Arm

506151321

Unavailable

LH Steering Arm | GT SE Millennium Edition.

506151301

Unavailable

28

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

31

Tie Rod

506131200

Unavailable

32

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

33

Main Tube

506151169

Unavailable

Main Tube | Mach Z (Tech Plus).

506151165

Unavailable

34

Retainer Support

517126200

Unavailable

35

Bushing

572064400

Unavailable

36

BUSHING - Call your local BRP dealership

572064500

Unavailable

37

U-clamp | X

506060600

Unavailable

38

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

39

Handlebar

506142000

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Hex. Screw M8 X 55

207085544

$1.62

42

RH Grip 6-1/2"

506151530

Unavailable

43

Tie-Rod Cap

570054100

Unavailable

44

Steering Padding

506151182

Unavailable

45

KEYWAY - Call your local BRP dealership | Sport / Sport GT

572106200

Unavailable

46

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

48

Heating Grip | GT 700.

515175418

Unavailable

Heater

515175501

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

51

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

52

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

53

Steering Support

709400919

Unavailable

54

Stiffner

709400509

Unavailable

55

Phillips Screw M5 X 20

208652044

Unavailable

56

Hex. Flange Elastic Nut M5

233251414

Unavailable

57

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

58

Open Clamp

515175507

Unavailable

59

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

60

FRONT ARM - Call your local BRP dealership

506151156

Unavailable

61

Rear Arm

506151152

Unavailable

62

Clamp

506151147

Unavailable

63

Spacer

506151146

Unavailable

64

Cushion

506152520

Unavailable

65

HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership

207688044

Unavailable

66

Lock

506151162

Unavailable

67

Plate

506151240

Unavailable

68

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

69

SPRING - Call your local BRP dealership

506151219

Unavailable

70

Circlip

414274500

Unavailable

71

HANDLE - Call your local BRP dealership

506151188

Unavailable

72

Socket Head Screw M4 X 12

205041254

Unavailable

73

Foam | Mach Z (Tech Plus).

506151285

Unavailable

74

Cover | GT SE. GT SE Millennium Edition.

506151286

Unavailable

Steering Padding Cover

506151302

Unavailable

75

Washer

517302265

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Femelle Terminal Housing (18 Circuits)

515175505

Unavailable

78

Male Terminal Housing (18 Circuits)

515175502

Unavailable

79

Male Terminal

515175232

$1.49
