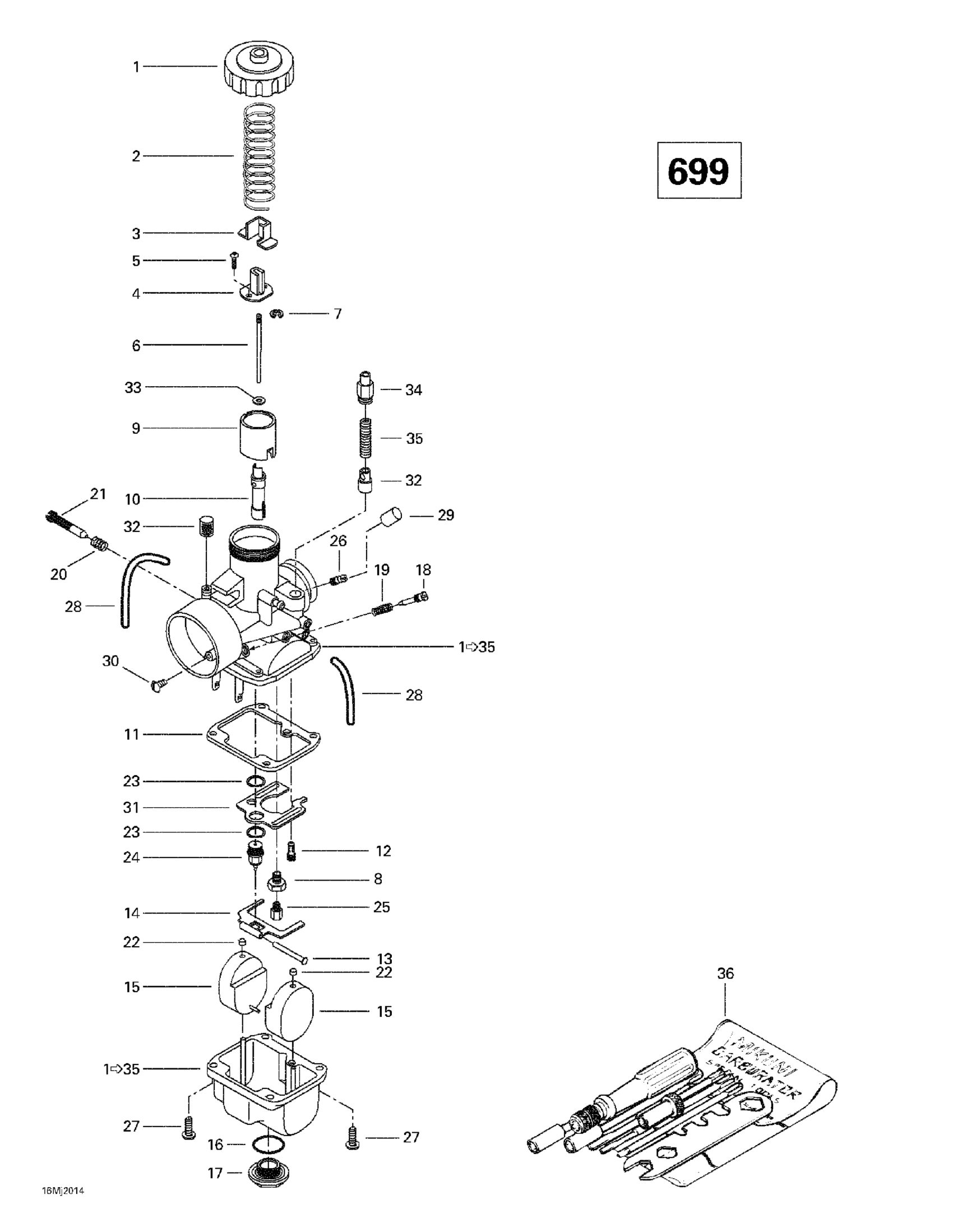

Ski-Doo Grand Touring 700, 2000 Carburetors (699) Diagram

#

Description
Price

1

Carburetor VM 38-436 (PTO/MAG) | GT 700.

403138612

Unavailable

Carburetor VM 38-441 (CTR) | GT 700.

403138635

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$24.99

3

Cover

404122100

$18.43

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.29

6

Needle J8-6DEY2 | Formula III 700 R.

404157900

Unavailable

7

E-Ring

404152400

$6.55

8

Guide Screw

404105500

$32.99

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet | Formula III 700 R.

404131500

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.39

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.29

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

404105800

$6.49

23

Seat Washer

404101600

$3.31

24

Needle Valve 1.5

404147400

$43.99

25

Main Jet MJ 270 | Formula III 700 R.

404100400

$5.29

Main Jet MJ 280

404100500

$8.14

26

Nipple

404153400

$11.51

27

Screw With Lock Washer

404102000

$3.29

28

Hose | GT 700.

404137800

Unavailable

29

CAP - Call your local BRP dealership

404154900

Unavailable

30

Plug Screw

404131700

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

33

Packing

404117000

$3.39

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
