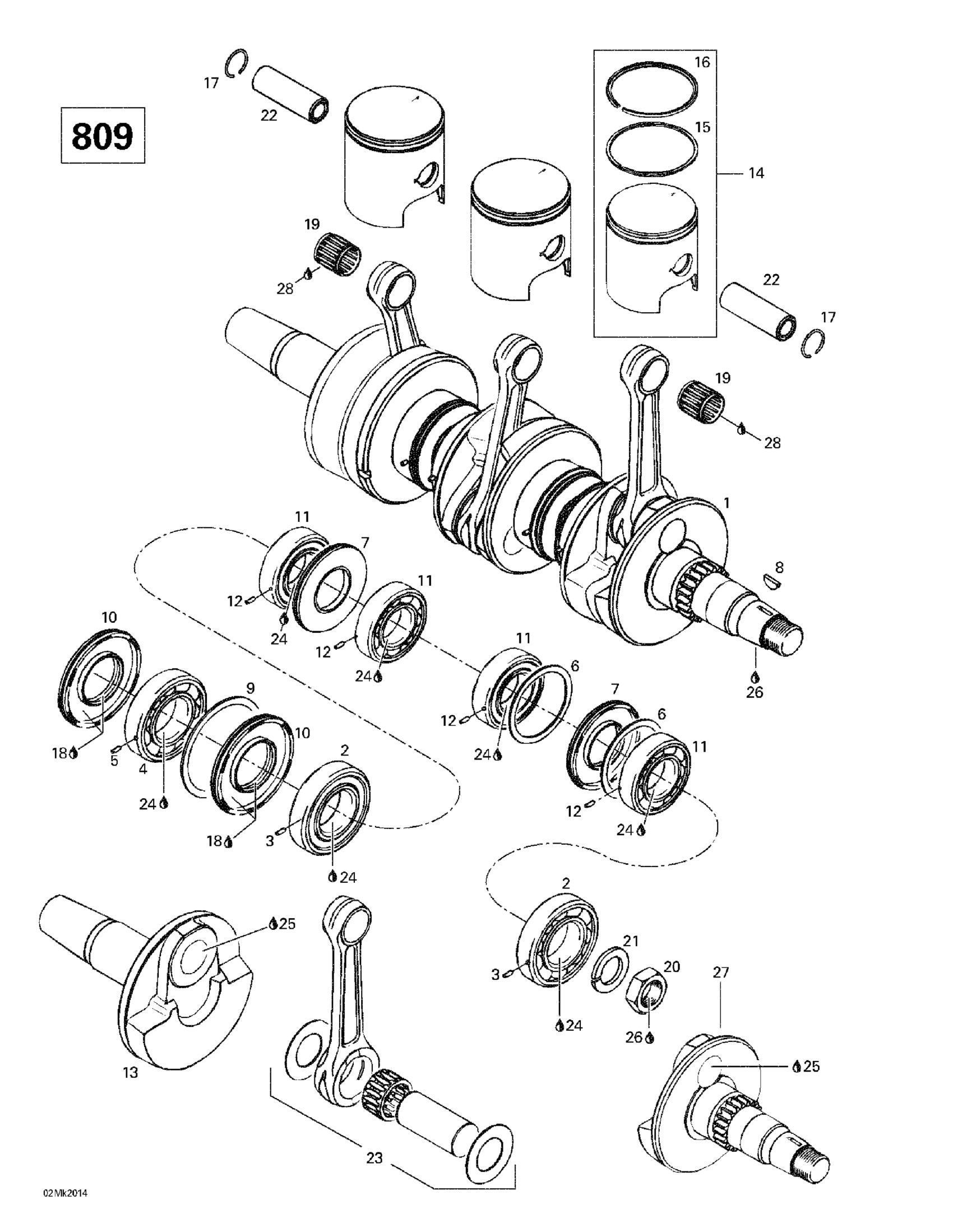

Ski-Doo Grand Touring 700, 2000 Crankshaft And Pistons (809) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12. Formula III 800.

420887668

Unavailable

2

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing Ass'y | Includes 4 - 5.

420832580

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Retaining Disk

420927710

Unavailable

7

Oil Seal This part replaces 290831952.

420831952

Unavailable

8

Woodruff Key

420246015

Unavailable

9

Washer

420926190

Unavailable

10

Oil Seal

420931280

Unavailable

11

Ball Bearing

420832573

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Crankshaft (PTO Side)

420818572

Unavailable

14

Piston Ass'y | Includes 16 - 18.

420887643

Unavailable

15

Rectangular Ring 70.5 mm

420915988

Unavailable

16

Semi-Tapez Ring 70.5 mm | Formula III 800.

420815048

Unavailable

17

Piston Circlip

420945735

Unavailable

18

Dow Corning 111, 150 g

413707000

$57.82

19

Needle Bearing

420832320

Unavailable

20

Hex. Nut, M22 X 1.5

420842239

Unavailable

21

Lock Washer, 22 mm

420945759

Unavailable

22

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

23

ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership

420887663

Unavailable

Rod Repair Kit (MAG/Center Side)

420887664

Unavailable

24

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

25

Sealant Loctite 648

219703000

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Crankshaft (MAG Side)

420818583

Unavailable

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable
