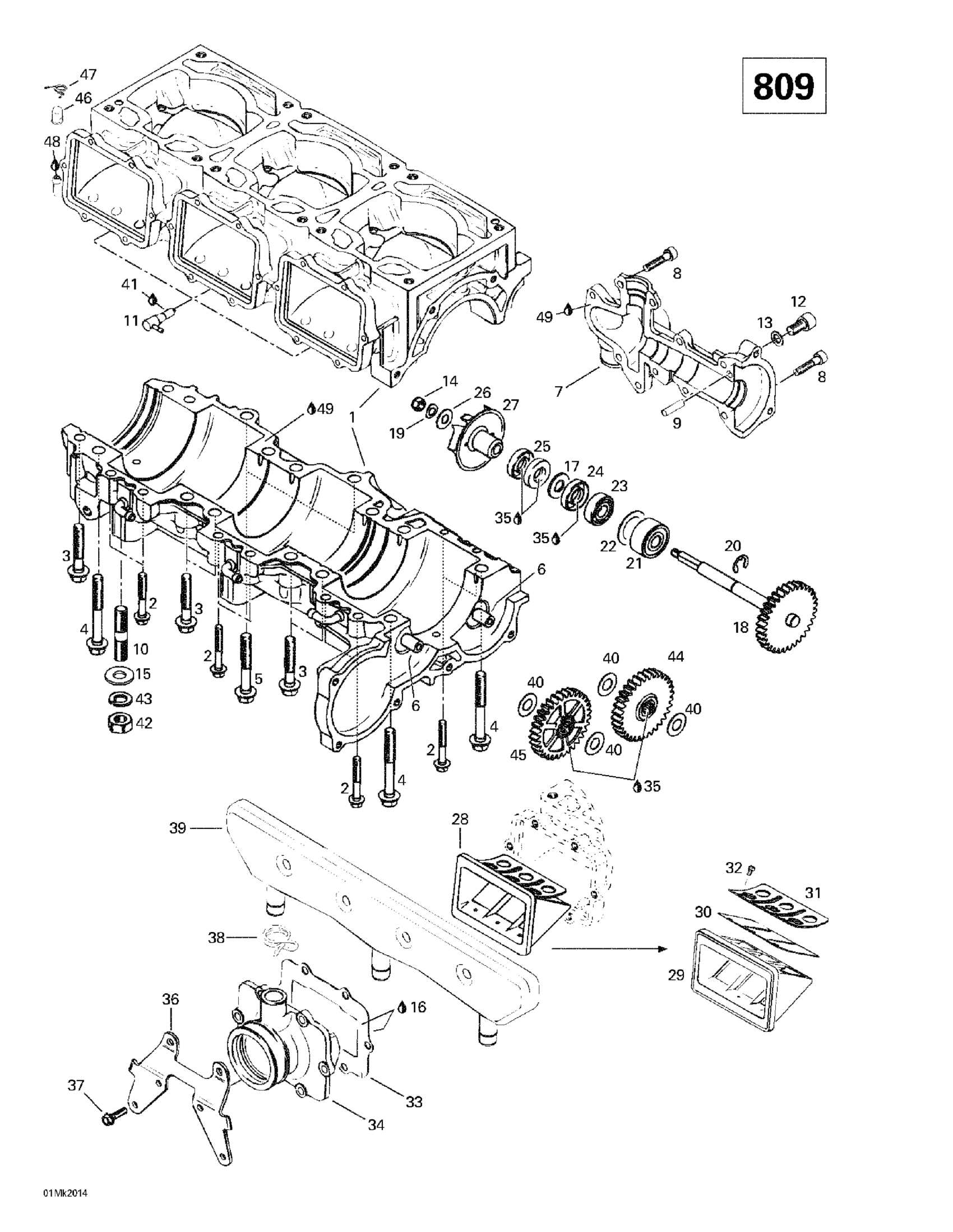

Ski-Doo Grand Touring 700, 2000 Crankcase, Reed Valve, Water Pump (809) Diagram

#

Description
Price

1

Crankcase Water Pump Cover Ass'y | Includes 1 - 13. Formula III 800.

420888523

Unavailable

2

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

Unavailable

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

5

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

6

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Socket Head Screw M6 X 25

205062544

$0.88

9

Dowel Pin

420429230

Unavailable

10

Stud M10 x 25

420940400

Unavailable

11

Check Valve

420956511

$28.57

12

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

13

Sealing Ring

420950141

$1.64

14

Locking Nut M6

420842042

Unavailable

15

Flat Washer 10 mm

234001410

Unavailable

16

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

17

Flat Washer M10 This part replaces 420927410.

420927411

Unavailable

18

Waterpump - Shaft/Gear Ass'y | Formula III 800.

420837435

Unavailable

19

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

20

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

21

Bearing_Ball - Call your local BRP dealership

420832490

Unavailable

22

SHIM 1 MM - Call your local BRP dealership

420944466

Unavailable

23

Ball Bearing

420232100

Unavailable

24

Oil Seal

420230195

$12.65

25

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

26

Washer

420227155

Unavailable

27

Impeller Water

420922445

Unavailable

28

Reed Valve Ass'y

420924519

$50.74

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Reed Pedal

420924532

$43.82

31

Reed Pedal Stop

420924539

$11.52

32

Phillips Screw M3 X 5

420941215

$1.42

33

GASKET 1 MM - Call your local BRP dealership

420950292

Unavailable

34

Intake Socket | Formula III 800.

420867849

Unavailable

35

Dow Corning 111, 150 g

413707000

$57.82

36

CARRIER - Call your local BRP dealership

420851351

Unavailable

37

Hex. Tapping Screw M5 X 20

420841555

$1.68

38

Clamp

420851360

Unavailable

39

Intake Resonator

420867797

Unavailable

40

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

41

Sealant Loctite 648

219703000

Unavailable

42

Hex. Nut M10 X 1.5

232006414

$1.11

43

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

44

Sprocket 32 T | Formula III 700 R.

420834266

Unavailable

45

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

46

Cap

420960770

$4.00

47

CLAMP - Call your local BRP dealership

420938190

Unavailable

48

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

49

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable
