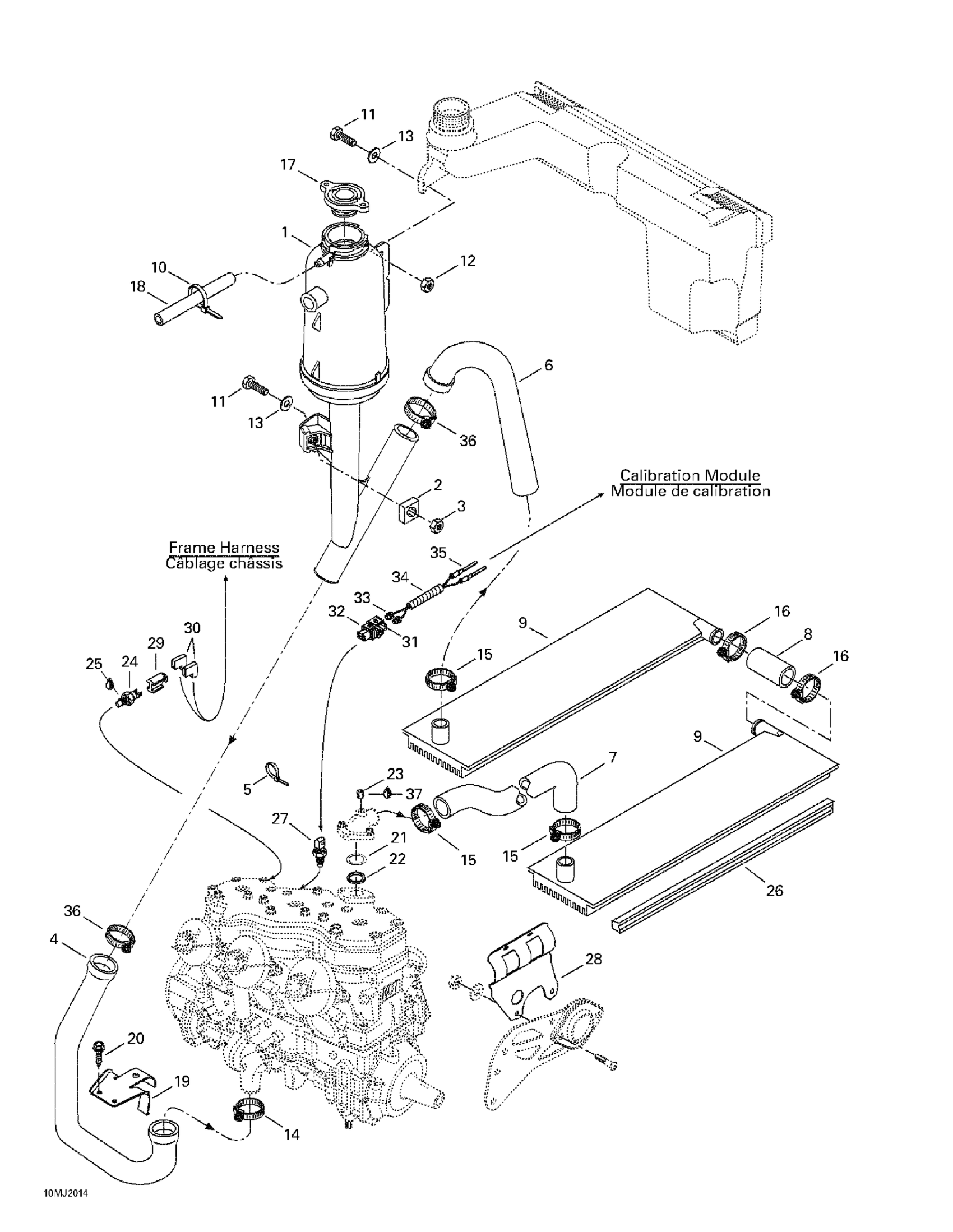

Ski-Doo Grand Touring 700, 2000 Cooling System Diagram

#

Description
Price

1

Coolant Tank Ass'y | Includes 1 - 3.

509000049

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

3

Hex. Nut M6

232061600

Unavailable

4

Engine Inlet Hose

509000026

Unavailable

5

Tie Wrap 142 mm

293750002

Unavailable

6

Radiator Outlet Hose

415047000

Unavailable

7

RADIATOR INLET HOSE - Call your local BRP dealership

415047100

Unavailable

8

Radiator Hose

414795800

Unavailable

9

RH Radiator | Formula III 600 LT.

517290710

Unavailable

LH Radiator | Formula III 600 LT.

517290711

Unavailable

LH Radiator | GT SE.

517296010

Unavailable

10

Tie-Rap 180 mm

414115200

$0.09

11

Hex. Screw M6 X 25

207162544

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

Flat Washer

224061121

$0.44

14

Norma Gear Clamp

293650098

Unavailable

15

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

16

Clamp Tridon

408803400

Unavailable

17

Pressure Cap

509000187

Unavailable

18

Polyurethane Hose 10000Mm Long

219704410

Unavailable

19

Hose Protector

509000037

Unavailable

20

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

21

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

22

SEALING RING - Call your local BRP dealership

420931270

Unavailable

23

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

24

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

25

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

26

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

27

Temperature Sensor

278002895

$31.82

28

HOSE PROTECTOR - Call your local BRP dealership

509000042

Unavailable

29

Connector Plug | Grand Touring 500.

515175297

Unavailable

30

Female Terminal

409010300

$4.12

31

Female Terminal

278000998

$3.48

32

Male Housing, 2 Circuits

278001005

$15.57

33

Wire Seal

278000999

$2.55

34

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

35

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

36

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

37

Loctite 243, 10 ml

293800060

$20.77
