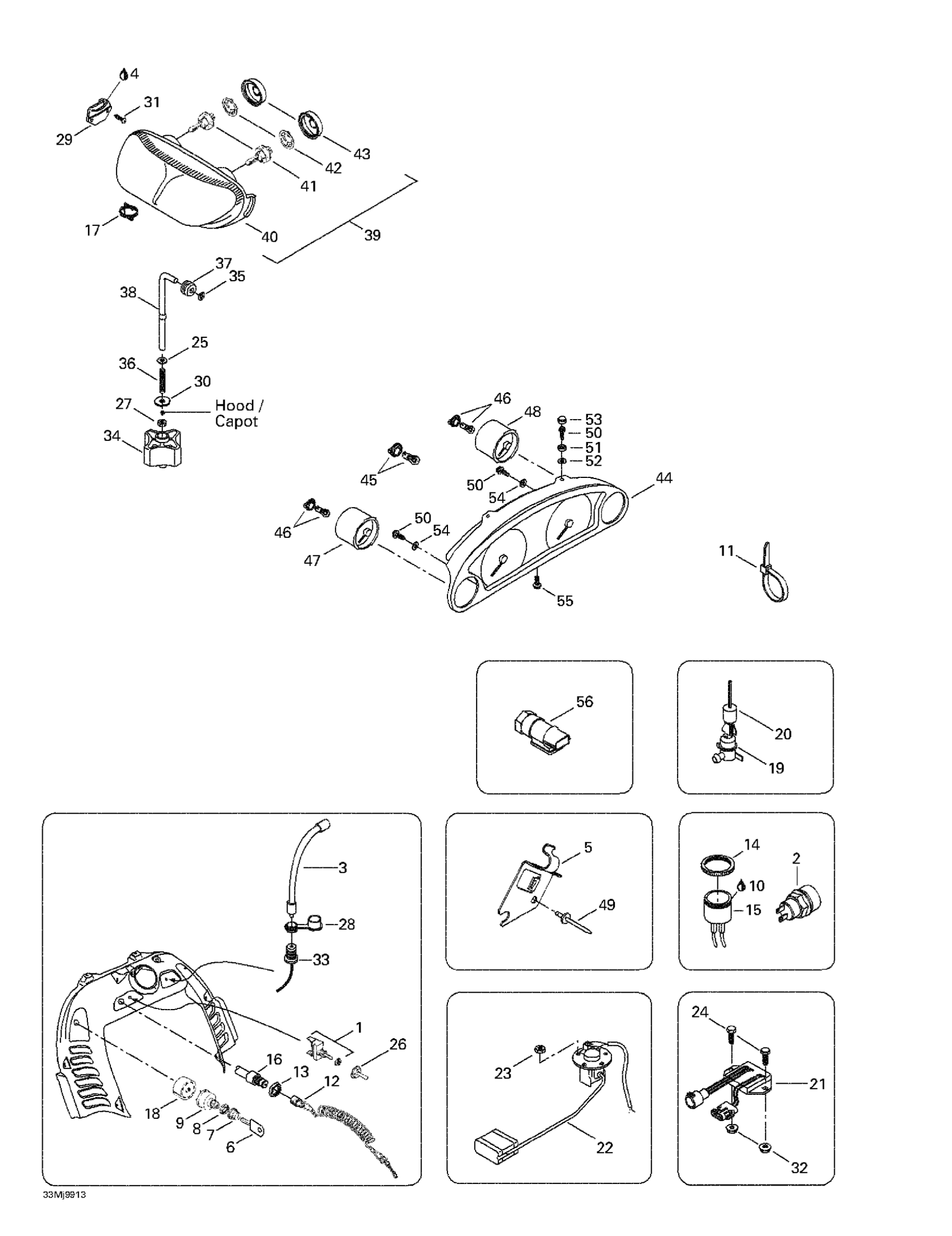

Ski-Doo Grand Touring 700, 1999 Electrical System Diagram

#

Description
Price

1

Switch (Compressor) | Grand Touring 600. Grand Touring 800.

410111500

Unavailable

2

Push Button

415130372

Unavailable

3

EXTENSION - Call your local BRP dealership

515175971

Unavailable

4

Grease Tube Lmz, 400 G

413707500

Unavailable

5

Housing Support

515175173

Unavailable

6

Blank Key

415129350

Unavailable

7

Switch Boot

570013700

Unavailable

8

FACE NUT - Call your local BRP dealership

410112100

$14.29

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

Unavailable

11

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

12

DESS

515178284

Unavailable

13

Safety Nut (DESS Switch)

278002963

$2.72

14

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

15

HORN - Call your local BRP dealership

515176035

Unavailable

16

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

17

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

18

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

19

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

20

Float

414681900

Unavailable

21

Voltage Regulator | Includes 21 - 30.

515175461

Unavailable

22

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

23

Elastic Stop Nut M5

232551414

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

25

Flat Washer 6 mm

234061410

Unavailable

26

Switch Cover

515175281

$15.03

27

Elastic Stop Nut M6

232561414

Unavailable

28

Cap

572103300

$9.65

29

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Headlamp Screw

732601315

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Visor Plug Harness | Formula Deluxe 380 F.

515175111

Unavailable

34

Handle - Call your local BRP dealership

515175548

Unavailable

35

Push Nut

732610072

Unavailable

36

SPRING - Call your local BRP dealership

415100600

Unavailable

37

Grommet - Call your local BRP dealership

415100800

Unavailable

38

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

39

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

42

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Dash Ass'y | Grand Touring 700.

515167800

Unavailable

Dash Ass'y | Grand Touring SE.

515167700

Unavailable

45

Meter Bulb

410504403

Unavailable

46

Meter Bulb (Small)

410504402

Unavailable

47

Temperature Gauge | GT 700.

515175395

Unavailable

Pressure Gauge

515175394

Unavailable

48

Fuel Gauge

515175396

Unavailable

49

Rivet pop 1/4"

390404900

Unavailable

50

Screw K40 X 10

241140060

$1.25

51

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

52

Flat Washer 4 mm, Stainless

234042600

Unavailable

53

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

54

Washer

517124300

Unavailable

55

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

56

Speed Sensor

415049800

Unavailable

57

Connector (3 Circuits)

409004900

Unavailable

58

FEMALE TERMINAL - Call your local BRP dealership

409004800

$7.18

59

Hood Harness (Not Shown)

515175135

Unavailable

60

Frame Harness (not shown)

515175130

Unavailable
