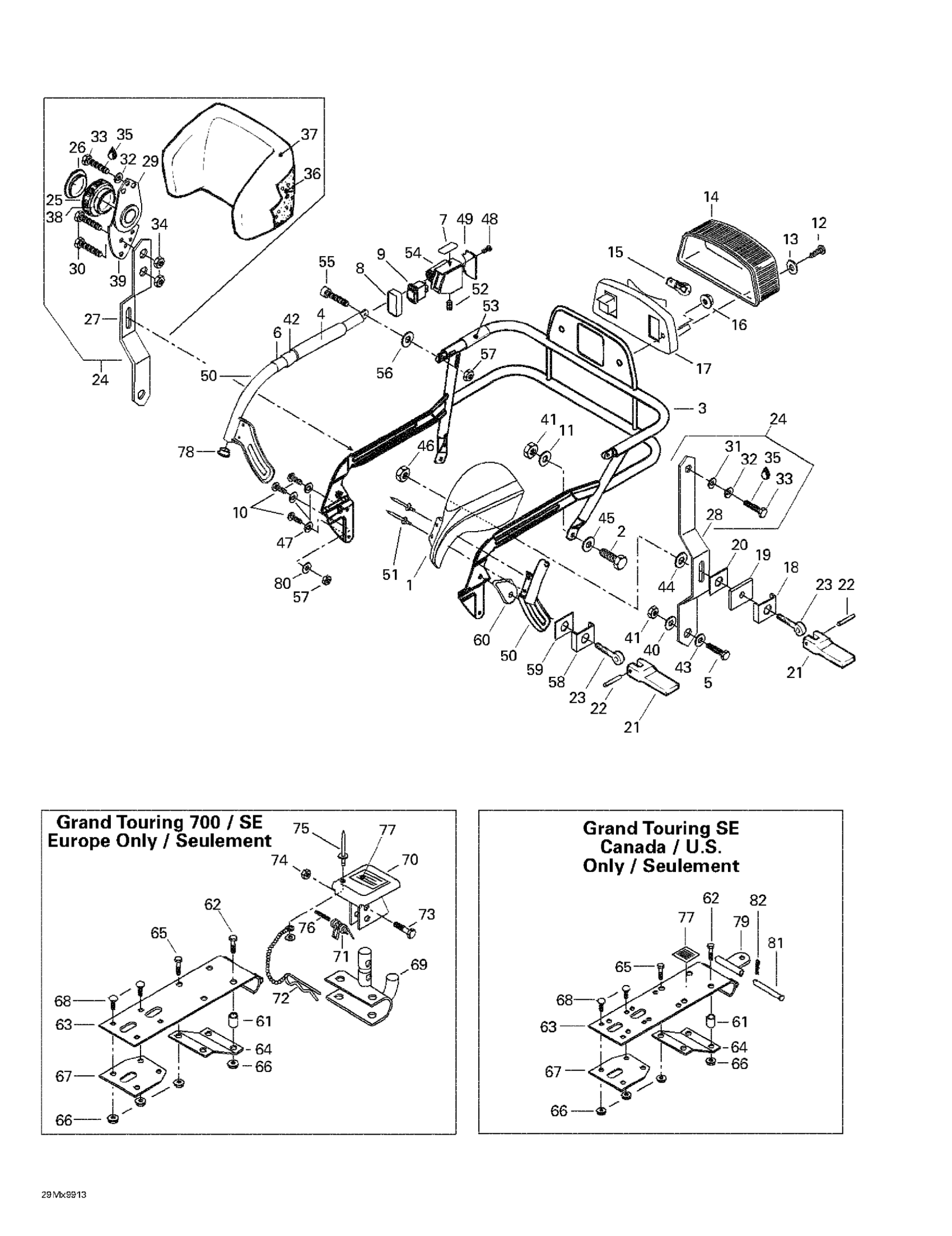

Ski-Doo Grand Touring 700, 1999 Luggage Rack, Hitch Diagram

#

Description
Price

1

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

2

Hex. Screw M8 X 20

207182044

$0.61

3

Rack Ass'y

517295600

Unavailable

4

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

5

Hex. Screw M8 X 25

207182584

Unavailable

6

Reflective Sheet

414988700

Unavailable

7

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

8

Switch Protector

511000002

Unavailable

9

Rocker Switch

511000001

Unavailable

10

Hex. Flange Screw M6 X 16

210261650

$1.22

11

Yellow, Washer

503183200

Unavailable

12

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Lens

414513700

Unavailable

15

Bulb

520000758

$7.49

16

Hex. Flange Elastic Nut M5

233251414

Unavailable

17

Taillamp Housing

415109800

Unavailable

18

Guide

517257300

Unavailable

19

Rubber Shim

570027400

Unavailable

20

SPACER - Call your local BRP dealership

517251300

Unavailable

21

Lock Lever

572038200

Unavailable

22

Pin

414821400

$6.23

23

Eye Bolt

517257600

Unavailable

24

Backrest Ass'y | GT SE.

510003560

Unavailable

25

TILLER HANDLE - Call your local BRP dealership

414820900

$11.51

26

Cap

414821000

Unavailable

27

RH Arm

517296400

Unavailable

28

LH Arm

517296500

Unavailable

29

Recliner

414813300

Unavailable

30

Hex. Screw M8 X 25

207182544

Unavailable

31

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

32

Lock Washer 8 mm

234181401

Unavailable

33

Hex. Screw M8 X 20

207182044

$0.61

34

Hex. Elastic Stop Nut M8

232581414

Unavailable

35

Loctite 243, 10 ml

293800060

$20.77

36

Backrest Foam

414821200

Unavailable

37

Backrest Cover | GT SE.

510003562

Unavailable

38

STRIP - Call your local BRP dealership

415015500

$6.12

39

Cap

517250500

Unavailable

40

Washer

414819600

Unavailable

41

Hex. Elastic Stop Nut M8

232581414

Unavailable

42

Heating Grip

515175573

Unavailable

43

Conical Spring Washer M8

234281474

$1.25

44

Washer

414819500

Unavailable

45

Flat Washer 8 mm

234081410

Unavailable

46

Nut

517250000

Unavailable

47

Lock Washer Helical M6

234161601

Unavailable

48

Screw

732601255

Unavailable

49

Plate

572089300

Unavailable

50

RH Arm, Rack

511000012

Unavailable

LH Am, Rack

517300900

Unavailable

51

Pop Rivet 3/16"

390906800

Unavailable

52

Pressure Screw M8 X 8 | 4X4

206580890

Unavailable

53

Grip, Short, 60 mm

415050400

Unavailable

54

Switch Housing

572089200

Unavailable

55

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

56

Flat Washer 6 mm

234062100

Unavailable

57

Elastic Stop Nut M6

232561414

Unavailable

58

Guide

517290000

Unavailable

59

Outer Spacer

570063800

Unavailable

60

Spacer Block

572088900

Unavailable

61

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

62

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

63

Support

517275500

Unavailable

64

Reinforcement | Europe

517223500

Unavailable

65

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

67

Inner Plate

517256100

Unavailable

68

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

69

Hitch | Europe

517199300

Unavailable

70

Hitch Protector | Europe

517152700

Unavailable

71

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

72

Hair Pin

114045200

Unavailable

73

Hex. Screw M6 X 30

207063044

Unavailable

74

Elastic Stop Nut M6

232561414

Unavailable

75

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

76

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

77

Instruction Label (Hitch)

414998500

Unavailable

78

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

79

Hitch Plate Welded

511000521

$14.54

80

Flat Washer 6 mm

234061410

Unavailable

81

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

82

Cotter Pin

371800200

$0.51
