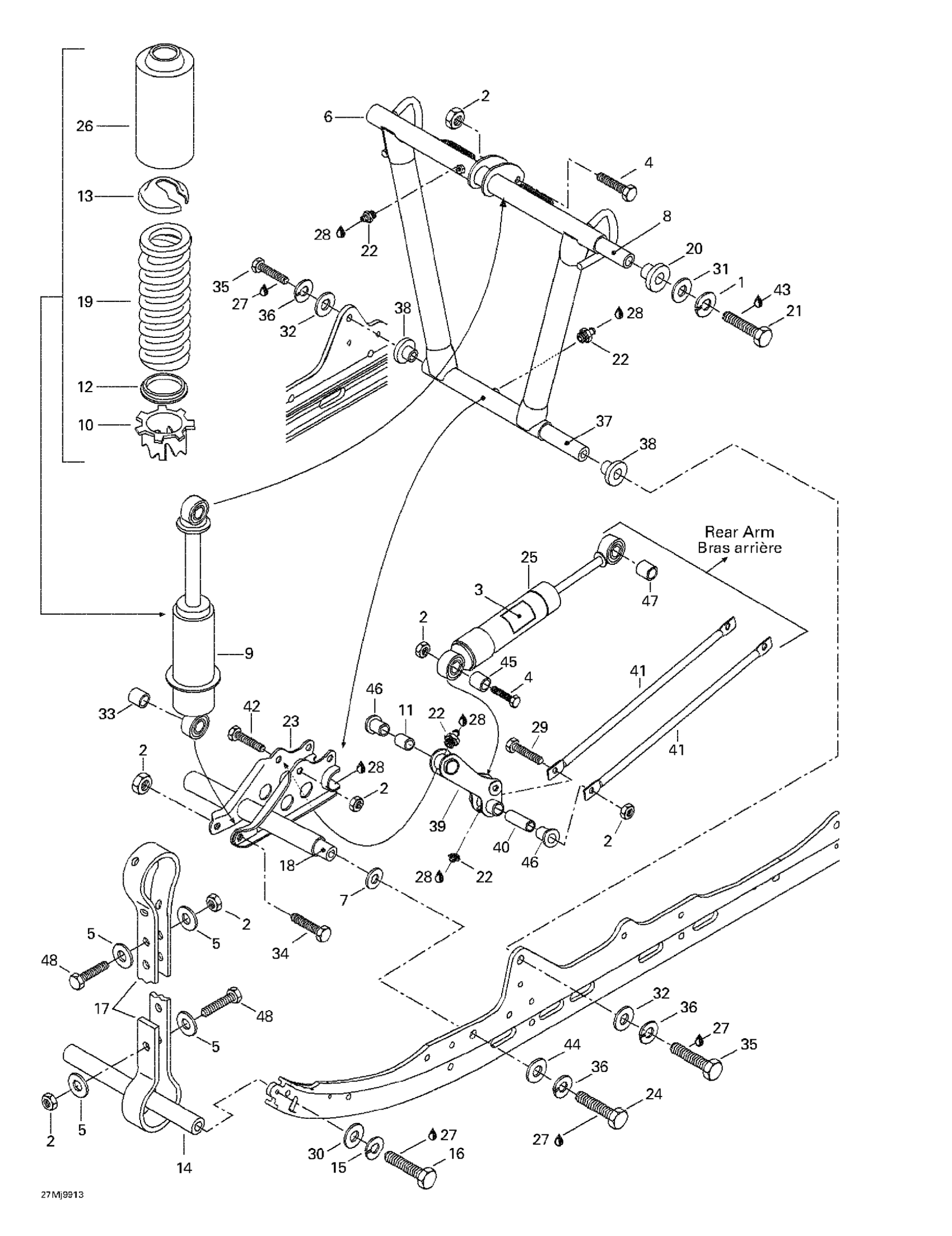

Ski-Doo Grand Touring 700, 1999 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

Unavailable

3

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

4

Hex. Screw M8 X 40

207084044

Unavailable

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock

503189196

Unavailable

Shock | Includes 9 - 11.

415102300

Unavailable

10

Cam

503169000

Unavailable

11

Pivot Axle

503171700

Unavailable

12

Spring Guide

572092600

Unavailable

13

Spring Stopper

706200881

$10.30

14

Axle

503151600

$15.35

15

Lock Washer 8 mm

234181401

Unavailable

16

Hex. Screw M8 X 30

207183044

Unavailable

17

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring

415057600

Unavailable

20

Bushing

503189324

$11.17

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

Unavailable

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Rear Shock

415102400

Unavailable

Rear Shock Kit (Incl. it. 3, 45, 47) (Eu | Grand Touring 700.

860304600

Unavailable

Shock | GT SE. GT SE Millennium Edition.

503189095

Unavailable

26

Protector

503193663

Unavailable

27

Loctite 271, 10 ml

293800005

Unavailable

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

Hex. Screw M8 X 90

207089044

$2.82

30

Flat Washer 8 mm

234081410

Unavailable

31

Flat Washer 10 mm

234001410

Unavailable

32

Flat Washer 12 mm

234021410

$0.68

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.62

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503171400

Unavailable

40

Tie Rod Shaft

503171600

Unavailable

41

Tie Rod

503184900

Unavailable

42

Hex. Screw M8 X 50

207085044

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Flat Washer 12 mm

234021410

$0.68

45

Bushing

414936000

Unavailable

46

Plastic Cushion

415052300

Unavailable

47

Bushing

414936000

Unavailable

Bushing

414936000

Unavailable

48

Hex. Screw M8 X 25

207182544

Unavailable
