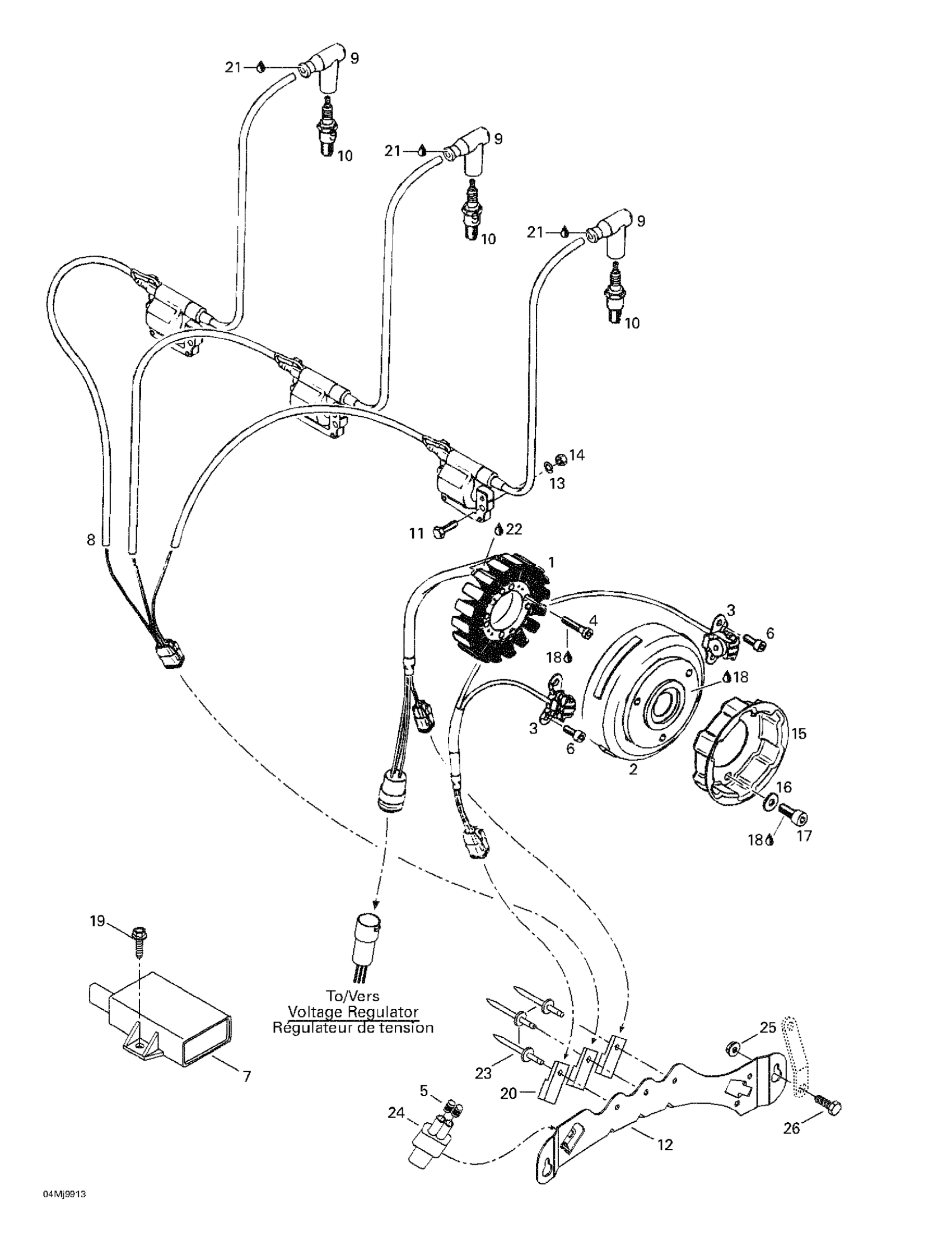

Ski-Doo Grand Touring 700, 1999 Magneto 12V 360W Diagram

#

Description
Price

1

Magneto Ass'y 12V 360W | Includes 1 - 3.

410923200

Unavailable

1

STATOR PLATE ASS'Y - Call your local BRP dealership | Includes 1 - 7.

410922907

Unavailable

2

Flywheel

410922908

Unavailable

3

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

SEAL - Call your local BRP dealership

409013900

$9.20

6

Allen Screw M6 X 14

420840391

Unavailable

7

Calibration Module | Grand Touring 700.

512058992

Unavailable

Calibration Module | Grand Touring SE.

590030700

Unavailable

8

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

9

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

10

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

11

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

12

Housing Support

515175148

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Nut M6

232061414

$0.44

15

Starting Pulley

420852418

Unavailable

16

Flat Washer

420827405

$1.66

17

Socket Head Screw M8 X 12

420841520

$1.68

18

Loctite 243, 10 ml

293800060

$20.77

19

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

20

Clip

270000141

$8.33

21

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Female Connector Housing (2 Circuits)

409206500

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Hex. Screw M5 X 14

207151444

Unavailable
