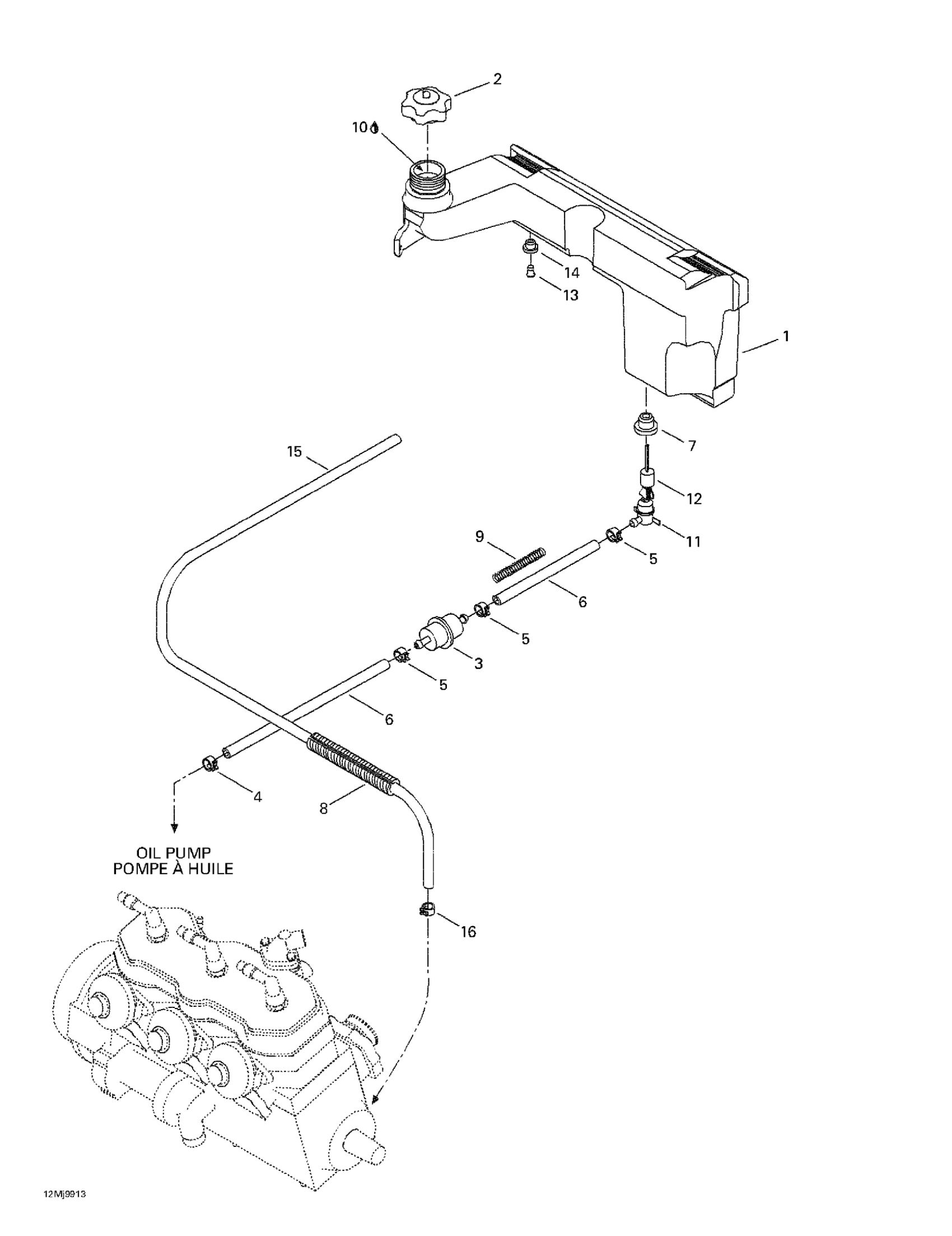

Ski-Doo Grand Touring 700, 1999 Oil Tank Diagram

#

Description
Price

1

Injection Oil Tank

572088500

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

Filter

414536500

$3.25

4

Spring Clamp

414420700

Unavailable

5

Spring Clamp

414415200

$0.83

6

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

7

Insulating Ring

570023000

Unavailable

8

Tubing 10 MM 1000MM Long

219704407

Unavailable

9

Spring

519000001

Unavailable

10

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

11

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

12

Float

414681900

Unavailable

13

Cap

572092900

Unavailable

14

Grommet

709200285

$8.38

15

Polyurethane Hose 10000Mm Long

219704410

Unavailable

16

Spring Clamp

414554800

$0.83
