- Grand Touring 700, 1998
Electrical System

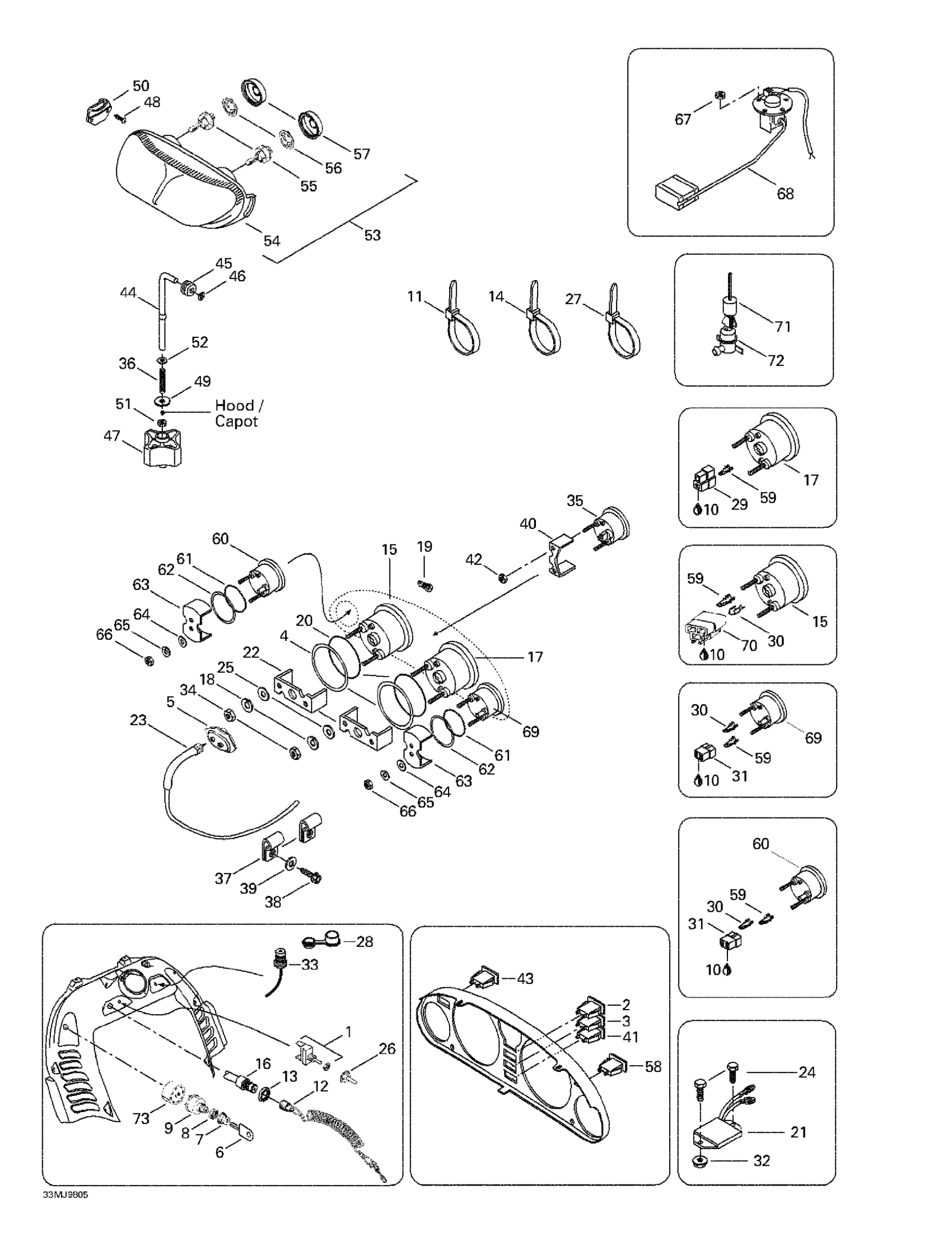

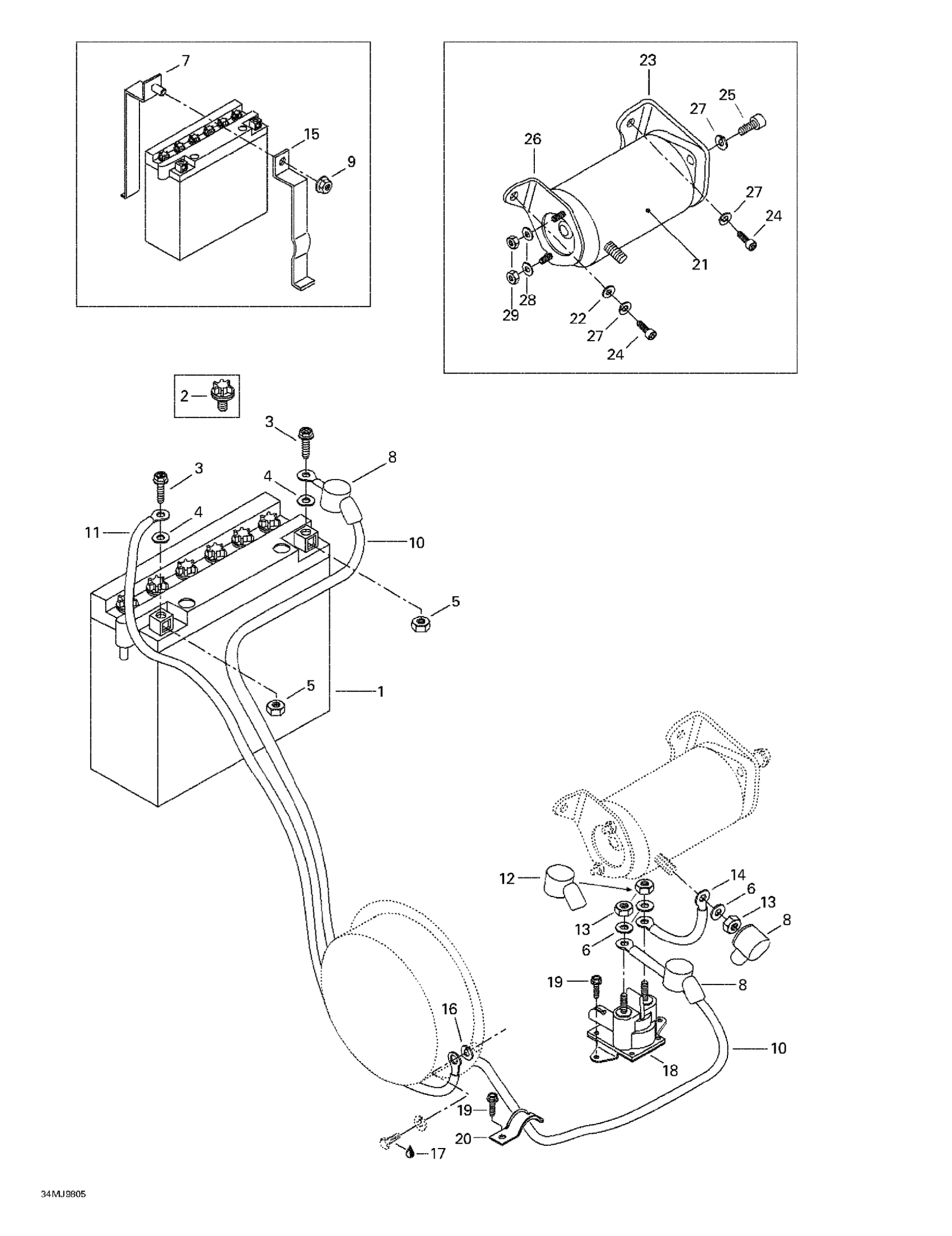

Ski-Doo Grand Touring 700, 1998 Electrical System Diagram
#
1
Switch (Compressor) | Grand Touring 600. Grand Touring 800.
410111500
Unavailable
2
Pilot Lamp (Red)
410109500
Unavailable
3
Pilot Lamp (Blue)
410109600
Unavailable
4
Washer
517258500
Unavailable
5
Drive Angle | Formula S.
572022300
Unavailable
6
Blank Key
415129350
Unavailable
7
Switch Boot
570013700
Unavailable
9
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
10
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
12
DESS
515178284
Unavailable
14
Tie Wrap 142 mm
293750002
Unavailable
15
Tachometer
415057000
Unavailable
16
TERMINAL ASSY - Call your local BRP dealership | SUV 600
515166800
Unavailable
17
Speedometer, Kmh
515175335
Unavailable
Speedometer (MH)
415096400
Unavailable
18
Lock Washer
414806700
Unavailable
19
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
20
O-Ring
414807100
Unavailable
21
Voltage Regulator
515170600
Unavailable
22
Case Holder
414806500
Unavailable
23
Speedometer Cable
415101500
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
30
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Harness-Visor | Grand Touring SE.
515173000
Unavailable
34
Nut
414806900
Unavailable
35
Pressure Gauge | Grand Touring 600. Grand Touring 800.
415043500
Unavailable
36
SPRING - Call your local BRP dealership
415100600
Unavailable
38
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
39
Washer | DS 650 X
391301600
Unavailable
40
Case Holder | Grand Touring 600. Grand Touring 800.
415122900
Unavailable
41
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
42
Elastic Stop Nut M4
232541484
Unavailable
43
Pilot Lamp (Heated Thumb)
410109400
Unavailable
44
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
45
Grommet - Call your local BRP dealership
415100800
Unavailable
46
Push Nut
732610072
Unavailable
47
Handle - Call your local BRP dealership
515175548
Unavailable
48
SCREW M4.8 X 19 - Call your local BRP dealership
210641940
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
50
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
51
Elastic Stop Nut M6
232561414
Unavailable
52
Flat Washer 6 mm
234061410
Unavailable
53
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
54
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
55
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
57
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
58
Pilot Lamp (Heated Handle)
410109300
Unavailable
59
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
60
Fuel Gauge
415097300
Unavailable
61
O-RING - Call your local BRP dealership
414807200
Unavailable
62
WASHER - Call your local BRP dealership
517258600
Unavailable
63
Case Holder
415099800
Unavailable
64
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
65
Lock Washer | SE Models
414833700
Unavailable
66
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
67
Elastic Stop Nut M5
232551414
Unavailable
68
Fuel Sensor Ass'y | Includes 46 - 49.
415080800
Unavailable
69
Temperature Gauge
415097200
Unavailable
70
Male Terminal Housing (3 circuits)
409008600
Unavailable
71
Float
414681900
Unavailable
72
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
73
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
