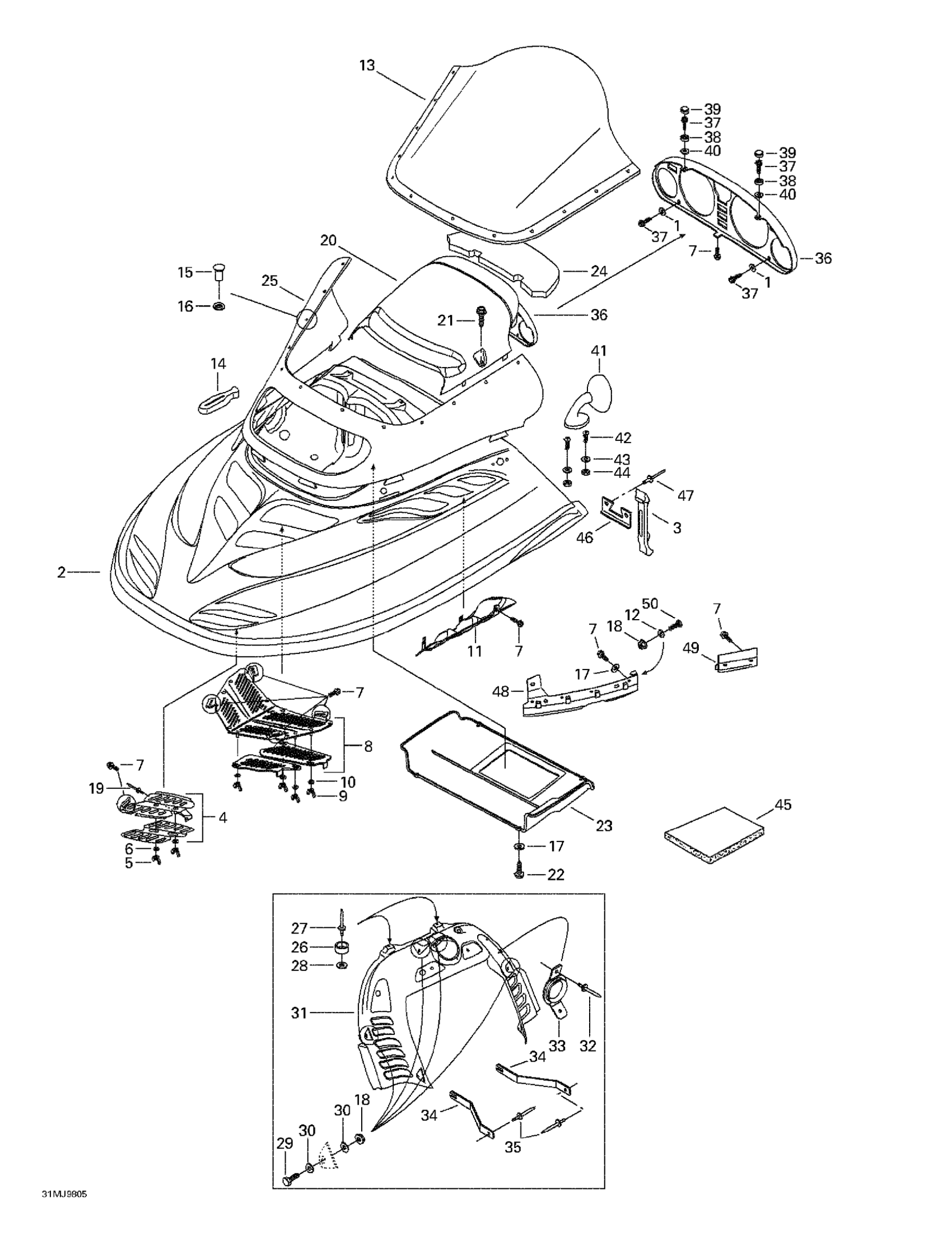

Ski-Doo Grand Touring 700, 1998 Cab, Console Diagram

#

Description
Price

1

Washer

517124300

Unavailable

2

Hood | Grand Touring 700.

572087501

Unavailable

Hood | Grand Touring SE.

572087503

Unavailable

3

Hood Latch

517302152

Unavailable

4

RH Front Grill Ass'y | Includes 4 - 6.

517302071

Unavailable

LH Front Grill Ass'y

517302072

Unavailable

5

Wing Nut M5

414070300

Unavailable

6

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

7

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

8

Center Grill Ass'y | Includes 8 - 14.

517302073

Unavailable

9

Wing Nut M5

414070300

Unavailable

10

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

11

RH Rear Grill

517288900

Unavailable

RH Rear Grill (Europe) | Formula III 600.

517300602

Unavailable

LH Rear Grill

517300600

Unavailable

12

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

13

High Windshield | GT 700.

415082500

Unavailable

14

Windshield Latch

570023800

Unavailable

15

STUD - Call your local BRP dealership

572103500

Unavailable

16

Push Nut

732610072

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Hex. Flange Elastic Nut M5

233251414

Unavailable

19

Pop Rivet 3/16"

390402400

Unavailable

20

Air Intake Deflector

572107300

Unavailable

21

Tuflock Phillips Plastic Screw

414745900

$1.30

22

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

23

Plate

572087800

Unavailable

24

Filter Foam

415123100

Unavailable

25

Windshield Support

572087700

Unavailable

26

Rubber Stopper

415018100

$2.35

27

Pop Rivet 1/8" | SM5

390401600

Unavailable

28

WASHER - Call your local BRP dealership

293150007

Unavailable

29

Hex. Screw M5 X 20

207152044

$0.88

30

Washer | DS 650 X

391301600

Unavailable

31

Console | Grand Touring 700.

572087904

Unavailable

Console | Grand Touring SE.

572087903

Unavailable

32

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

33

Rope Guide

517296800

Unavailable

34

Bracket

517296900

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Gauge Support | Grand Touring 700.

572098602

Unavailable

Gauge Support | Grand Touring SE.

572098603

Unavailable

37

Screw K40 X 10

241140060

$1.25

38

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

39

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

40

Flat Washer 4 mm, Stainless

234042600

Unavailable

41

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

$37.66

42

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

43

Washer

517124300

Unavailable

44

Elastic Stop Nut M4

232541414

$0.48

45

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

46

Reinforcement

517302039

Unavailable

47

Rivet

390401400

Unavailable

48

RH Hood Guide

517301200

Unavailable

LH Hood Guide

517301300

Unavailable

49

RH Hood Guide (Install on LH side)

517302010

Unavailable

LH Hood Guide (Install on RH side)

517302012

Unavailable

50

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable
