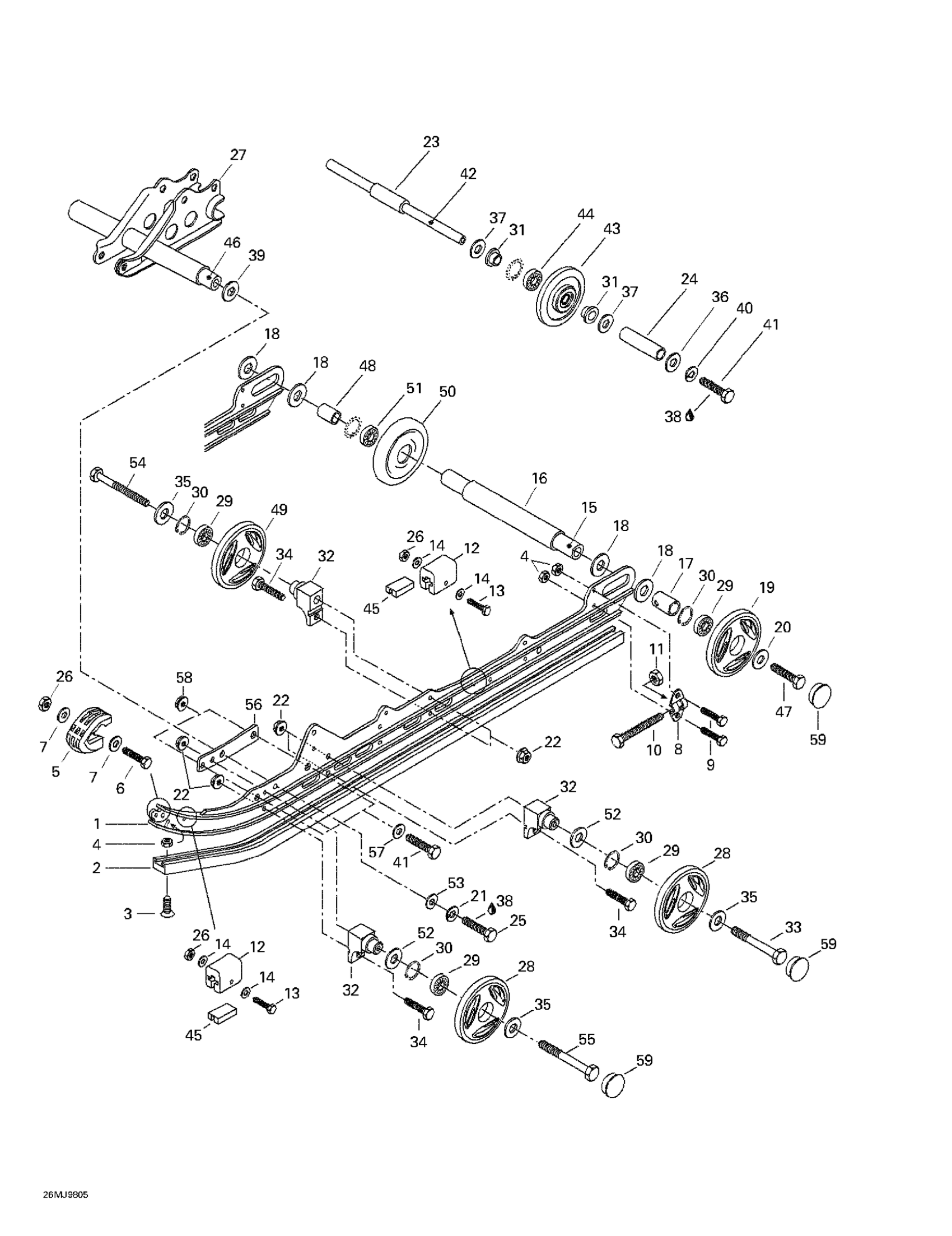

Ski-Doo Grand Touring 700, 1998 Rear Suspension Diagram

#

Description
Price

1

Runner | Formula III 600 LT.

503181700

Unavailable

2

Slide Shoe

605355362

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.46

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.63

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$125.34

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$14.90

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Bond Wheel 165 (Blue)

570066729

Unavailable

Wheel 165 (Platinum) | Grand Touring SE.

570066733

Unavailable

20

Washer

503183300

$5.51

21

Lock Washer 12 mm

224721218

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Spacer

503153100

Unavailable

24

External Spacer | Formula Z 583. Formula 583 Deluxe.

503160200

Unavailable

25

Hex. Screw M12 x 40

222024065

Unavailable

26

Elastic Stop Nut M5

232551414

$0.82

27

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

28

Idler Wheel 135 (Blue)

570066629

Unavailable

Idler Wheel 135 (Platinum) | Grand Touring SE.

570066633

Unavailable

29

Ball Bearing

293350115

$10.82

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

$4.42

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.85

35

Washer

503183100

$2.99

36

Washer (Black)

503169900

Unavailable

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

$23.85

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.87

41

Hex. Screw M8 X 30

207183044

$1.06

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$10.82

45

Reinforcement Stopper

572084800

$5.09

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

$1.63

48

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

49

Wheel 135 | Includes 18 to 19

503190797

$31.31

50

Wheel 165" | Includes 670 to 670b

503194127

$48.48

51

Ball Bearing

293350115

$10.82

52

WASHER - Call your local BRP dealership

503173700

Unavailable

53

Flat Washer 12 mm

234021410

$0.66

54

Hex. Screw M8 X 80

207088044

$1.54

55

Hex. Screw M8 X 90

207089044

$3.24

56

Reinforcement Plate | Formula III 600 LT.

503171200

Unavailable

57

Flat Washer 8 mm

234081410

$0.79

58

Hex. Flange Elastic Nut M8

233281414

$1.31

59

Wheel Cap

570063600

$3.18
