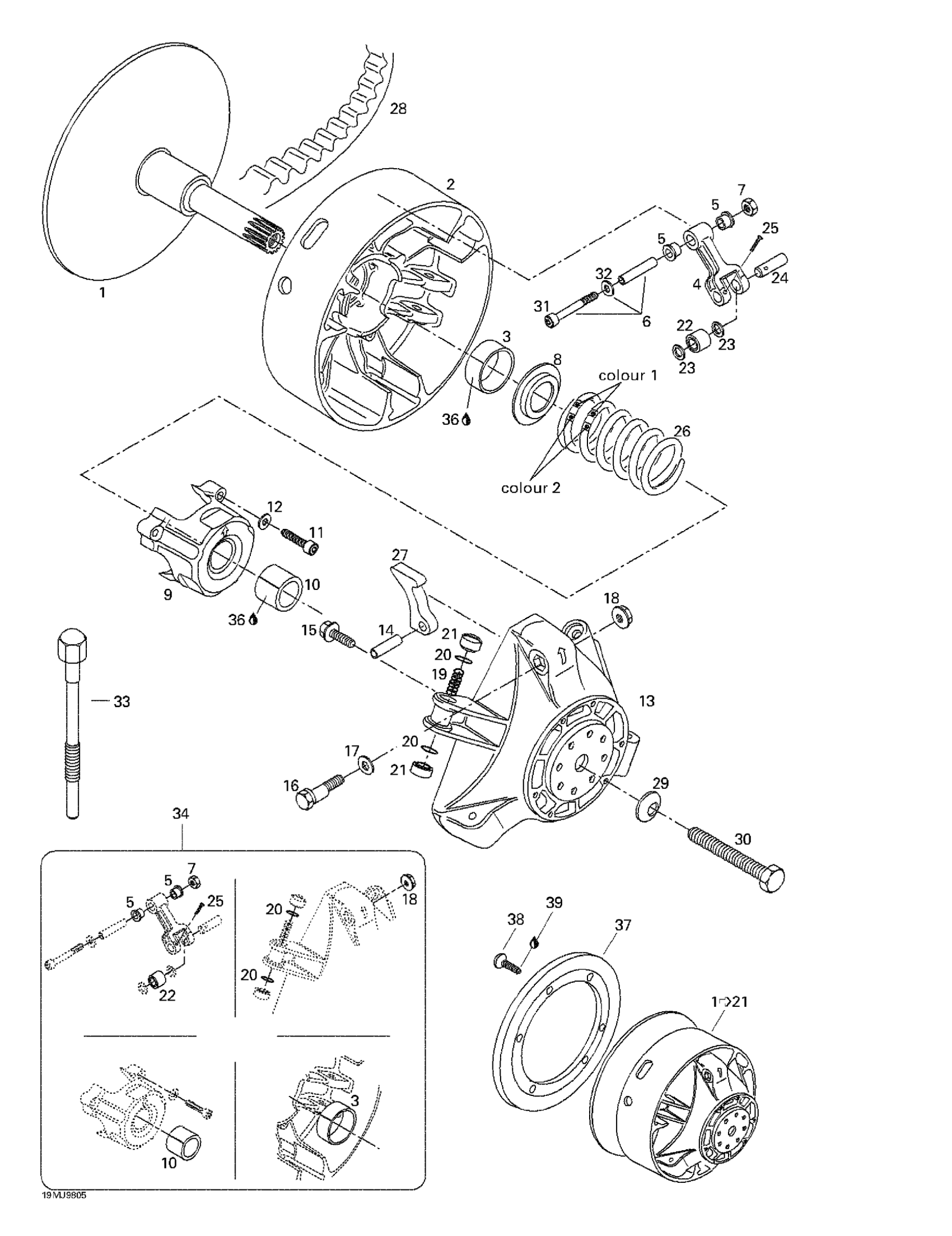

Ski-Doo Grand Touring 700, 1998 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417221600

Unavailable

1

Fixed Flange

417222411

Unavailable

2

SLINDING FLANGE - Call your local BRP dealership | Formula Z 583. Formula Z 670.

417003703

Unavailable

3

Bushing

417004201

Unavailable

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Spring Seat

417005000

Unavailable

9

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

10

Bushing

417004501

Unavailable

11

Allen Screw M6 x 40

222964066

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Governor Cup

417222005

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.86

18

Hex. Flange Nut M6

233061414

Unavailable

19

Spring

417005700

Unavailable

20

O-Ring

732401030

$0.95

21

Slider Shoe This part replaces 420460045.

417223021

$6.09

22

Roller

417222947

$19.97

23

Stopper Washer

417004302

$15.99

24

Pin

417004308

Unavailable

25

Cotter Pin

250400060

$1.60

26

Spring (Blue/Violet)

414817800

$14.75

Spring (Blue/Pink)

414916300

Unavailable

27

Ramp (286) | Formula DLX 500 LC.

417005286

Unavailable

28

BELT_DRIVE - Call your local BRP dealership This part replaces 415045000.

417300069

Unavailable

29

Spring Washer 14 mm

250200006

Unavailable

30

Drive Pulley Bolt

417120000

$63.82

31

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

$1.68

32

Flat Washer 6 mm

234061410

Unavailable

33

Puller This part replaces 529022400.

529000064

Unavailable

34

Clutch Repair Kit

417006100

Unavailable

35

Hight Altitude Kit, (Not Shown) | Grand Touring 700.

861763100

Unavailable

36

Loctite 609, 10 ml

413703100

$24.58

37

Ring Gear 86Th

417009400

Unavailable

38

Hex. Screw M8 X 16

236281684

Unavailable

39

Loctite 271, 10 ml

293800005

Unavailable
