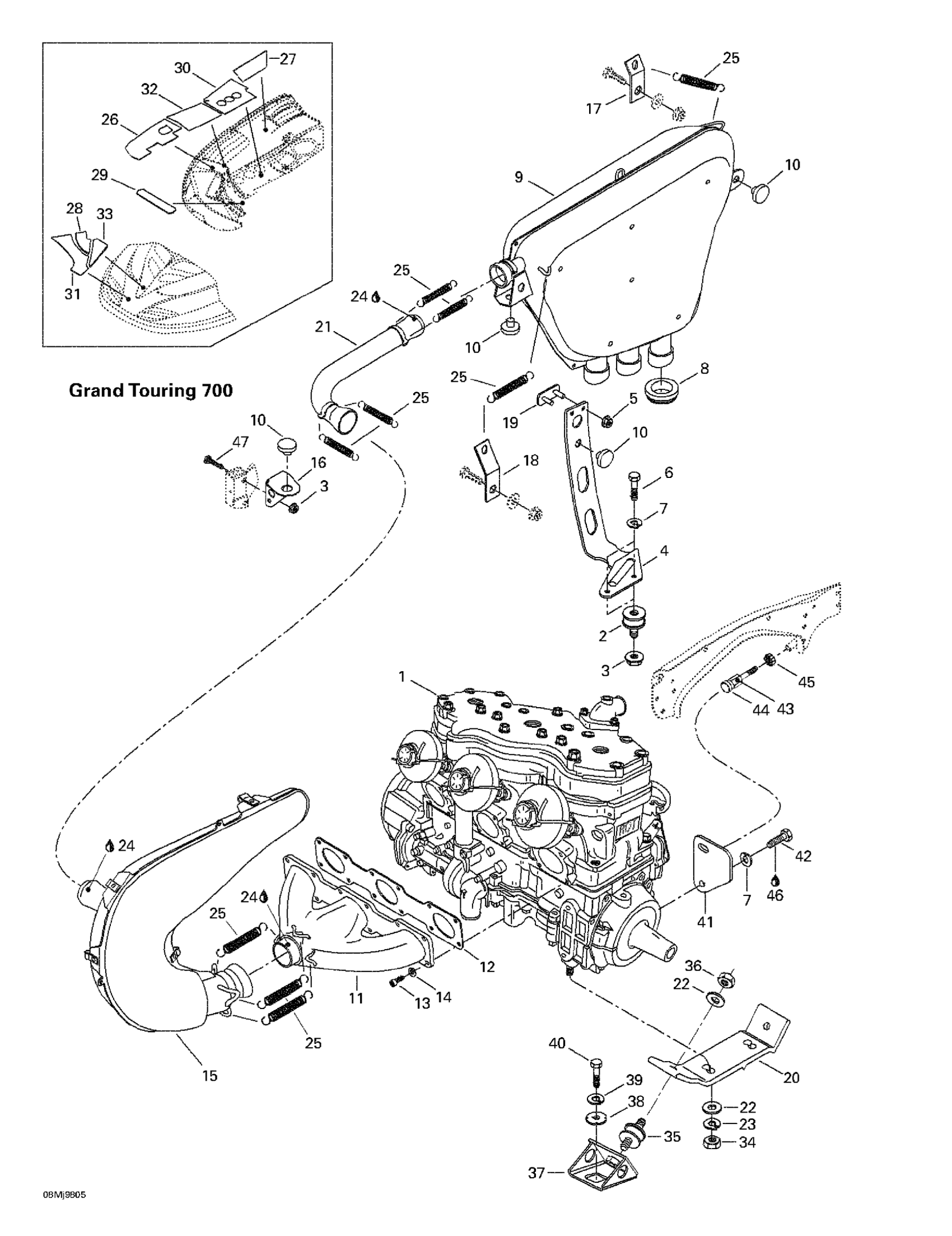

Ski-Doo Grand Touring 700, 1998 Engine Support And Muffler (Grand Touring 700) Diagram

#

Description
Price

1

Engine <<699>> | Grand Touring 700.

400603600

Unavailable

2

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Support (Muffler) | Formula III 600. Formula III 600 R. Formula III 600 LT.

514046800

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

7

Lock Washer 8 mm

234181401

Unavailable

8

Exhaust Grommet

570066200

Unavailable

9

Muffler | Formula III 700. Formula III 700 R.

514097700

Unavailable

10

Rubber Bumper

514053654

$49.20

11

Exhaust Socket | Formula III 700 R.

420979610

Unavailable

12

GASKET - Call your local BRP dealership | Formula III 700 R.

420931740

Unavailable

13

Socket Head Screw M6 X 25

205062544

$0.88

14

Lock Washer M6, Black

234161471

$0.52

15

Tuned Pipe | Formula III 700. Formula III 700 R.

514097800

Unavailable

16

Pipe Su Deg.pport

514049900

Unavailable

17

Spring Bracket

514051000

Unavailable

18

SPRING BRACKET - Call your local BRP dealership

514049700

$4.58

19

Bracket

517294300

Unavailable

20

Engine Support | Formula III 600. Formula III 600 R. Formula III 600 LT.

512056400

Unavailable

21

Tail Pipe | Formula III 700. Formula III 700 R.

514097900

Unavailable

22

Flat Washer 10 mm

234001410

Unavailable

23

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

24

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

25

Spring

415107100

$6.20

26

Reflective Sheet

514098000

Unavailable

27

RH Reflective Sheet

415083800

Unavailable

28

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

415114900

Unavailable

29

Reflective Sheet

415111900

Unavailable

30

Reflective Sheet

415115000

Unavailable

31

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

415112400

Unavailable

32

Reflective Sheet

415084000

Unavailable

33

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

34

Hex. Nut M10 X 1.5

232006414

$1.11

35

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

36

Elastic Locking Nut M10 X 1.5

233601416

$1.68

37

Engine Support

512050900

Unavailable

38

Lock Washer

512056700

Unavailable

39

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

40

Hex. Screw M10 X 25

207102544

Unavailable

41

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

42

Hex. Screw M8 x 16

207181644

$0.87

43

Stopper Screw

512056900

Unavailable

44

Stopper | Formula III 600.

570049500

Unavailable

45

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

46

Loctite 271, 10 ml

293800005

Unavailable

47

Hex. Screw M8 X 50

207085044

Unavailable
