- Grand Touring 670SE, 1996
Cab And Console 670SE

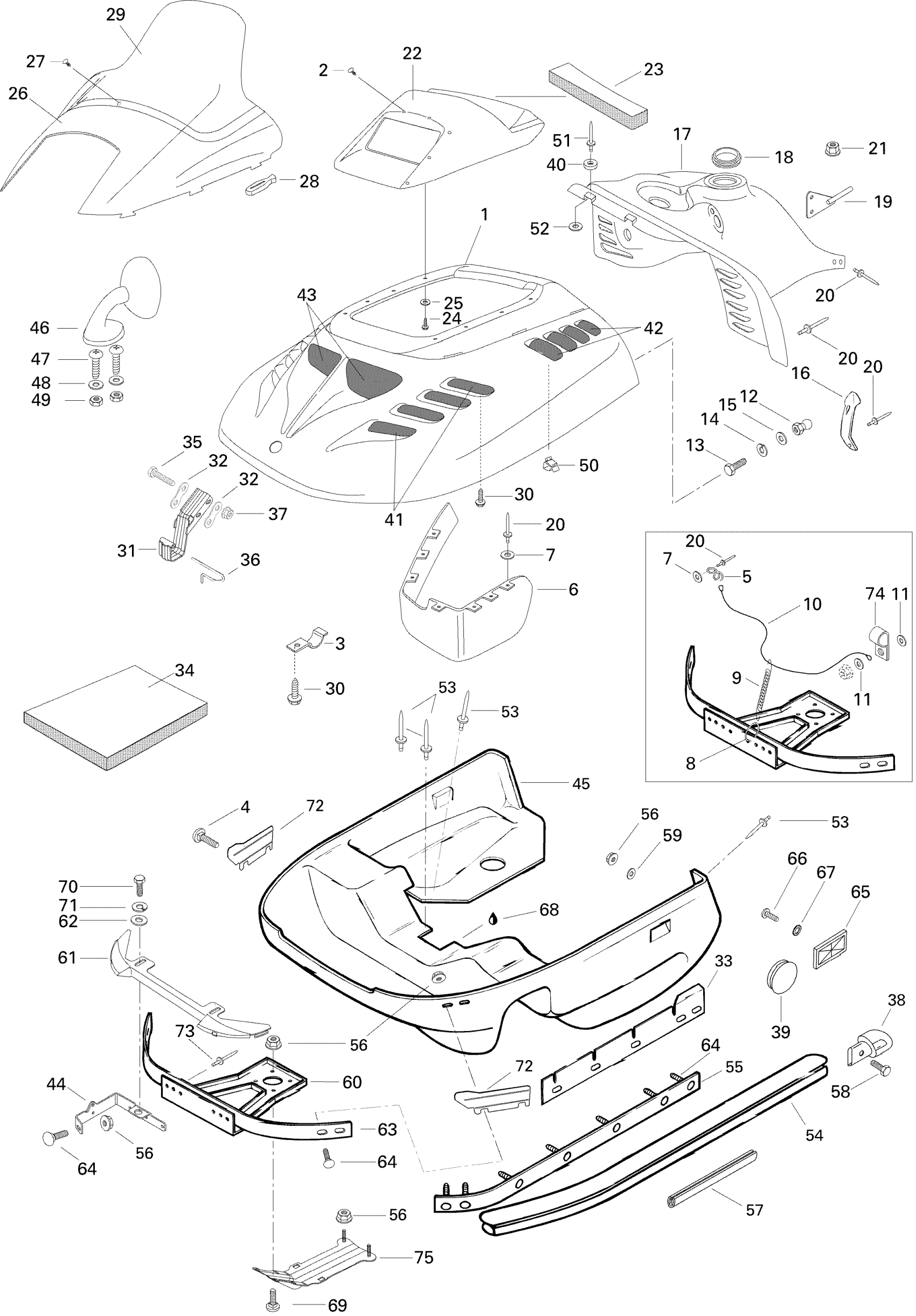

Ski-Doo Grand Touring 670SE, 1996 Cab And Console 670SE Diagram
#
1
Cab (Ocean Green)
572079321
Unavailable
3
Bracket
517274400
Unavailable
4
Carriage Bolt M6 x 20
732601214
Unavailable
5
Bracket
517262800
Unavailable
6
Air Deflector
517273400
Unavailable
7
Washer
517124300
Unavailable
9
Spring
414763300
Unavailable
10
Cab Retainer Cable
414212300
Unavailable
11
Flat Washer
224060201
Unavailable
12
Knob
517245800
Unavailable
13
Hex. Screw M5 X 14
207151444
Unavailable
14
Lock Washer 5 mm | Europe
234151401
Unavailable
15
Washer | DS 650 X
391301600
Unavailable
16
Hood Latch
570027100
Unavailable
17
Tank Cover
572075100
Unavailable
18
Rubber Ring
570276900
Unavailable
19
LH Bracket Plate
517260700
Unavailable
19
RH Bracket Plate
517260701
Unavailable
20
Pop Rivet 3/16"
390406500
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Dash
572058800
Unavailable
23
Foam
414966100
Unavailable
24
Screw-hex.taping 12
365901400
Unavailable
25
Flat Washer
224061201
Unavailable
26
Windshield Support (Smoked)
572043400
Unavailable
28
Windshield Latch
570023800
Unavailable
29
HIGH WINDSHIELD (19) - Call your local BRP dealership
414939100
Unavailable
30
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
31
Hinge
517273500
Unavailable
32
Plate
517274300
Unavailable
33
RH Cab Guide
517279500
Unavailable
33
LH Cab Guide
517279600
Unavailable
34
Acoustic Foam
414632400
Unavailable
34
Acoustic Foam
414631900
Unavailable
35
Hex. Screw M6 X 55
207065544
Unavailable
36
RH Pin
414939800
Unavailable
36
LH Pin
414939802
Unavailable
37
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
38
RH Cap
572036700
Unavailable
38
LH Cap
572036800
Unavailable
39
Pan Bottom Cap (Ocean Green)
570045104
Unavailable
41
RH Front Grille
517281000
Unavailable
41
LH Front Grille
517271400
Unavailable
42
RH Rear Grill
517284300
Unavailable
42
LH Rear Grill
517283200
Unavailable
43
Central Grille
517271700
Unavailable
44
RH Hinge Bracket
517273200
Unavailable
44
LH Hinge Bracket
517273300
Unavailable
45
Bottom Pan
572076102
Unavailable
46
Mirror Kit | Includes 46 to 49
861749300
Unavailable
46
RH MIRROR - Call your local BRP dealership
414971910
Unavailable
47
Machined Screw M4 x 16
222841665
Unavailable
48
Washer
517124300
Unavailable
51
Pop Rivet 1/8" | SM5
390401600
Unavailable
52
Flat Washer | Not shown
391300800
Unavailable
53
Pop Rivet 3/16"
390906800
Unavailable
54
Front Bumper
517243902
Unavailable
55
Strip Located
414967400
Unavailable
56
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
57
Bumper Moulding
414968500
Unavailable
58
Cap Screw
732601148
Unavailable
59
Flat Washer
224060201
Unavailable
60
Front Reinforcement
517271200
Unavailable
61
Front Moulding
572059100
Unavailable
62
Flat Washer
224061201
Unavailable
63
Hinge Bracket
517274700
Unavailable
64
Carriage Bolt M6 X 25
207762544
Unavailable
65
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
66
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
67
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
68
Not Available As Spare Part - Friction Washer
Unavailable
69
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
70
Hex. Screw M6 X 16
207161644
Unavailable
72
Front Guide R.H
517279000
Unavailable
72
Front Guide L.H
517279100
Unavailable
73
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
75
Link Plate
506123000
Unavailable
