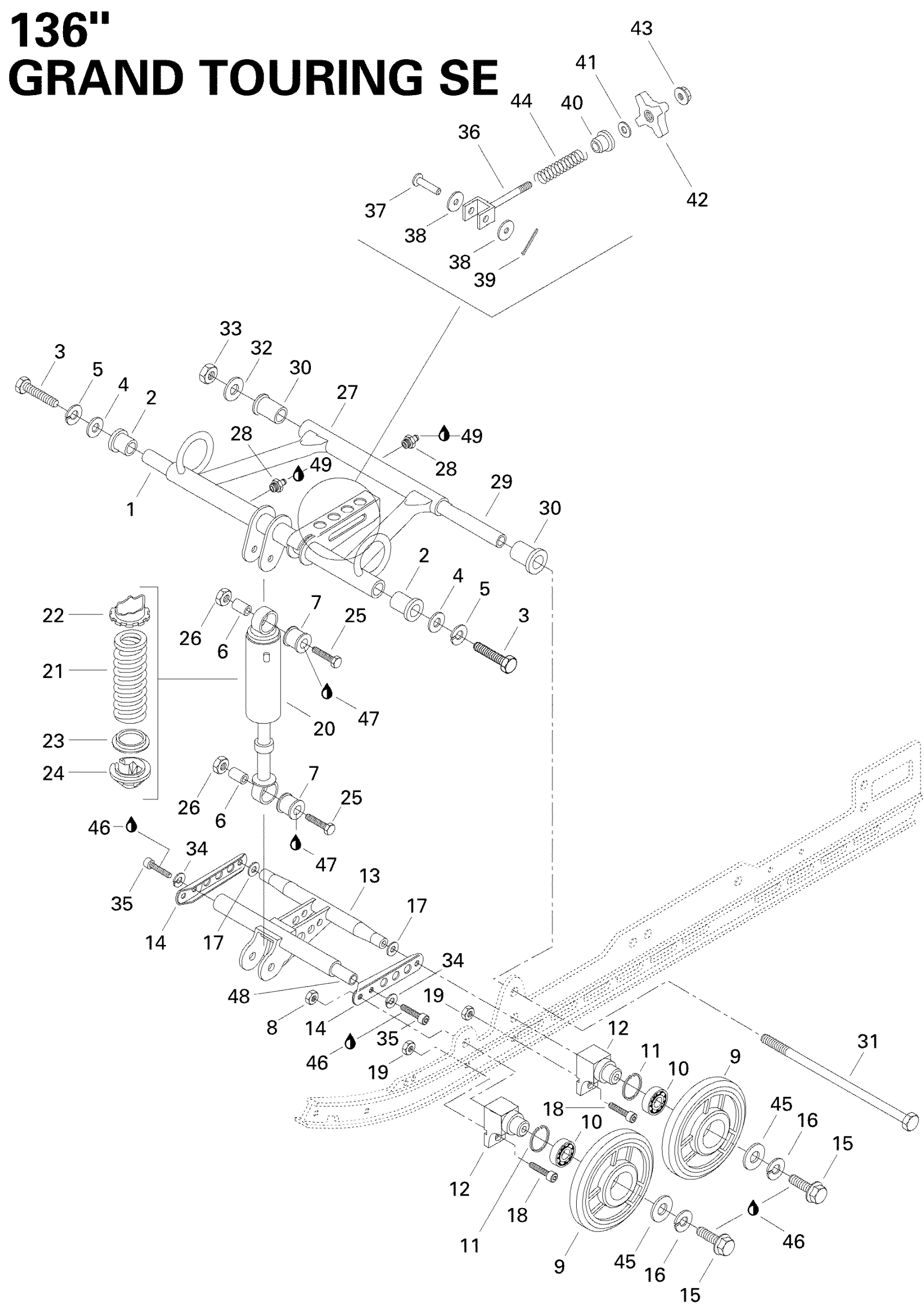

Ski-Doo Grand Touring 670SE, 1996 Front Arm 670SE Diagram

#

Description
Price

1

Upper Axle

503142100

Unavailable

2

CUSHION - Call your local BRP dealership

414530000

$6.12

3

Hex. Screw M10 X 55

207005544

$1.85

4

Flat Washer 10 mm

234001410

Unavailable

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Spacer

503163700

Unavailable

7

Cushion

414942300

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.68

9

Idler Wheel 135 (Ocean Green)

570045225

Unavailable

10

Ball Bearing

293350115

Unavailable

11

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

12

Support

503140200

Unavailable

13

Front Bracket

503163900

Unavailable

14

Retaining Plate

503149300

Unavailable

15

Hex. Screw M10 x 90 | Tundra II LT 3270. Tundra II LT 3271.

222009065

Unavailable

16

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

17

Flat Washer 10 mm

234001410

Unavailable

18

Socket Head Screw M8 X 25

205082544

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Center Shock

414927200

Unavailable

21

Spring

415013700

Unavailable

22

Adjustment Cam

505073625

Unavailable

23

Spring Guide

503191872

Unavailable

24

Spring Stopper

503149700

Unavailable

25

Hex. Screw M10 X 45

207004544

Unavailable

26

Elastic Locking Nut M10 X 1.5

233601416

$1.68

27

Front Arm

503157300

Unavailable

28

Grease Fitting

408200700

Unavailable

29

Lower Axle

503139400

Unavailable

30

Cushion

414794700

Unavailable

31

Bolt M12 | Formula Z.

503140800

Unavailable

32

Flat Washer 12 mm

234021410

$0.68

33

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Socket Screw M10 X 35

205003544

Unavailable

36

«U» Bracket

503141000

Unavailable

37

Clevis Pin

414803900

Unavailable

38

Flat Washer 10 mm

234001410

Unavailable

39

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

40

Adjuster Bushing

572043700

Unavailable

41

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

42

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

43

Elastic Flange Nut M10

232501416

Unavailable

44

Spring

414863500

Unavailable

45

Washer

503032900

$3.20

46

Loctite 271, 10 ml

293800005

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Axle

503149400

Unavailable

49

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
