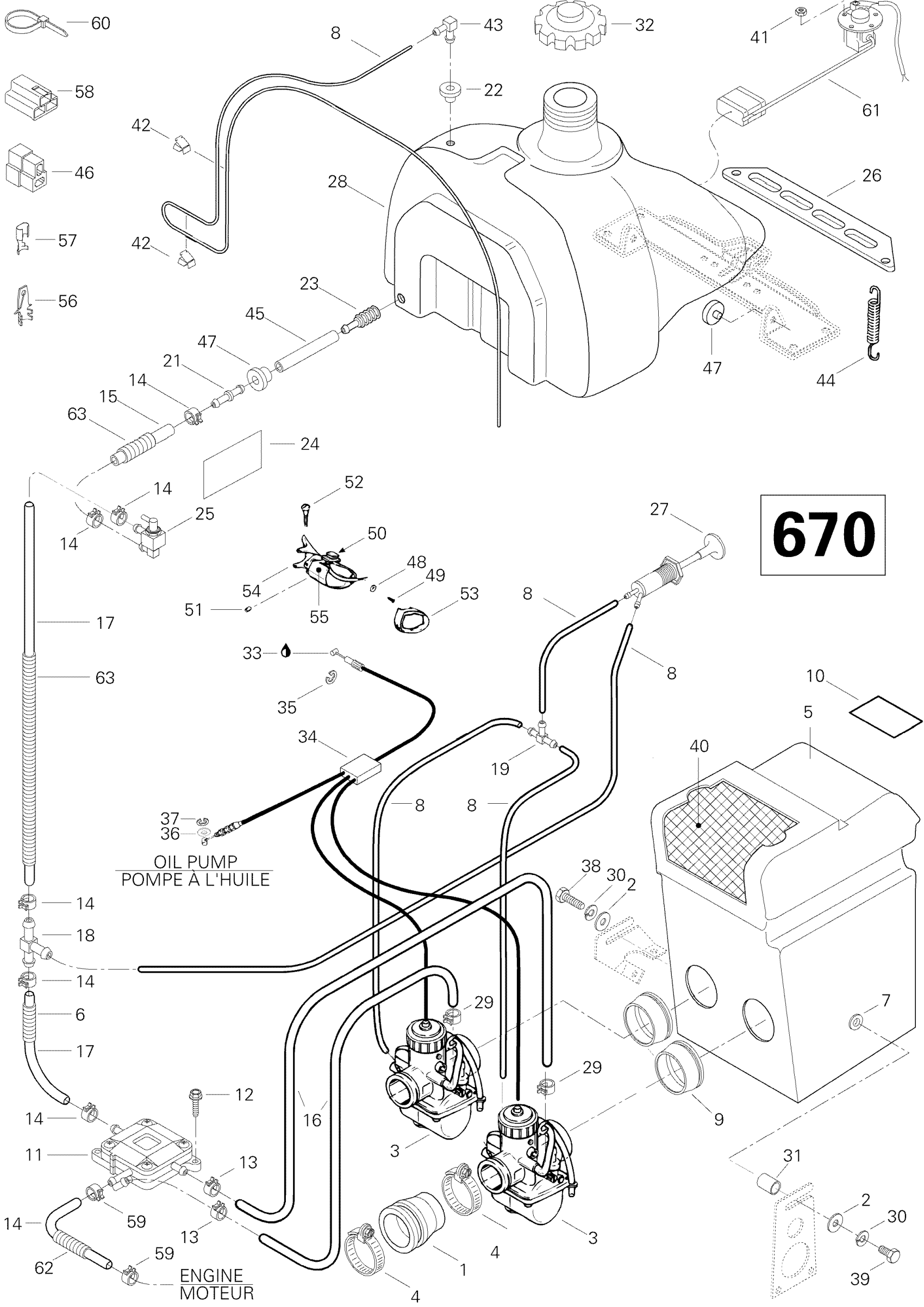

Ski-Doo Grand Touring 670SE, 1996 Fuel System 670SE Diagram

#

Description
Price

1

Rubber Flange

570029600

Unavailable

2

Flat Washer

224061121

$0.44

3

VM 40-79 Carburetor | Includes 1 to 31

403124400

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass‘y | Includes 5 to 9

580628505

Unavailable

6

Tubing

414942900

Unavailable

7

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

8

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

9

Intake Adaptor

570029800

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

12

Hexagonal Head Screw

210262050

$1.74

13

Spring Clamp

414554800

$0.83

14

Spring Clamp

414655700

Unavailable

15

Hose | Formula Z. Formula 583.

414933900

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

18

T-Fitting

415119300

Unavailable

19

T-Fitting

414222400

Unavailable

20

Hose

219704549

Unavailable

21

Male Connector

414872700

Unavailable

22

Grommet

709200285

$8.38

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

Unavailable

28

Fuel Tank

572057100

Unavailable

29

Spring Clamp

414554800

$0.83

30

Lock Washer M6, Black

234161471

$0.52

31

Spacer

517256400

Unavailable

32

Fuel Tank Cap

513033025

$19.47

33

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

34

Throttle Cable and Housing VM-40

414966701

Unavailable

35

Circlip

414274500

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Hex. Screw M6 X 25

207162544

Unavailable

39

Hex. Flange Screw M6 X 35

207063544

$1.35

40

Air Filter Foam (2 Holes Silencer)

572029007

Unavailable

41

Elastic Stop Nut M5

232551414

Unavailable

42

Clip

414227300

$1.45

43

Male Connector

414814100

$2.18

44

Spring

415107100

$6.20

45

Hose

415005700

$5.49

46

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

47

Grommet | Europe

707800347

Unavailable

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

$3.69

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

51

Socket Set Screw M8 X 10

414440800

$4.00

52

Flange Screw

732601143

$4.02

53

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

54

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

55

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

56

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

57

Female Terminal PACKARD

561503200

Unavailable

58

Female Terminal Housing (3 circuits)

409008500

Unavailable

59

Spring Clamp

414415200

$0.83

60

Tie-Rap 180 mm

414115200

$0.09

61

Fuel Level Sensor

410108400

Unavailable

62

Was 409901800 Tubing (13 mm)

219704400

Unavailable

63

Tubing 16 Mm 1000Mm Long

219704408

Unavailable
