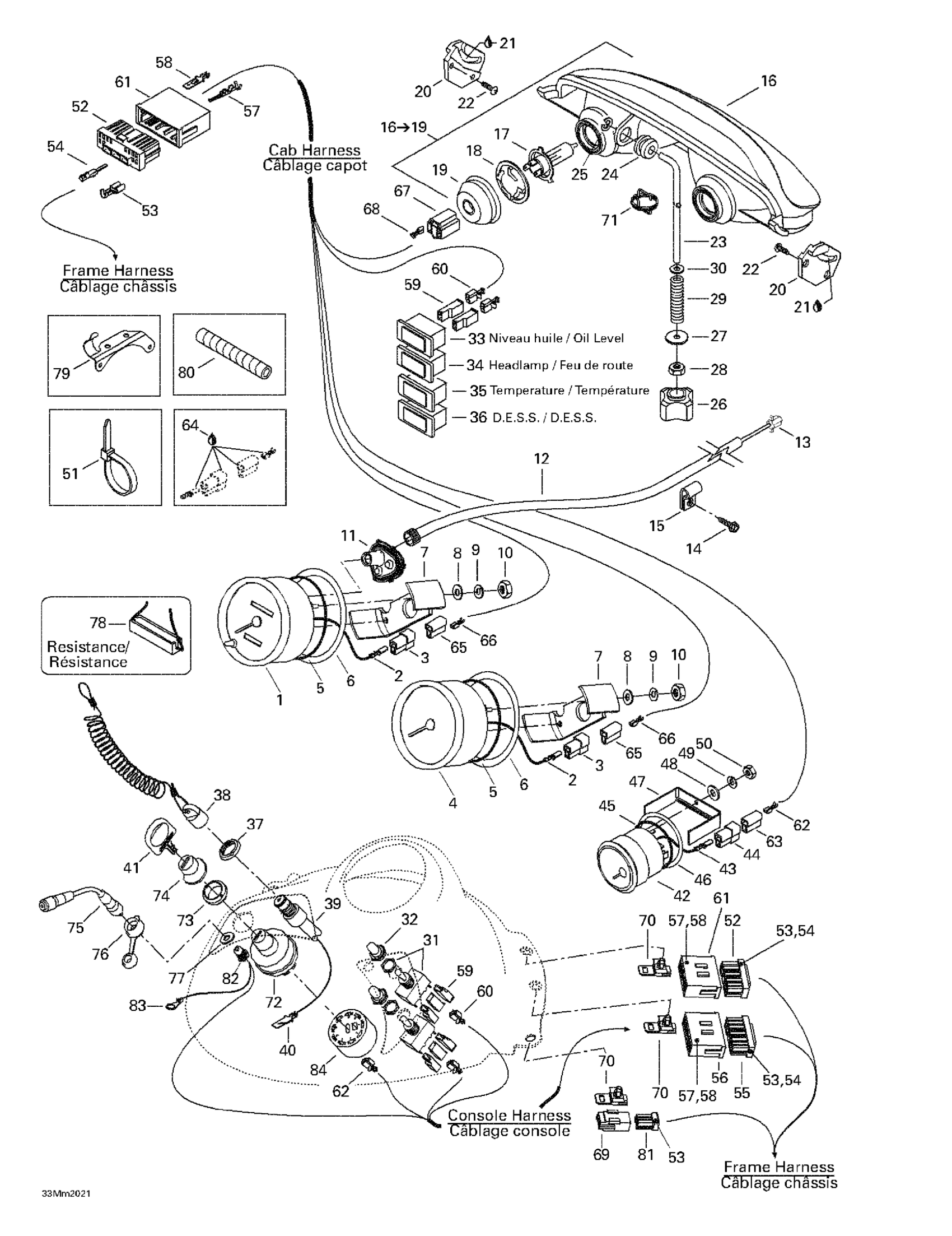

Ski-Doo Grand Touring 600, 2000 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175340

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

Flat Washer

517225900

$0.16

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.81

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

18

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Headlamp Screw

732601315

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$1.97

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

Washer

224060251

$0.55

28

Elastic Stop Nut M6

232561414

$1.78

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Flat Washer 6 mm

234061410

$1.19

31

Switch (Heating Grip) | FREERIDE

410107300

$33.55

32

Switch Cover

515175281

$14.58

33

Pilot Lamp (Red)

410109500

Unavailable

34

Pilot Lamp (Blue)

410109600

Unavailable

35

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

36

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

37

Safety Nut (DESS Switch)

278002963

$3.12

38

DESS

515178284

$79.07

39

DESS SWITCH - Call your local BRP dealership

515175145

Unavailable

40

Male Terminal

515175232

$1.45

41

Blank Key

415129350

Unavailable

42

FUEL GAUGE - Call your local BRP dealership

515175343

Unavailable

43

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

44

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

45

O-RING - Call your local BRP dealership

414807200

Unavailable

46

WASHER - Call your local BRP dealership

517258600

Unavailable

47

Case Holder

415099800

Unavailable

48

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

49

Lock Washer | SE Models

414833700

Unavailable

50

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 142 mm

293750002

$1.01

Tie-Rap 173 mm

293750009

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

52

Female Terminal Housing, 13 Circuits

515175350

$12.49

53

Female Terminal

515175231

$4.00

54

Female Terminal

515175282

$6.24

55

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

56

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

57

Male Terminal

515175232

$1.45

58

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

59

Female Terminal Housing, 1 Circuit

409010400

$7.25

60

Female Terminal

409010100

$5.30

61

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

62

Female Terminal

561503100

Unavailable

63

Female Housing

409204300

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

65

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

66

Female Terminal

561503100

Unavailable

67

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

68

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

69

Male Housing, 3 Circuits

515175494

$14.90

70

Housing Support

515175283

$8.18

71

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

72

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

73

FACE NUT - Call your local BRP dealership

410112100

Unavailable

74

Switch Boot

570013700

$10.49

75

EXTENSION - Call your local BRP dealership

515175971

Unavailable

76

Cap

572103300

$9.36

77

Washer

503175800

$3.16

78

Resistance

515175241

$16.39

79

Cable Support

515175254

Unavailable

80

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

81

Female Housing, 3 Circuits

515175495

$14.90

82

Not Available As Spare Part - Friction Washer

Unavailable

83

Not Available As Spare Part - Friction Washer

Unavailable

84

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable
