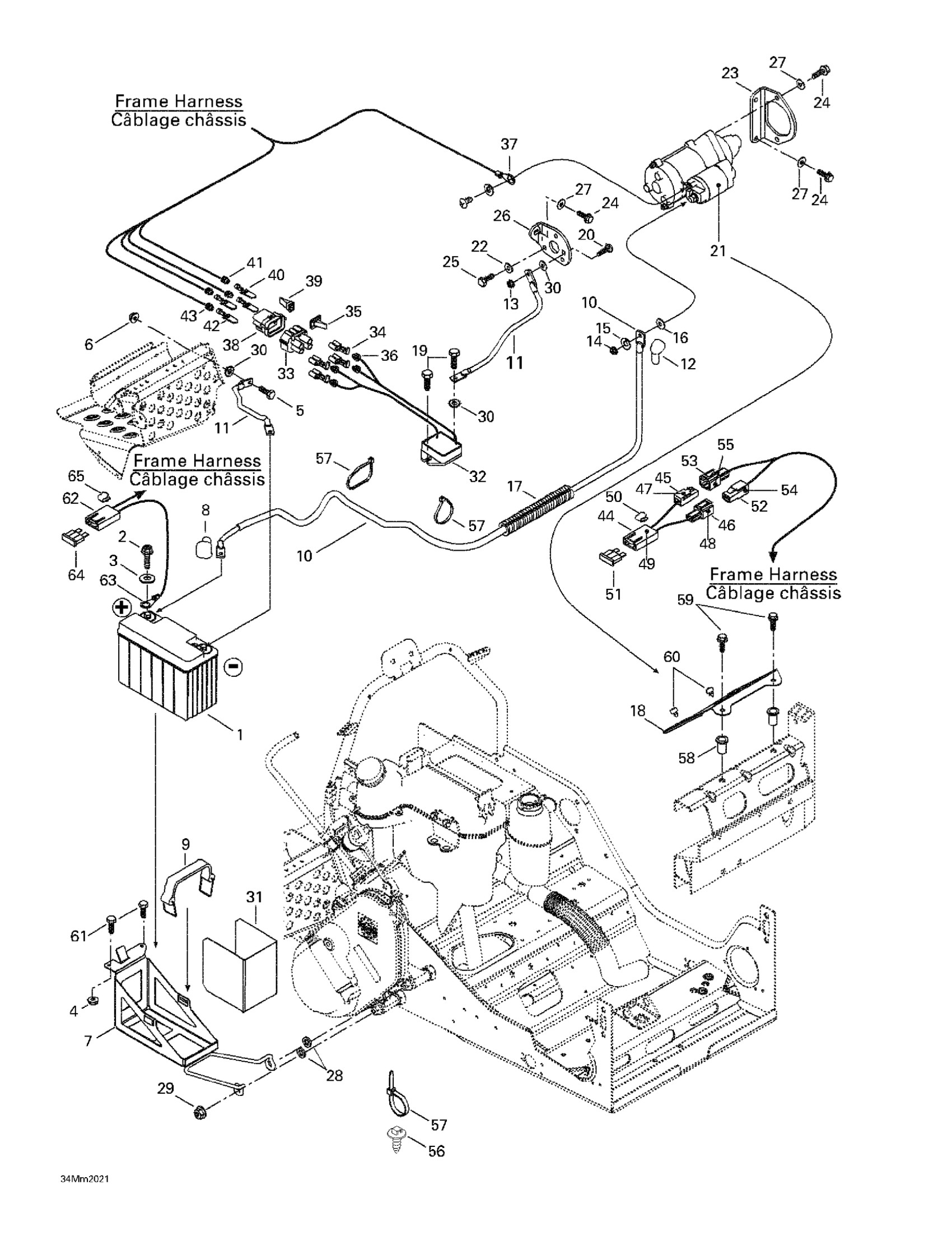

Ski-Doo Grand Touring 600, 2000 Battery And Starter Diagram

#

Description
Price

1

BATTERY - Call your local BRP dealership | Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.

515175481

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Hex. Flange Elastic Nut M5

233251414

Unavailable

5

Hex. Screw M6 X 16

207161644

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Battery Support | Formula Deluxe 500. Formula Deluxe 600.

515175472

Unavailable

8

Protection Cap

570151000

$18.43

9

Battery Strap

515176044

Unavailable

10

Battery Wire

515175482

Unavailable

11

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

12

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Nut M8

232081414

Unavailable

15

Lock Washer 8 mm

234181401

Unavailable

16

Flat Washer 8 mm

234081410

Unavailable

17

Was 409901700 Tubing (9 mm)

219704399

Unavailable

18

Protector

515175536

Unavailable

19

Hex. Flange Screw M6 X 16

210261650

$1.22

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

21

Starter | Includes 1 - 18.

515175438

Unavailable

22

Flat Washer 6 mm

234061410

Unavailable

23

Starter Bracket (PTO) | Skandic 600.

515175142

Unavailable

24

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

25

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

26

Starter Bracket (MAG) | Skandic 600.

515175441

Unavailable

27

Flat Washer With Teflon 8 mm

250200008

Unavailable

28

Washer

503175800

$3.26

29

Hex. Flange Elastic Nut M10

233201414

$1.26

30

Lock Washer Serrated M6

250200041

Unavailable

31

Deflector | Formula Deluxe 500. Formula Deluxe 600.

515175363

Unavailable

32

Voltage Regulator | Includes 1 - 5.

515175217

Unavailable

33

Female Terminal Housing (4 circuits)

409208000

Unavailable

34

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

35

Female Lock

409013400

Unavailable

36

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

37

Ring Terminal

515175504

Unavailable

38

Male Terminal Housing (4 circuits)

409207700

Unavailable

39

Male Lock

409013100

Unavailable

40

Male Terminal

409010900

Unavailable

41

Seal

409208300

Unavailable

42

Male Terminal

409013000

Unavailable

43

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

44

Fuse Holder

409004000

Unavailable

45

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

46

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

47

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

48

Female Terminal

515175282

$6.43

49

Female Terminal

409011600

$5.11

50

CLIP - Call your local BRP dealership

409014200

$4.23

51

Fuse, 20 Amperes

409003900

$3.22

52

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

53

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

54

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

55

Female Terminal

515175282

$6.43

56

Mount Dart

293730040

$0.86

57

Tie-Rap 180 mm

414115200

$0.09

58

Insert

293450275

Unavailable

59

Hex. Flange Screw M6 X 16

207661644

Unavailable

60

Rubber Bumper

293830005

$5.33

61

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

62

Not Available As Spare Part - Friction Washer

Unavailable

62

Fuse Holder

409004000

Unavailable

63

Open Barrel

278000992

$1.79

64

Fuse, 30 Amperes

410917200

$3.22

65

CLIP - Call your local BRP dealership

409014200

$4.23
