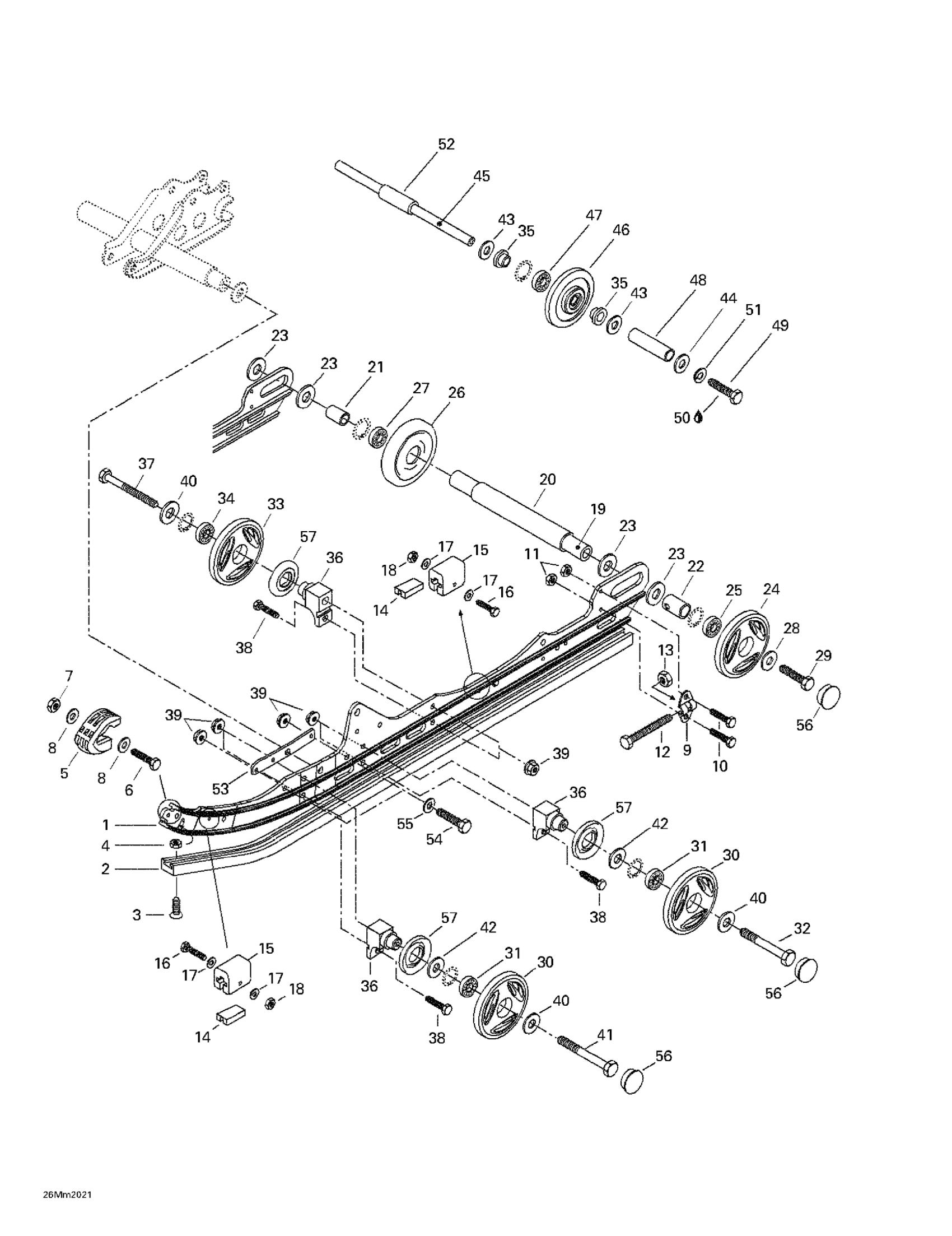

Ski-Doo Grand Touring 600, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner

503188979

Unavailable

2

RUNNER SHOE - Call your local BRP dealership

560103500

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Tensioner

503155300

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Reinforcement Stopper

572084800

$5.25

15

Rubber Stopper

570063000

Unavailable

16

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Elastic Stop Nut M5

232551414

Unavailable

19

Rear Axle

503167900

$129.20

20

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

21

Inner Spacer

503182900

$10.18

22

Outer Spacer

503189809

$15.35

23

Washer

503180400

$3.37

24

Wheel 165 (Black) | Includes 19 - 20.

503189475

Unavailable

25

Ball Bearing

293350115

Unavailable

26

Wheel 165" | Includes 670 to 670b

503194127

$49.97

27

Ball Bearing

293350115

Unavailable

28

Washer

503183300

$5.68

29

Hex. Screw With Nylon

250000019

Unavailable

30

Wheel 139 | Includes 30 - 31.

503188944

Unavailable

31

Ball Bearing

293350115

Unavailable

32

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

33

Wheel 139 mm Ass'y

503190798

Unavailable

34

Ball Bearing

293350115

Unavailable

35

Cushion

503189534

Unavailable

36

SUPPORT - Call your local BRP dealership

503190389

Unavailable

37

Hex. Screw M8 X 80

207088044

Unavailable

38

Hex. Screw M8 X 25

207182544

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Washer

503183100

$3.08

41

Hex. Screw M8 X 90

207089044

$2.82

42

WASHER - Call your local BRP dealership

503173700

Unavailable

43

WASHER - Call your local BRP dealership

503154000

$4.20

44

Flat Washer 8 mm

234081410

Unavailable

45

Wheel Support Axle

503160000

Unavailable

46

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

47

Ball Bearing

293350115

Unavailable

48

External Spacer

503188951

Unavailable

49

Hex. Screw M8 X 30

207183044

Unavailable

50

Loctite 243, 10 ml

293800060

$20.77

51

Lock Washer 8 mm

234181401

Unavailable

52

Spacer

503153100

Unavailable

53

Reinforcement Plate

503189060

Unavailable

54

Hex. Screw M8 X 30

207183044

Unavailable

55

Flat Washer 8 mm

234081410

Unavailable

56

Wheel Cap

570063600

Unavailable

57

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
